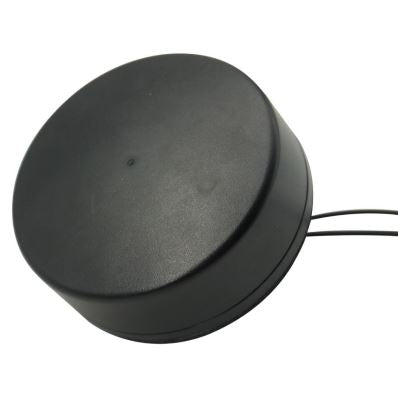

W4165: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector

  • $66.22
    Unit price per

W4165


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $63.06
25 $58.43
100 $55.96
250 $53.33
500 $52.62
Lead time:  Ships in 10-12 Weeks

W4165: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector

W4165: Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector

More InfoSpecifications Reviews

Outdoor Multi Band Antenna 824-960/1710-2170 MHz 3G/GPRS/GSM + GNSS IP67 with Direct Mount and SMA Male connector


More Information

Features:

• 3G antenna:

• 824-960/1710-2170MHz

• Active GNSS antenna:

• Beidou, GPS, Galileo, Glonass

• LNA Gain 30dB • Pre and post LNA filtering

• RoHS Compliant

• Diameter 100mm

• IP67

Applications:

• Vehicular use

• Utility boxes

• Smart metering

• Navigation, Fleet Management, Tracking


Specifications

SKU W4165
Manufacturer Part Number W4165
Manufacturer Pulse
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Right Hand Circular
SISO or MIMO SISO
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
