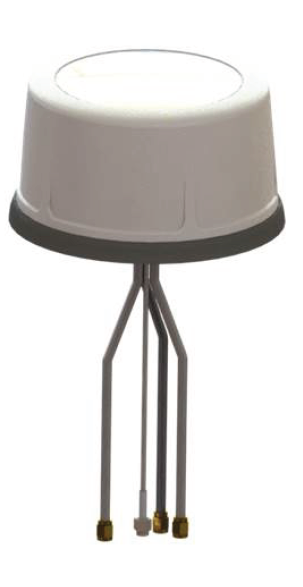

VLQ69273W21G-518A: White 4-in-1 Vehicular antenna, with one GPS port, one WiFi port, and two 3G/4G cellular ports-GPS & Cellular have SMA Male connectors and WIFI has RPSMA Male
VLQ69273W21G-518A
VLQ69273W21G-518A: White 4-in-1 Vehicular antenna, with one GPS port, one WiFi port, and two 3G/4G cellular ports-GPS & Cellular have SMA Male connectors and WIFI has RPSMA Male
More InfoDocumentsSpecifications ReviewsWhite 4-in-1 antennas, they have one GPS port, one WiFi port, and two 3G/4G cellular ports-GPS & Cellular have SMA Male connectors and WIFI has RPSMA Male.
The Laird vehicular 4-port MIMO antenna covers the 698-960 / 1710-2700 MHz, 2300-2700 / 4900-5900 MHz as well as GPS (1575.42 MHz) frequency ranges. Configured with 3-port, dual-band elements in addition to 1-port with integrated GPS
***This item is subject to an MOQ of 3 pcs***
More Information
VLQ69273W21G-518A White 4-in-1 antennas, they have one GPS port, one WiFi port, and two 3G/4G cellular ports-GPS & Cellular have SMA Male connectors and WIFI has RPSMA Male.
The Laird vehicular 4-port MIMO antenna covers the 698-960 / 1710-2700 MHz, 2300-2700 / 4900-5900 MHz as well as GPS (1575.42 MHz) frequency ranges. Configured with 3-port, dual-band elements in addition to 1-port with integrated GPS
Features:
- Frequency (Gain): 698-960 MHz (3.3 dBi) / 1710-2700 MHz (4.6 dBi) / 2300-2700 MHz (5.5 dBi) / 4900-5900 MHz (5.3 dBi) / 1575.42 MHz (GPS)
- VSWR Max: < 2.0: 1
- Polarization: Vertical Linear
- Connector: SMA-Male (3G/4G LTE and GPS port) RPSMA-Male (WiFi port)
- Cable (Exposed Lenght) : For WIFI and Cellualr= LMR195M- 518.2 cm (17 ft) / For GPS= RG174-518.2 cm (17ft)
- Radome / Baseplate Material: PC, UL94 - V0 Rating, UV Stable (White)
Documents
We Also Recommend
Specifications
| SKU | VLQ69273W21G518A |
|---|---|
| Manufacturer Part Number | VLQ69273W21G-518A |
| Manufacturer | Laird |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 MHz |
| Gain | 3.3 dBi |
| Working Frequency 2 | 1710-2700 MHz |
| Gain 2 | 4.6 dBi |
| Working Frequency 3 | 2300-2700 MHz |
| Gain 3 | 5.5 dBi |
| Working Frequency 4 | 4900-5900 MHz |
| Gain 4 | 5.5 dBi |
| Working Frequency 5 | 1575.42 MHz (GPS L1) |
| Antenna Style | Vehicular 4-in-1 |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 50 W |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 2.9 |
| Height/Length (mm) | 75 |
| Thickness/Diameter (inches) | 5.2 |
| Thickness/Diameter (mm) | 132 |
| Weight (lbs) | 2.09 |
| Weight (grams) | 0.95 |
| Material | PC, UL94 - V0 Rating, UV Stable |
| Operating Temp (celsius) | -30 to +70 C |
| Color | White |
| Connector 1 | RP SMA-Male |
| Connector 2 | SMA-Male |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Product Condition | New |
