Vehicular Antenna for NTC-140W NetComm Wireless Router White
NTC-140W-G44WW-W
Vehicular Antenna for NTC-140W NetComm Wireless Router White
More InfoSpecifications ReviewsThe RFMAX NTC-140W-G44WW-W is a versatile 5-in-1 roof mount vehicular antenna with (1) GPS element + (2) 3G/4G/LTE & (2) WiFi/WLAN elements for enhanced cellular & WiFi MiMo performance. This rugged, low profile antenna is optimized for use with today's high data-rate NetComm Wireless NTC-140W cellular modem/router.
This vehicular modem antenna is ideal for utility trucks and vans (electric, gas, water, cable) or for Police, Ambulance, Fire and other public safety vehicles transmitting video and other mission critical information through the LTE channels while also accessing GPS enabled services. Includes stainless steel stud for through-roof or trunk mounting or use G44-HDMM for magnetic mounting (sold separately)
*Modem not included
More Information
The RFMAX NTC-140W-G44WW-W is a five-in-one GPS+MiMo 3G/4G/LTE Celllular + MiMo 2.4/5GHz WiFi antenna designed and built specifcally to work with NetComm Wireless NTC-140W modems/gateways/routers. This antennas offers vehicular thru-roof or trunk mounting or optional magnetic mounting kit (part # G44-HDMM.) This is a high-performance unit at an economical price vs. it's competitors: Panorama, TaoGlas, Mobile Mark, PCTEL & Antenna Plus.
The NTC-140W-G44WW-W is an ultra-rugged, high-performance, aesthetically pleasing 5-in1 vehicular antenna solution that ombines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring the highest cellular & WiFi data rates possible. NTC-140W-G44WW-W is a versatile antenna for modern technology-equipped Public Safety vehicles: Police, Fire, EMS as well as Utility vehicles (cable company, phone company, power company) and is well-suited for transmitting GPS maps, work orders, camera video, or mission critical information through the LTE channels. Global positioning capability is supported via the integrated GNSS antenna which covers both the traditional GPS and the Russian Glonass satellite systems.
*Modem not included
Features
- Two ports of 3G/4G/LTE Cellular: 698-960/1695-2170/2300-2700/2900-3600 Mhz with SMA-Male Connectors
- Two ports of 2.4 & 5 GHz High Speed WiFi with RP SMA-Male Connectors
- One port of GPS / Glonass:1575.42-1609 MHz with SMA-Male Connector.
- Direct Mount stainless steel stud, washer & M22 split nut
- Optional magnetic mount (see part # G44-HDMM)
- Humidity Rating: 95%RH @ +25c for 12h and 55c for 12h
- Vibration Rating: MIL-STD 810G, section 514.6 5-500 Hz, 60min/axis
- Thermal Shock Rating: MIL-STD 810G, section 503.5 -40 to +85c, 3 cycles
- Drop Test: Minimum of one drop per axis – 4 drops from 1 meter
- FIVE Year RFMAX Warranty
Applications
- Energy / Utility Vehicles (phone company, water, electric, gas, cable TV)
- Public Safety / First Responders (Ambulance, Fire, Police)
- Fleet Management & Taxi Cabs
- Location Based Services & Fixed Site Telematics

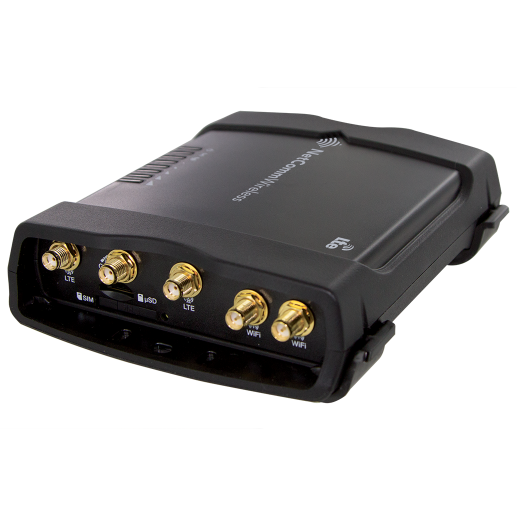

- Pre-tested for use with NetComm Wireless NTC-140W
Specifications
SKU | NTC140WG44WWW |
---|---|
Manufacturer Part Number | NTC-140W-G44WW-W |
Manufacturer | RFMAX |
Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
Working Frequency | 698-2700 MHz 3G/4G/LTE |
Gain | 4-5 dBi |
Working Frequency 2 | 2400-2500 / 4900-5900 MHz WiFi / WLAN |
Gain 2 | 4.5 - 5 dBi |
Working Frequency 3 | 15.75.42 - 1609 MHz (GPS/Glonass) |
Gain 3 | 31 dBi (active) at 3 or 5V |
Antenna Style | "Legacy" Multi-Element Antenna |
Polarity | Vertical |
Bands | Multi |
SISO or MIMO | MIMO |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohms |
Max Input Power (W) | 20 Watts |
VSWR: < X: 1 | <1.7 |
Horizontal/Azimuth Beamwidth | 360 |
Height/Length (inches) | 6.5 in. long |
Height/Length (mm) | 165 mm long |
Width (inches) | 6 in. wide |
Width (mm) | 152 mm wide |
Thickness/Diameter (inches) | 3 in. thick |
Thickness/Diameter (mm) | 76 mm thick |
Weight (lbs) | 2.07 lbs |
Weight (grams) | 940 grams |
Material | ABS Plastic / Polycarbonate |
Operating Temp (celsius) | MIL-STD 810G -40 to +85 C |
Mount Style | Through hole / direct roof mount (use 7/8" hole) |
Color | White |
Connector Type | Cable - Bottom Entry |
Number of Cables | 5 |
Cable Length (inches) | 17 feet / 204 inches |
Cable Length (mm) | 5.18 meters / 5182 mm |
Connector 1 | SMA-Male |
Connector 2 | SMA-Male |
Connector 3 | SMA Male |
Use With Router | NetCommWireless NTC-140W |
Includes | Rubber Gasket, Lock Washer & Split Hex Nut |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Accessory 1 | Use With Magnetic Mounting Kit |
Product Condition | New |
