Vehicular Antenna for E220 Maestro Modem Router

  • $275.00
    Unit price per


0 in stock. Subject to factory lead time
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

Vehicular Antenna for E220 Maestro Modem Router

More InfoSpecifications Reviews

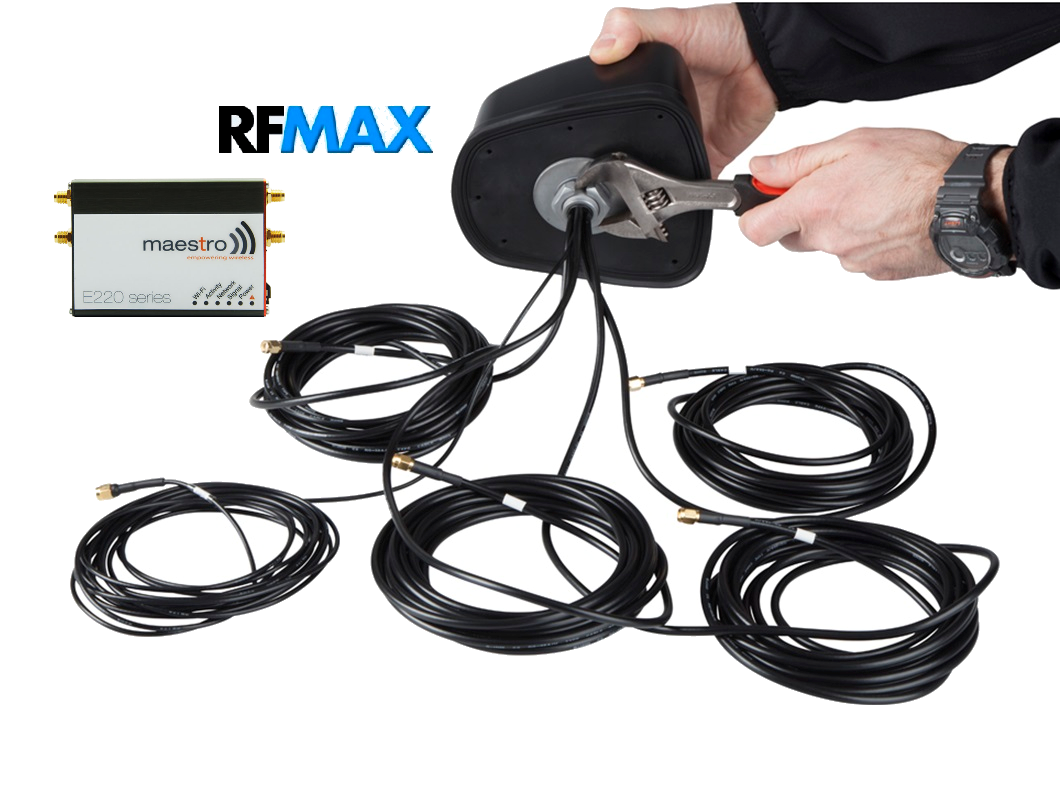

The RFMAX E220-G44WW-B is a versatile 5-in-1 roof mount vehicular antenna with (1) GPS element + (2) 3G/4G/LTE & (2) WiFi/WLAN elements for enhanced cellular & WiFi MiMo performance. This rugged, low profile antenna is optimized for use with today's high data-rate Maestro E220 cellular modem/router.

This vehicular modem antenna is ideal for utility trucks and vans (electric, gas, water, cable) or for Police, Ambulance, Fire and other public safety vehicles transmitting video and other mission critical information through the LTE channels while also accessing GPS enabled services. Includes stainless steel stud for through-roof or trunk mounting or use G44-HDMM for magnetic mounting (sold separately)

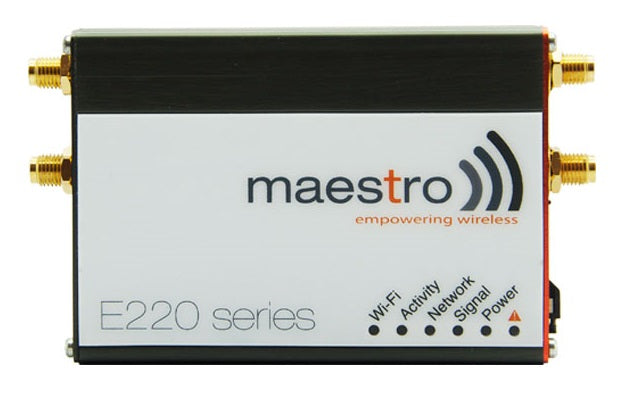

*Modem not included

More Information

The RFMAX E220-G44WW-B is a five-in-one GPS+MiMo 3G/4G/LTE Celllular + MiMo 2.4/5GHz WiFi  antenna designed and built specifcally to work with Maestro E220 modems/gateways/routers. This antennas offers vehicular thru-roof or trunk mounting or optional magnetic mounting kit (part # G44-HDMM.) This is a high-performance unit at an economical price vs. it's competitors: Panorama, TaoGlas, Mobile Mark, PCTEL & Antenna Plus.

The E220-G44WW-B is an ultra-rugged, high-performance, aesthetically pleasing 5-in1 vehicular antenna solution that ombines ideal radiation performance for today’s demanding propagation environments with optimum isolation characteristics ensuring the highest cellular & WiFi data rates possible. E220-G44WW-B is a versatile antenna for modern technology-equipped Public Safety vehicles: Police, Fire, EMS as well as Utility vehicles (cable company, phone company, power company) and is well-suited for transmitting GPS maps, work orders, camera video, or mission critical information through the LTE channels. Global positioning capability is supported via the integrated GNSS antenna which covers both the traditional GPS and the Russian Glonass satellite systems.

*Modem not included


  • Two ports of 3G/4G/LTE Cellular: 698-960/1695-2170/2300-2700/2900-3600 Mhz with SMA-Male Connectors
  • Two ports of 2.4 & 5 GHz High Speed WiFi with RP SMA-Male Connectors
  • One port of GPS / Glonass:1575.42-1609 MHz with SMA-Male Connector.
  • Direct Mount stainless steel stud, washer & M22 split nut
  • Optional magnetic mount (see part # G44-HDMM)
  • Humidity Rating: 95%RH @ +25c for 12h and 55c for 12h
  • Vibration Rating: MIL-STD 810G, section 514.6  5-500 Hz, 60min/axis
  • Thermal Shock Rating: MIL-STD 810G, section 503.5  -40 to +85c, 3 cycles
  • Drop Test: Minimum of one drop per axis – 4 drops from 1 meter
  • FIVE Year RFMAX Warranty


  • Energy / Utility Vehicles (phone company, water, electric, gas, cable TV)
  • Public Safety / First Responders (Ambulance, Fire, Police)
  • Fleet Management & Taxi Cabs
  • Location Based Services & Fixed Site Telematics
  • Pre-tested for use with Maestro E220


Manufacturer Part Number E220-G44WW-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-2700 MHz 3G/4G/LTE
Gain 4-5 dBi
Working Frequency 2 2400-2500 / 4900-5900 MHz WiFi / WLAN
Gain 2 4.5 - 5 dBi
Working Frequency 3 15.75.42 - 1609 MHz (GPS/Glonass)
Gain 3 31 dBi (active) at 3 or 5V
Antenna Style "Legacy" Multi-Element Antenna
Polarity Vertical
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 20 Watts
VSWR: < X: 1 <1.7
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 6.5 in. long
Height/Length (mm) 165 mm long
Width (inches) 6 in. wide
Width (mm) 152 mm wide
Thickness/Diameter (inches) 3 in. thick
Thickness/Diameter (mm) 76 mm thick
Weight (lbs) 2.07 lbs
Weight (grams) 940 grams
Material ABS Plastic / Polycarbonate
Operating Temp (celsius) MIL-STD 810G -40 to +85 C
Mount Style Through hole / direct roof mount (use 7/8" hole)
Color Black
Connector Type Cable - Bottom Entry
Number of Cables 5
Cable Length (inches) 17 feet / 204 inches
Cable Length (mm) 5.18 meters / 5182 mm
Connector 1 SMA-Male
Connector 2 SMA-Male
Connector 3 SMA Male
Use With Router Maestro E220
Includes Rubber Gasket, Lock Washer & Split Hex Nut
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Accessory 1 Use With Magnetic Mounting Kit
Product Condition New
