TRAB8903 | Phantom Omni Antenna- 890-960 MHz - NMO - Ground Plane Reqd

  • $56.68
    Unit price per

TRAB8903


18 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $55.77
100 $52.29
250 $49.21
500 $45.85
Lead time for qty above 18:  Ships in 8-10 Weeks

Shipping calculated at checkout.

TRAB8903 | Phantom Omni Antenna- 890-960 MHz - NMO - Ground Plane Reqd

More InfoDocumentsSpecifications Reviews

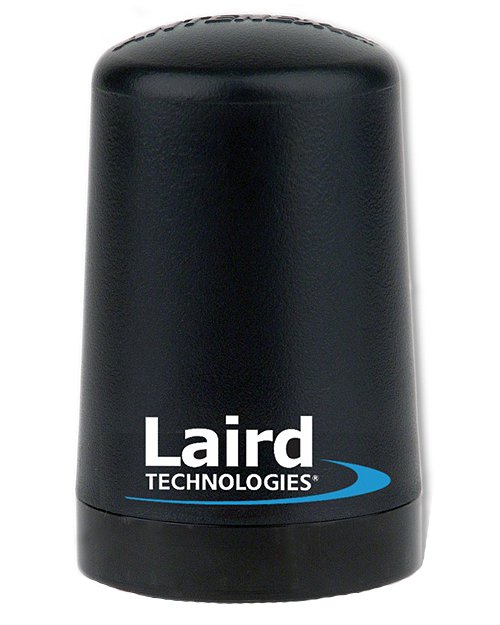

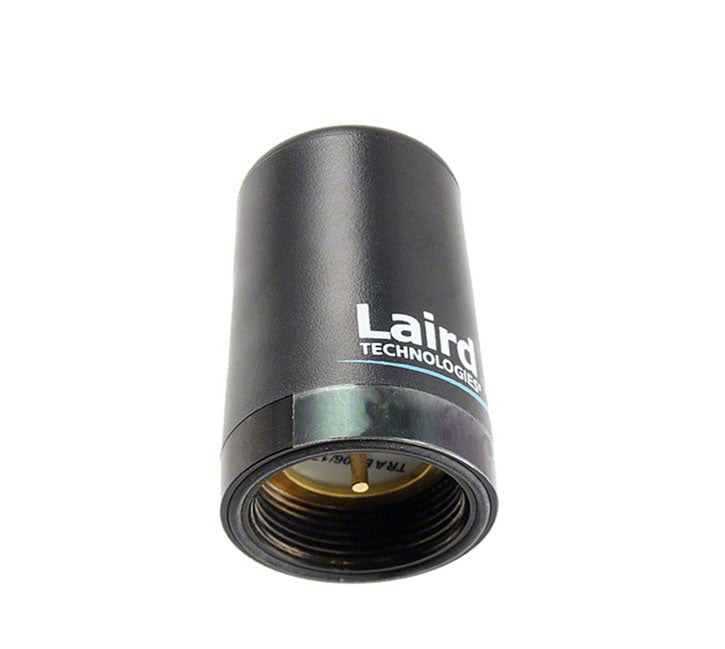

This unit is a Black 'Phantom' style Omni-directional antenna with NMO-mobile mount operating at 890-960 MHz range. This antenna offers a powerful punch with up to 3 dBi of gain. Please note that this model REQUIRES mounting on metallic ground plane for best performance. The Phantom series offers ultra-rugged ABS construction which is virtually indestructible, and has a proven track record for holding up in the field for many years in any conditions. Cable kits and mounting hardware for this antenna can be purchased separately.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.



More Information

The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

  • Whipless Design: The patented whipless design of the Laird / Antenex Phantom antenna allows your fleet to pass through car washes without removing the antenna. Using a low profile, shot-glass or salt shaker design means they don't look like traditional antennas. So, they attract less attention, are subject to less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by low hanging trees, garages or other obstructions.

  • Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments.

  • Mounting: The Phantom Antenna series is available in several different versions within each frequency range. These versions include: Standard NMO mount or N-Female / permanent mount (metallic ground plane IS required) as well as NMO mount or N-Female / permanent mount with NGP option (where NO metallic ground plane is required) We strongly suggest using the N-Female P/ Permanent models for high risk applications such as digital signage, free-standing kiosks and automated meter reading DCU data collection units where antennas must resist vandalism.

    • TRAxxxx (no suffix) = Standard NMO version, metallic ground plane IS required
    • TRAxxxxN = NMO mount, No metallic ground plane required
    • TRAxxxxP = Permanent/N-Female version, metallic ground plane IS required
    • TRAxxxxNP = Permanent/N-Female version, No metallic ground plane required

    True Field Diversity design ensures uninterrupted transmissions in urban canyons and rural drop off areas

    The Laird Phantom® outperforms most typical 3dB whips in many applications

    U.S. Patent Nos. 5,977,931 – 6,292,156 and 7,209,096

    diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

    Threaded stud mount for vandal resistant mounting on brackets, panels, ceilings or any other kind of housing. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required.

    • Whipless Design: The patented whipless design of our Phantom antenna allows car washes without removing the antenna. Whipless means they don't look like antennas, attract less attention, less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by trees, garages or other obstructions.

    • Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments. Permanent

    • Mounting: Permanent mount versions of the UHF and higher frequency models are available for high risk applications such as metering where antennas must resist vandalism and achieve economical mounting.

    • Versatile: Excellent for voice or telemetry applications.

    True Field Diversity design ensures uninterrupted transmissions in urban canyons and rural drop off areas

    The Laird Phantom® outperforms a 3dB whip in many applications

    U.S. Patent Nos. 5,977,931 – 6,292,156 and 7,209,096


Documents


Specifications

SKU TRAB8903
Manufacturer Part Number TRAB8903
Manufacturer Laird
Antenna Category 900 MHz
Working Frequency 890-960 MHz
Gain 3 db M.E.G.
Antenna Style Low Profile Antenna
Polarity Dual Polarity
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 150 Watts
Horizontal/Azimuth Beamwidth 360
Vertical/Elevation Beamwidth 146
Height/Length (inches) 2.75 Inches
Height/Length (mm) 70 mm
Width (inches) 1.44
Width (mm) 36.5
Weight (lbs) 0.35
Weight (grams) 159.1
Operating Temp (celsius) (-40 C) to 85 C
Mount Style NMO-mobile mount
Color Black
Connector Type Connector - Bottom
Connector 1 NMO
Includes O-Ring
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
