ROSA-698/2700-SNF: RFMAX Outdoor Omni-Directional Stick Antenna For 3G/4G/LTE Band with Standard N-Female Connector

  • $67.50
    Unit price per

ROSA-698/2700-SNF


163 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
25 $43.00
100 $37.50
Factory lead time:  Ships in 6-8 Weeks

ROSA-698/2700-SNF: RFMAX Outdoor Omni-Directional Stick Antenna For 3G/4G/LTE Band with Standard N-Female Connector

ROSA-698/2700-SNF: RFMAX Outdoor Omni-Directional Stick Antenna For 3G/4G/LTE Band with Standard N-Female Connector

More InfoDocumentsSpecifications Reviews

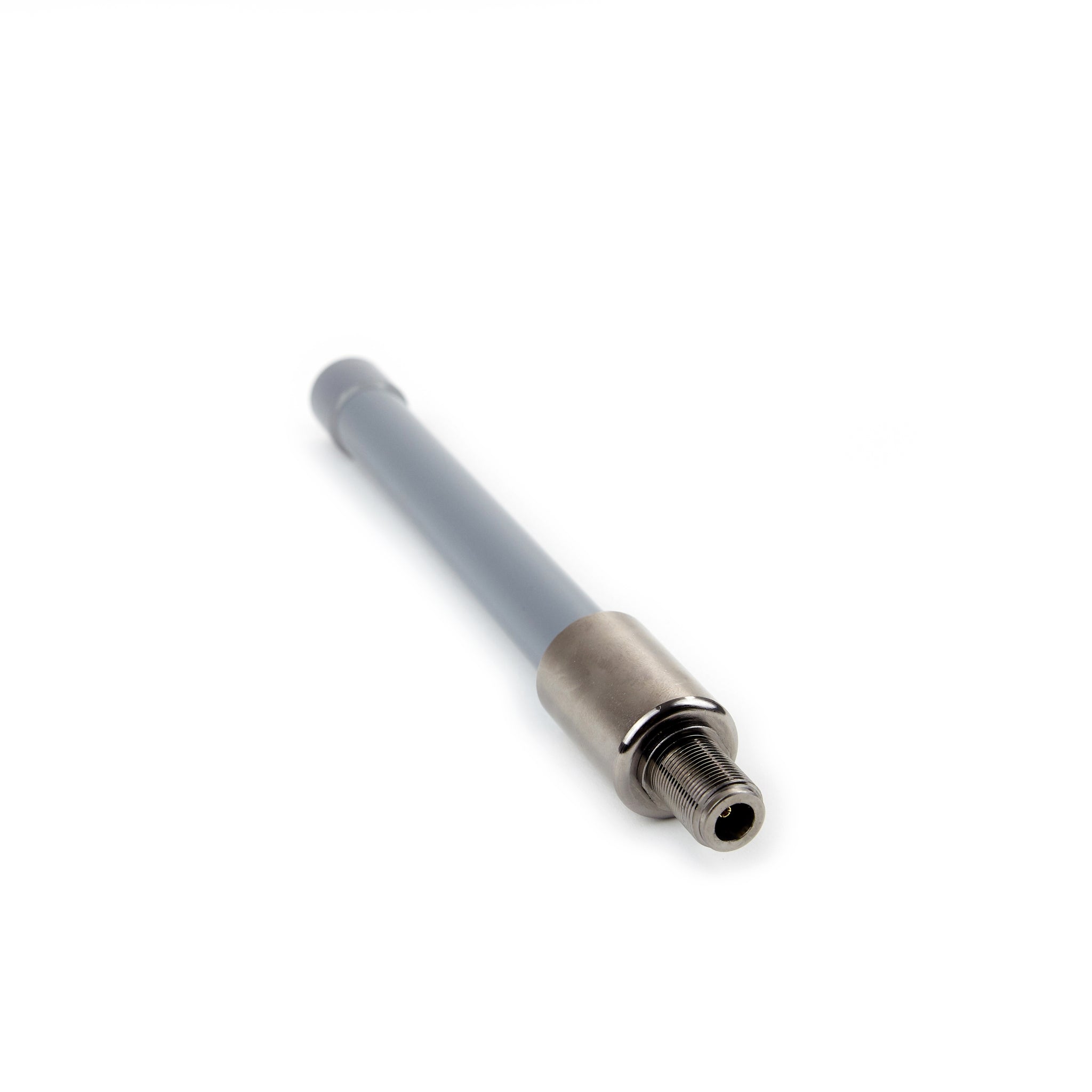

The ROSA-698/2700-SNF from RFMAX is a wide-band, outdoor rated, omni-directional stick antenna with N-Female for 3G/4G/LTE.  This antenna can be used indoors or outdoors

This antenna is designed and built to meet Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 standards.

Technical Notes:

  • Frequency: 698-960MHz, 1710-2180MHz, 2490-2700MHz
  • Gain: 2.6 dBi @760MHz, 3.6 dBi @1910MHz, 2.4 dBi @2550MHz
  • Size: Length=11.81 inch, Diameter=1.1 inch
  • Max Power Rating: 5 Watts
  • Operating Temp: -30 to +70 C (-22 to 158 F)
  • Operates with modems: Cradlepoint AER, COR, IBR, CBA series and all 3G/4G/LTE Sierra Wireless antennas
  • Equivalent to TaoGlas OMB.6912.03F21 and Laird OC69271-FNF

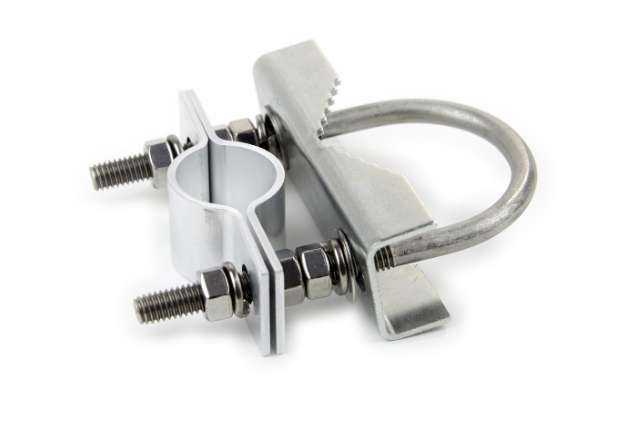

Bracket sold separately





More Information

The ROSA-698/2700-SNF from RFMAX is a wide-band, outdoor rated, omni-directional stick antenna with N-Female for 3G/4G/LTE.  This antenna can be used indoors or outdoors

Technical Notes:

  • Frequency: 698-960MHz, 1710-2180MHz, 2490-2700MHz
  • Gain: 2.6 dBi @760MHz, 3.6 dBi @1910MHz, 2.4 dBi @2550MHz
  • Size: Length=11.81 inch, Diameter=1.1 inch
  • Max Power Rating: 5 Watts
  • Operating Temp: -30 to +70 C (-22 to 158 F)
  • Operates with modems: Cradlepoint AER, COR, IBR, CBA series and all 3G/4G/LTE Sierra Wireless antennas
  • Equivalent to TaoGlas OMB.6912.03F21 and Laird OC69271-FNF




Documents


Specifications

SKU ROSA6982700SNF
Manufacturer Part Number ROSA-698/2700-SNF
Manufacturer RFMAX
Product Condition New
Antenna Style Stick
Antenna Style Stick
Antenna Category 3G/4G/LTE (698-2700 MHz)
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 5
VSWR: < X: 1 2.5
Height/Length (inches) 11.81
Height/Length (mm) 300
Thickness/Diameter (inches) 1.1
Thickness/Diameter (mm) 28
Material Polycarbonate
Operating Temp (celsius) -30 TO +70
Color Grey
Connector Type Connector - Bottom
Connector 1 N-Female
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
