RHPA-WW-RSM-3: Low Profile IP67 Hockey Puck Style MIMO Antenna for 2.4/5 GHz WiFi / WLAN, 3 ft Cables & RPSMA-Male

  • $54.00
    Unit price per

RHPA-WW-RSM-3


0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

RHPA-WW-RSM-3: Low Profile IP67 Hockey Puck Style MIMO Antenna for 2.4/5 GHz WiFi / WLAN, 3 ft Cables & RPSMA-Male

More InfoSpecifications Reviews

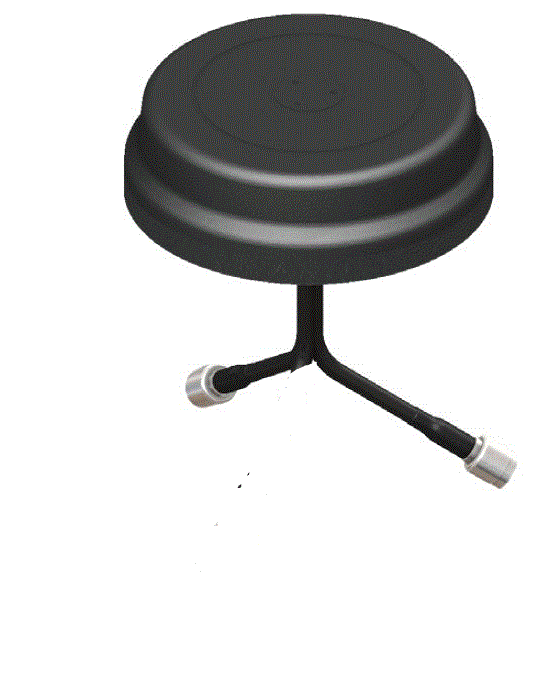

The RFMAX RHPA-WW-RSM-3 integrates two, high powered WiFi/WLAN antennas into one, low profile, highly ruggedized radome.  Size is relatively small at just 5 inches in diameter, and approximately one inch of height.  The unit mounts using a permanent, threaded stud with hex nut to prevent vandalism, or unwanted re-location of the antenna.  The unit is rated to IP67 standards, so it is appropriate for use indoors and out.

  • Dual Antenna Elements: 2.4-2.5 & 4.9-5.9 GHz
  • Gain: 3 dBi average gain
  • Pattern: Omnidirectional
  • VSWR: <2:1
  • Diameter: 5 inches
  • Height: 1.25 inches
  • Dual Cables: 3 ft / 36 inches long with RPSMA-Male


More Information

The RFMAX RHPA-WW-RSM-3 is an indoor / outdoor MIMO antenna covering the 2.4 to 2.5 GHz and 4.9 to 5.85 GHz frequency ranges

The housing incorporates a low-profile, rugged design that conforms to IP67 standards. The antenna also features high impact, UV-resistant polycarbonate plastic and includes two, three foot long cables with RPSMA-Male Connectors.

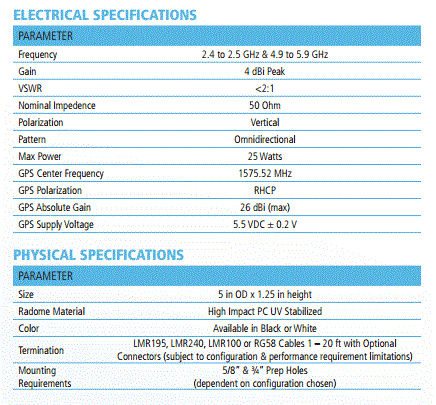

Specifications

SKU RHPAWWRSM3
Manufacturer Part Number RHPA-WW-RSM-3
Manufacturer RFMAX
Antenna Category WiFi (2.4 & 5.0 GHz)
Working Frequency 2400 MHz-2500 MHz
Gain 3dBi
Working Frequency 2 4900-5990 MHz
Gain 2 4dBi
Antenna Style Hockey Puck
Polarity Vertical
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 25
VSWR: < X: 1 2:01
No Of Elements 2
Height/Length (inches) 1.25
Thickness/Diameter (inches) 5
Material UV-resistant polycarbonate plastic
Mount Style 5/8 holes
Color Black
Cable Length (inches) 36
Connector 1 RP SMA-Male
Connector 2 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
