R1900: 1.9 Inch 2G/3G Cellular Pentaband Stubby / Glue stick Antenna - Right Angle SMA-Male

  • $8.99
    Unit price per

R1900


38 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $7.00
250 $6.50
Factory lead time:  Ships in 6-8 Weeks

R1900: 1.9 Inch 2G/3G Cellular Pentaband Stubby / Glue stick Antenna - Right Angle SMA-Male

More InfoSpecifications Reviews

RFMAX Glue stick antenna # R1900 1.9 inch penta band stubby 2G/3G cellular antenna operates on GSM and WCDMA, 900 MHz frequencies for a variety of M2M and wireless applications.


More Information

RFMAX R1900 4 inch penta band stubby antenna operates on GSM and WCDMA frequencies for a variety of M2M and wireless applications. Antenna measures a mere 49 mm / 1.9 inches tall and has an SMA-Male connector.

FEATURES

  • Ultra Small form factor
  • Antenna size 1.9 inch 49.5 mm tall
  • Lead free materials
  • RoHS Compliant Product
  • Connector Type: Right Angle SMA

APPLICATIONS

  • 2G/3G cellular Penta band EU / US GSM / WCDMA
  • Frequency range: 850 / 900 / 1800 / 1900/ 2100 MHz
  • M2M Applications for Sierra Wireless and Cradlepoint Modems

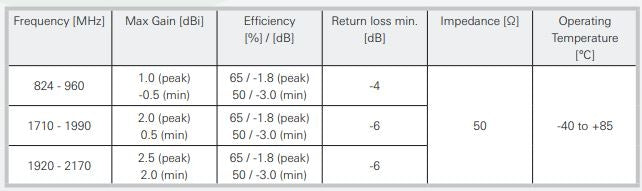

Specifications

SKU R1900
Manufacturer Part Number R1900
Manufacturer RFMAX
Product Condition New
Antenna Style Stubby
Antenna Style Stubby
Antenna Category 3G/4G/LTE (698-2700 MHz)
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 824 - 960 MHz
Gain 1 1dBi
Frequency 2 1710 - 1990 MHz
Gain 2 2dBi
Frequency 3 1920 - 2170 MHz
Gain 3 2.5dBi
Impedance 50 ohms
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 1.9
Height/Length (mm) 49
Thickness/Diameter (mm) 10.4
Operating Temp (celsius) (-40°C) to 85°C
Color Black
Connector Type Connector - Side Entry
Connector 1 SMA-Male
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
