PA9-13-H/V: 15x15 Inch Linear Polarity Directional Flat Panel RFID Antenna

  • $58.74
    Unit price per

PA9-13-H/V


4 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
250 $55.00
500 $51.00
Factory lead time:  Ships in 2-4 Weeks

PA9-13-H/V: 15x15 Inch Linear Polarity Directional Flat Panel RFID Antenna

More InfoDocumentsSpecifications Reviews

The PA9-13-H/V linear polarity, directional flat panel antenna by RFMAX offers high-gain in a thin, low-profile package.


More Information

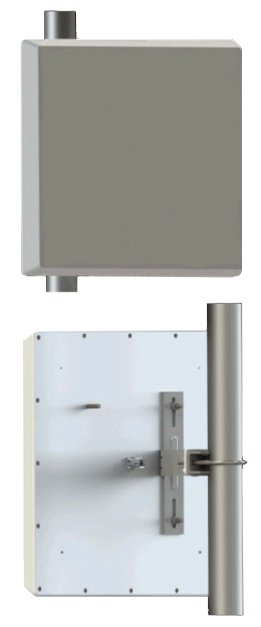

The RFMAX PA9-13-H/V flat panel directional antenna offers high-gain in a low-profile package. The antenna is constructed of a UV resistant ASA plastic radome with an aluminum backplate. The antenna is linear polarized and can be used in horizontal or vertical polarization. The heavy duty pole mount bracket (included) allows up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be wall or pole mounted. The PA9-13-H/V comes with an integral N female connector standard.



 FEATURES

• High gain / low profile

• Mast/wall mount kit included

• Rugged IP67 rated weatherproof construction

• Vertical or horizontal polarization



APPLICATIONS

• 902-928 MHz UHF RFID applications

• WISP client antennas

• OEM wireless data

• Transport terminals


Documents


Specifications

SKU PA913HV
Manufacturer Part Number PA9-13-H/V
Manufacturer RFMAX
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
Polarity Dual Polarity
Gain 12.5
Horizontal/Azimuth Beamwidth 42 degree
Vertical/Elevation Beamwidth 42 degree
Connector Type Connector - Inside
Height/Length (inches) 15.4
Height/Length (mm) 391.16
Operating Temp (celsius) (-49) to 149
Thickness/Diameter (inches) 1.7
Thickness/Diameter (mm) 43
Width (inches) 15.4
Width (mm) 391
Weight (lbs) 2.2
Weight (grams) 1000
Material ABS Plastic
Color White
Mount Style Threaded Stud x 4
Includes Wall/ Pole mount
