RDA900-SSM: Indoor Omni‐directional Dipole Antenna for 900 MHz LoRa LoRaWAN& ISM band Modems and Gateways

  • $18.99
    Unit price per

RDA900-SSM


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
100 $17.99
250 $14.99
500 $10.00
1000 $9.00
Lead time:  Ships in 4-6 Weeks

RDA900-SSM: Indoor Omni‐directional Dipole Antenna for 900 MHz LoRa LoRaWAN& ISM band Modems and Gateways

More InfoSpecifications Reviews

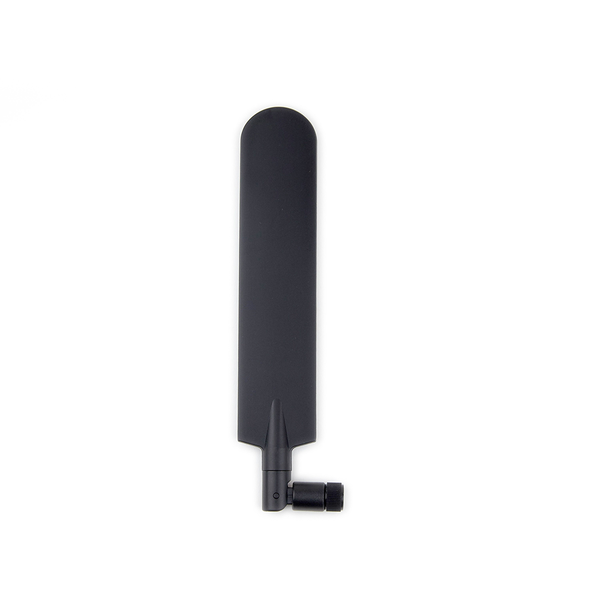

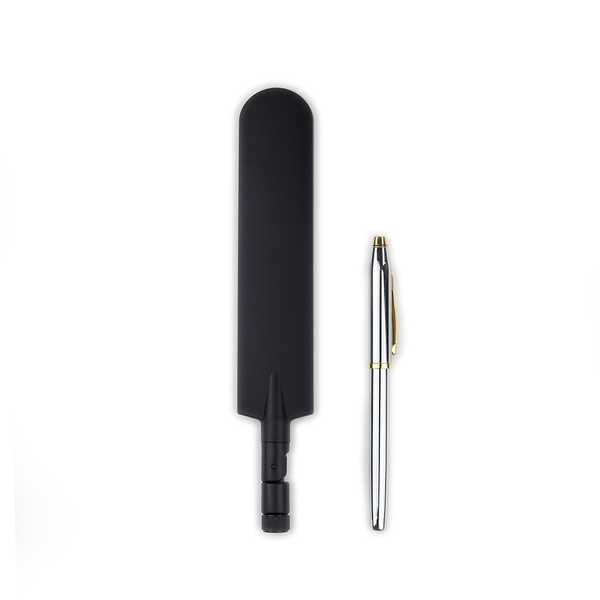

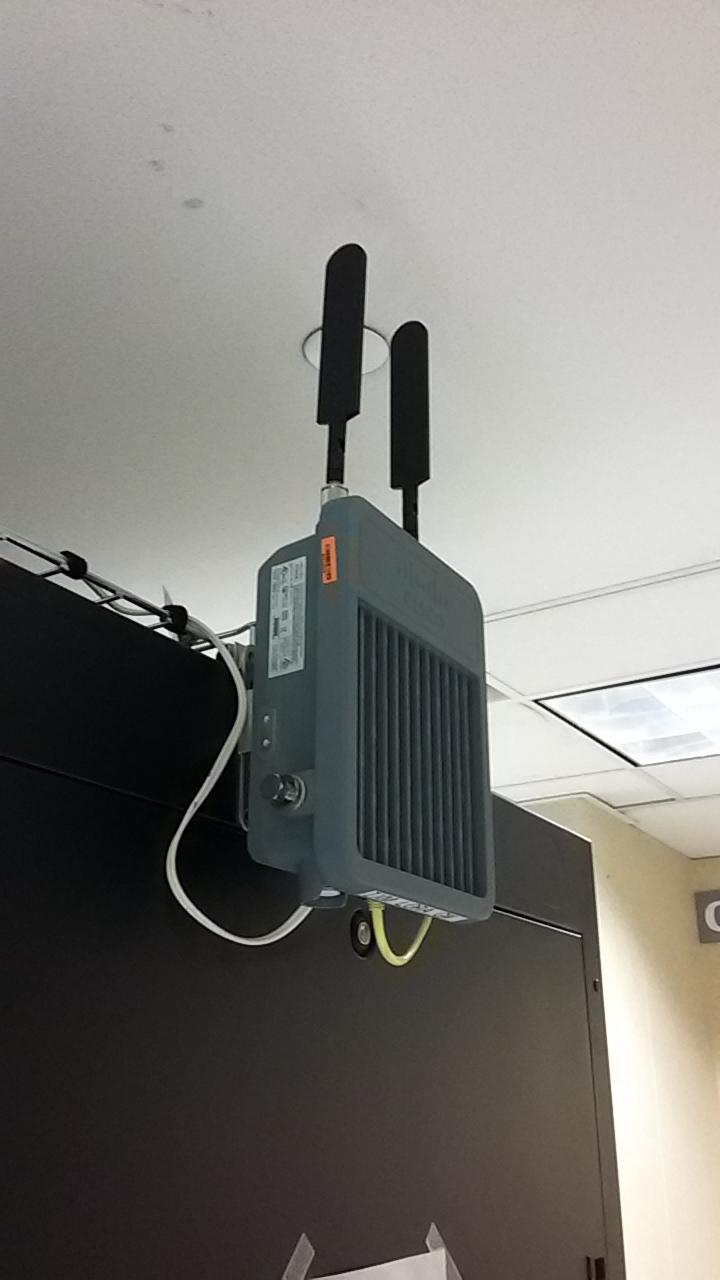

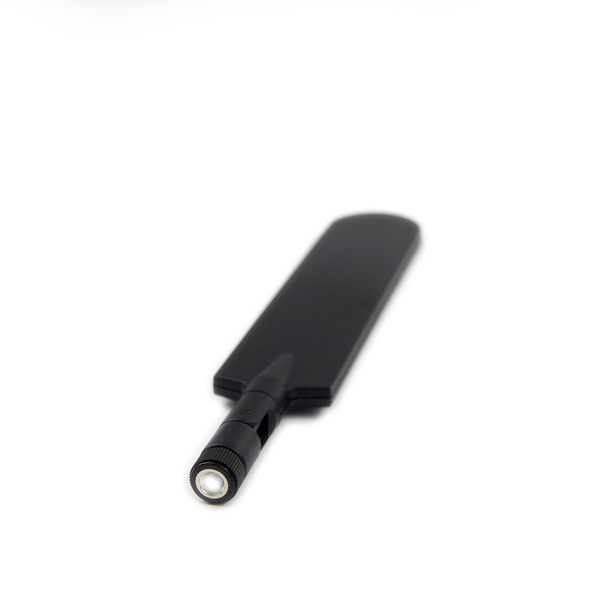

The RDA900-SSM is a slim, blade-style Omni‐directional dipole antenna with articulating knuckle and SMA connector for the 900 MHz LoRa, LoRaWAN & ISM bands. This antenna is designed to accommodate indoor communications on 900 MHz LoRa and ISM gateways in the 902-928 MHz frequency band for Internet of Things (IOT) applications. This is also suitable for 900 MHz spread spectrum applications, SCADA system radios that operate in the unlicensed 896-940 MHz frequency range and for all applications working in 900 ISM Band.

Compatible with Freewave FGR2-C-U, FGR2-T-U, FGR2-P, and FGR3-C-U



More Information



The Model RDA900-SSM Dipole Antenna is defined by the following features:

  • Omni‐directional dipole antenna
  • LoRa IOT Band Coverage (902‐928MHz)
  • 1.7 dBi @910MHz nominal peak gain
  • Works with most LoRa Gateways from:
  • Digi, Laird, LinkSprite, Multi-Tech, etc.

Compatible with Freewave FGR2-C-U, FGR2-T-U, FGR2-P, and FGR3-C-U


Specifications

SKU RDA900SSM
Manufacturer Part Number RDA900-SSM
Manufacturer RFMAX
Antenna Category 900 MHz
Working Frequency 902-928 MHz
Gain 1.7 dBi
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2:01
Height/Length (inches) 8.11
Height/Length (mm) 206 mm
Width (inches) 1.4
Width (mm) 35
Thickness/Diameter (inches) 0.28
Thickness/Diameter (mm) 7
Operating Temp (celsius) -30 to +75 C
Color Black
Connector Type SMA-Male
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
Product Condition New
