RCPA-902-11-RTF: RFMAX Hi-Gain RFID Antenna. 25 x 12.5 inch IP-54 Right hand Circularly Polarized 902-928 MHz
RCPA-902-11-RTF
RCPA-902-11-RTF: RFMAX Hi-Gain RFID Antenna. 25 x 12.5 inch IP-54 Right hand Circularly Polarized 902-928 MHz

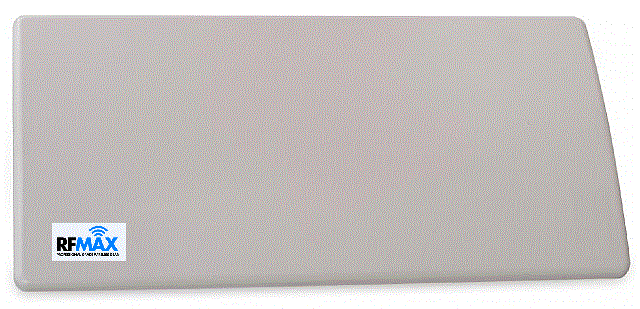

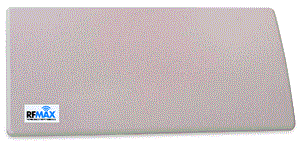

More InfoDocumentsSpecifications ReviewsThe RFMAX # RCPA-902-11-RTF is a Right hand circularly polarized outdoor RFID Antenna that operates at 11 dBic gain, covers 63 x 30 degrees beamwidth, for passive UHF RFID applications in the FCC band of 902-928 Mhz. The antenna carries an IP54 rating and has a fixed RPTNC-Female connector.
More Information
RCPA-902-11-RTF is a heavy duty, IP54 rated, Right Circularly Polarized RFID Antenna for use in the FCC range of 902-928 Mhz. This model is considered Hi-Gain offering 11 dBic.
- Size: 25.6x12.6 inches
- Frequeny: 902-928 MHz
- Gain: 11 dBic (min)
- VSWR: 1.5:1 (max) 1.3:1 (average)
- 90mm mounting pattern (use HDMNT-90mm)
- Straight RPTNC-Female Connector
Documents
We Also Recommend
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
$299.00
$299.00
View Details
In Stock
EZ-M9-COMBO
EZM9: 9 Inch Bracket - Fully Articulating Die Cast Wall or Mast Mount for 2 or 4 Stud RFID Panel Antennas.
$99.00
$99.00
View Details
In Stock
HDMNT-100MM
HDMNT-100MM: Heavy Duty Indoor Outdoor Mounting Bracket for Antenna, Computer Monitor or TV. 100mm VESA
$64.00
$64.00
View Details
In Stock
R9029-XL-12SSF
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
$305.00
$305.00
View Details

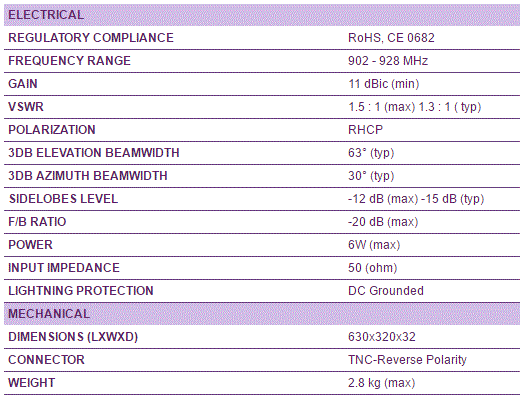

Specifications
| SKU | RCPA90211RTF |
|---|---|
| Manufacturer Part Number | RCPA-902-11-RTF |
| Manufacturer | RFMAX |
| Product Condition | New |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | 67 |
| Polarity | Circular |
| Gain | 11 dBic |
| Horizontal/Azimuth Beamwidth | 63 |
| Vertical/Elevation Beamwidth | 30 |
| Connector Type | Connector - Rear |
| Connector 1 | RP TNC-Female |
| Height/Length (inches) | 24.8 |
| Height/Length (mm) | 630 |
| Operating Temp (celsius) | -55 to +70 c |
| Thickness/Diameter (inches) | 1.25 |
| Thickness/Diameter (mm) | 32 |
| Width (inches) | 12.6 |
| Width (mm) | 320 |
| Weight (lbs) | 6.5 |
| Weight (grams) | 2800 |
| Material | Plastic |
| Color | White |
| Mount Style | Mast or Wall, 90mm 4-stud pattern at 90mm |
