6-in-1 Multi-Band Antenna for In-Vehicle Cellular Routers: For Sierra Wireless MP70, etc. with 17 ft. Cables | RBDM-G44WWW-17-SSSRRR-W

  • $320.00
    Unit price per


3 Can ship immediately
Lead time for qty above 3:  Ships in 10-12 Weeks

Shipping calculated at checkout.

6-in-1 Multi-Band Antenna for In-Vehicle Cellular Routers: For Sierra Wireless MP70, etc. with 17 ft. Cables | RBDM-G44WWW-17-SSSRRR-W

More InfoDocumentsSpecifications Reviews

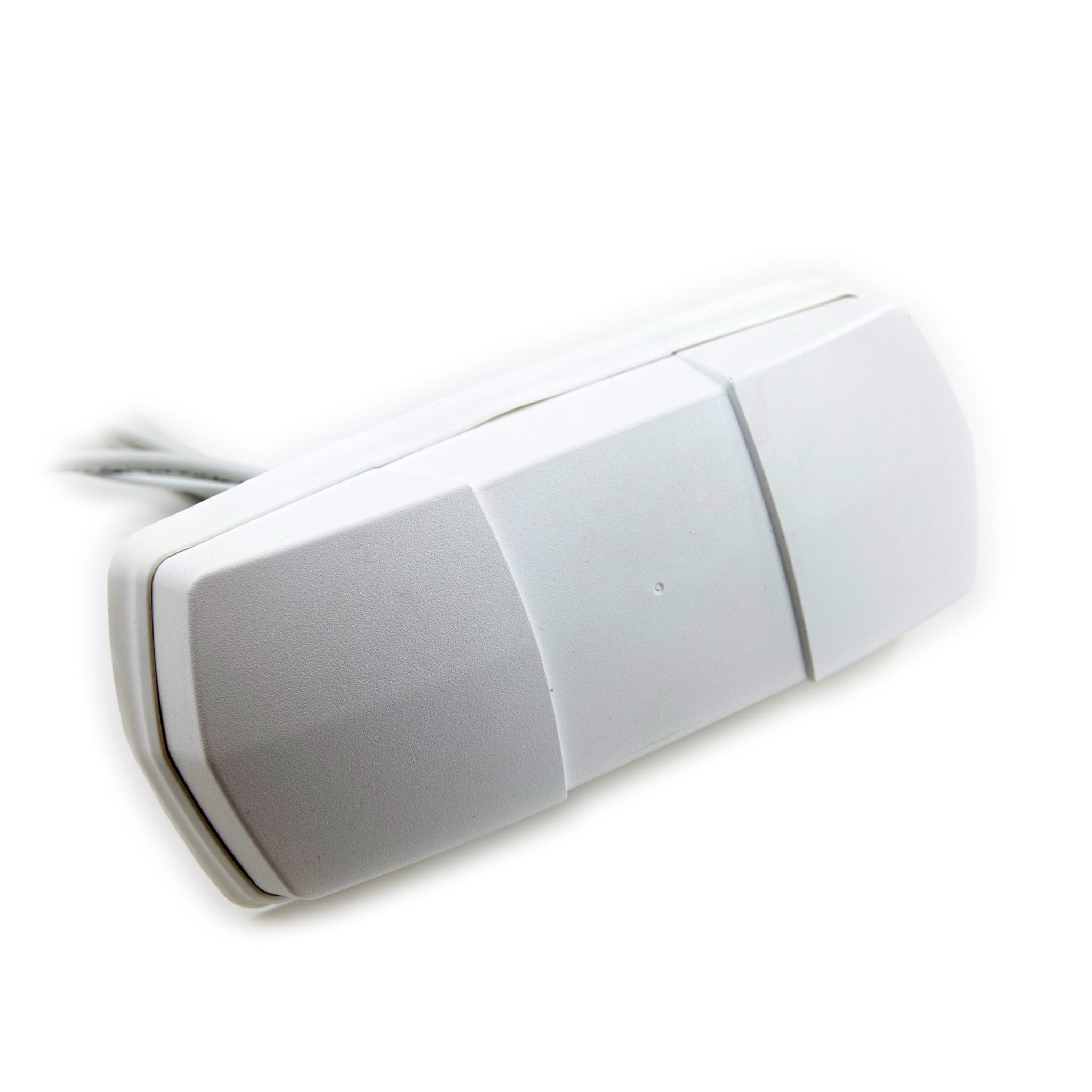

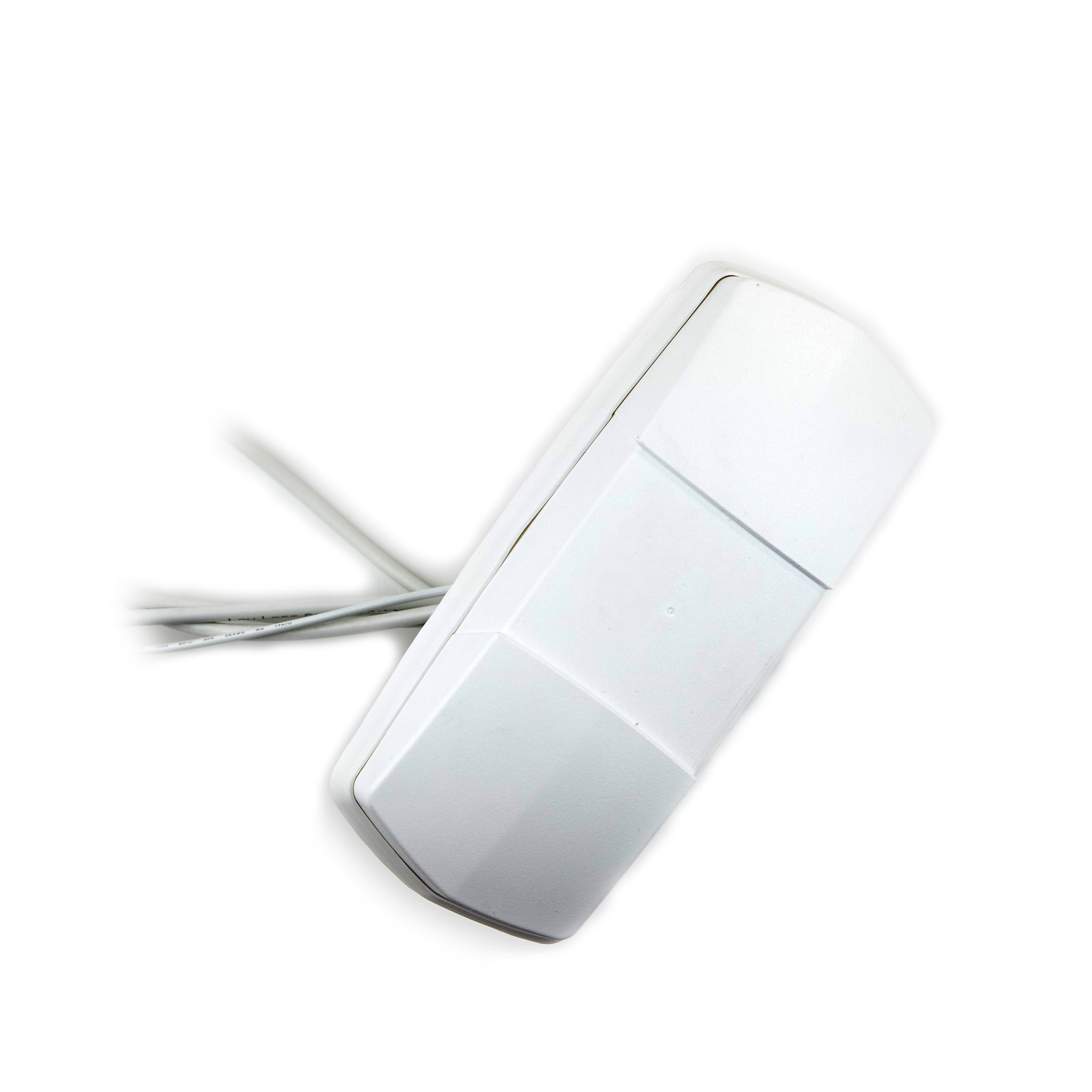

The RFMAX "Brick" (White) antenna # RBDM-G44WWW-17-SSSRRR-B is a compact, Low profile, ultra-rugged direct-mount antenna designed for M2M machine-to-machine applications. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna is the perfect choice for NEMA enclosures, utility vehicles, or public safety vehicles, including the Ford Explorer / Police Interceptor.

Optimized for: Sierra Wireless MP70 & Cradlepoint IBR1700

More Information

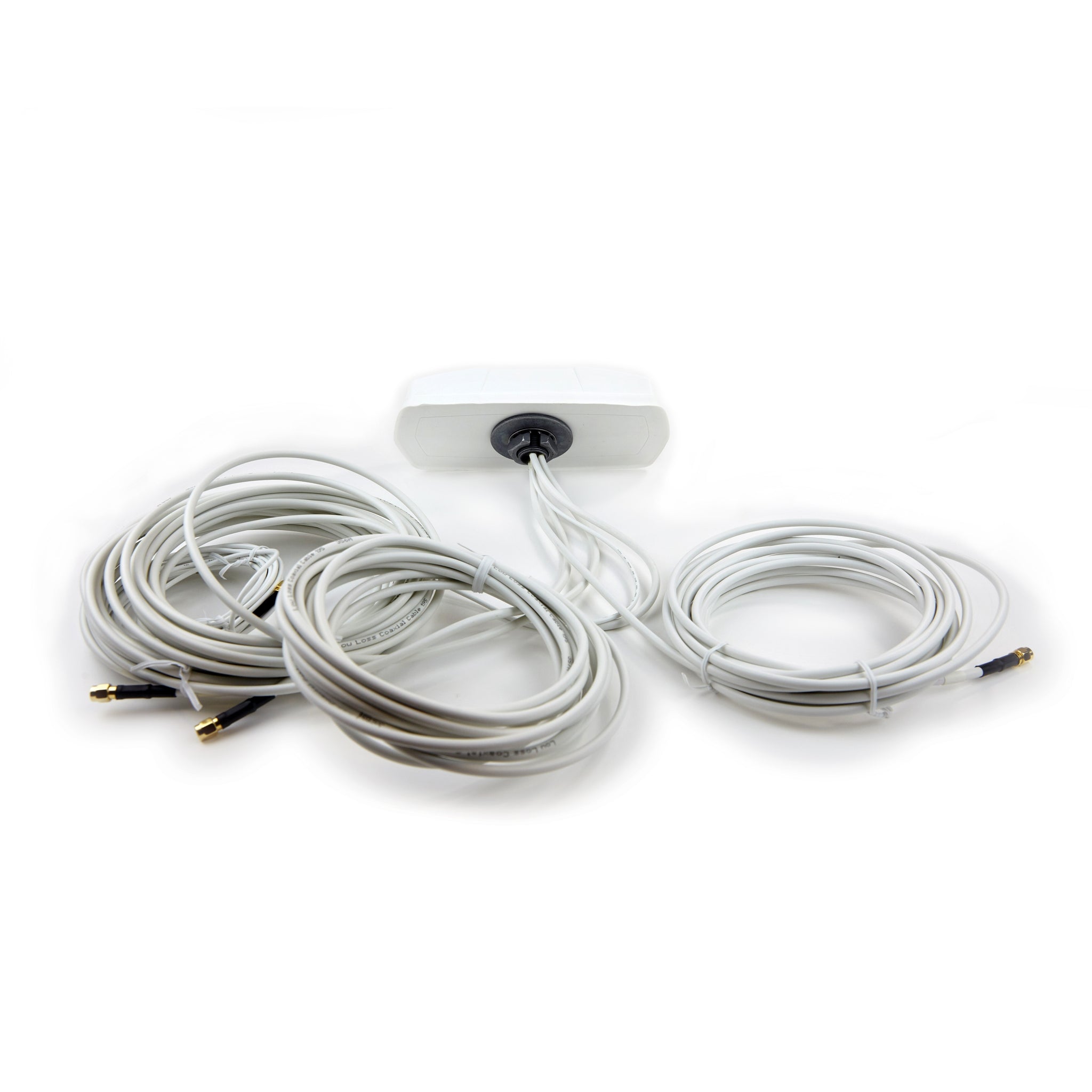

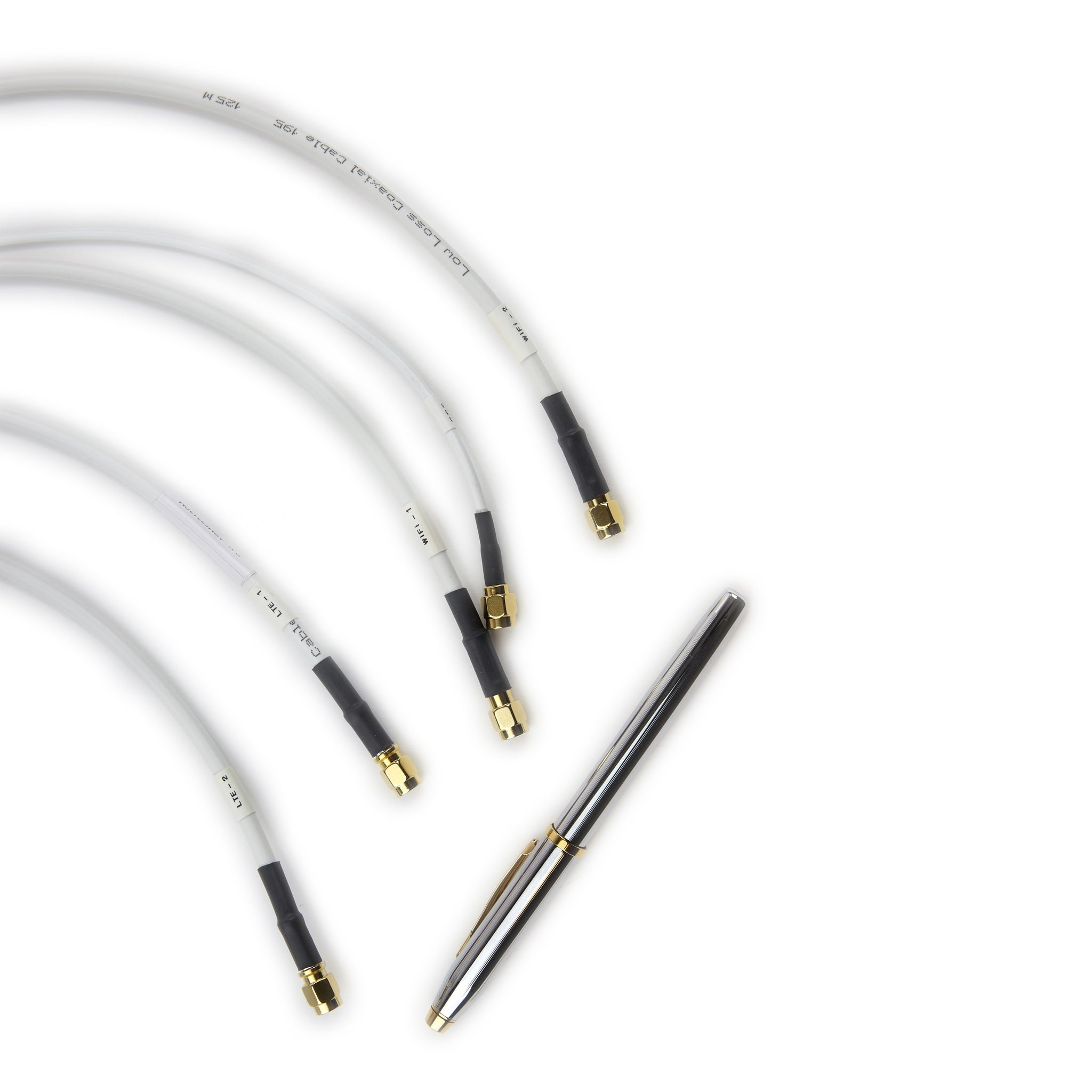

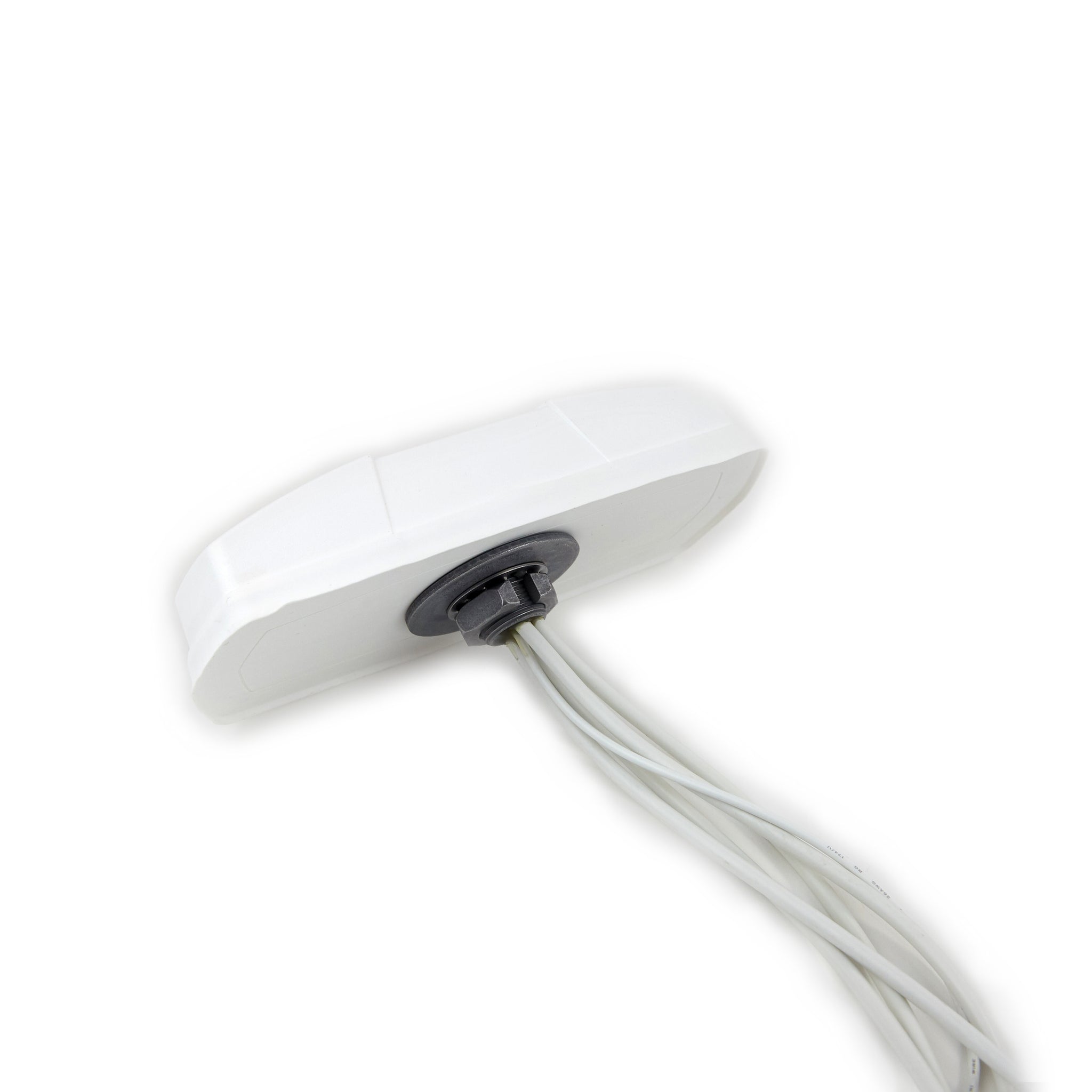

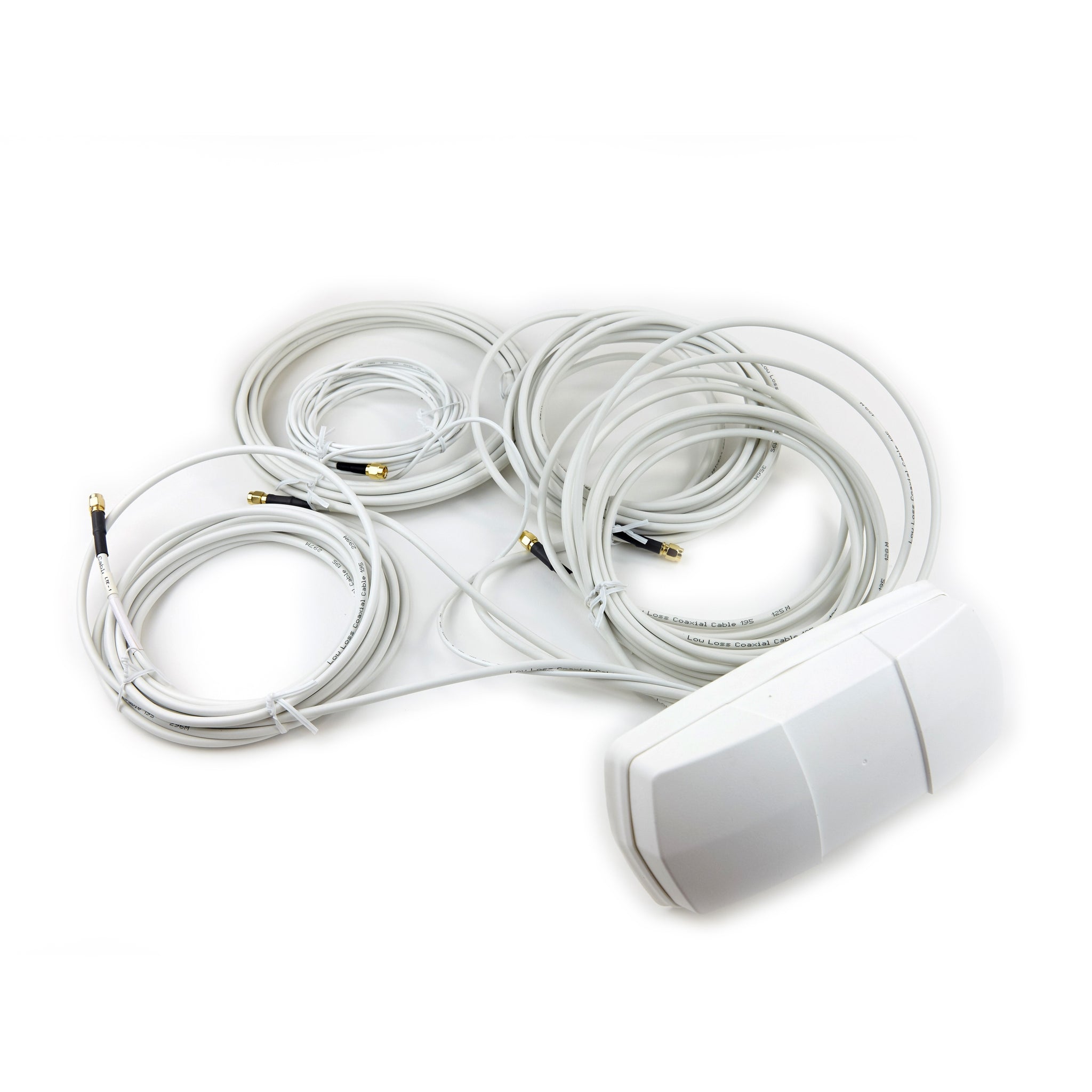

This unit was designed for use with, 1 x GPS, 3 x WiFi and 2 x 3G/4G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. Our "Brick" Low profile antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use.  The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. The antenna includes five 17 foot long, low loss cables with 3 x SMA male connectors and 2 x RP-SMA Connector.

  • RFMAX "Brick" Antenna
  • Size: 7.9 x 3.4 x 1.8 Inches
  • Same footprint as Antenna Plus, but lower profile
  • Elements: Dual 3G-4G Cellular / MiMo LTE, 1 GPS and 3 WiFi
  • High Gain at all frequencies for maximum connection speeds
  • Designed for Indoor or Outdoor Installations (IP67 rated)
  • Easy to install, Rugged & 100% Vandal Proof
  • Approved for use with all major carriers: AT&T, Verizon, Sprint
  • Optimized For Sierra Wireless MP70
  • Color: White



Manufacturer Part Number RBDM-G44WWW-17-SSSRRR-W
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 MHz
Gain 2.5 dBi
Working Frequency 2 1710-2690 MHz
Gain 2 3.1 dBi
Working Frequency 3 2400-2500 MHz
Gain 3 3.2 dBi
Working Frequency 4 5150-5925 MHz
Gain 4 3.1 dBi
Working Frequency 5 1561-1602 MHz GPS/GNSS
Gain 5 30 dB
Antenna Style "Brick" Multi-Element Antenna
Polarity Linear
Bands Multi
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 <2:1
Horizontal/Azimuth Beamwidth 360
Plenum/Fire Rating UV Stable, UL94 Radome
No Of Elements 5
Height/Length (inches) 7.9
Height/Length (mm) 202
Width (inches) 3.4
Width (mm) 88
Thickness/Diameter (inches) 1.8
Thickness/Diameter (mm) 45
Weight (lbs) 2
Material UV Stable, UL94 Radome
Operating Temp (celsius) -40 to +85 C
Mount Style Direct Mount
Color White
Number of Cables 6
Cable Length (inches) 204
Connector 1 SMA-Male
Connector 2 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
