5-in-1 Multi-Band Antenna for M2M Enclosure with Direct Mount. GPS, 2 x LTE, 2 x WiFi. 4 Ft Long Cables | RBDM-G44WW-4-SSSRR-B
RBDM-G44WW-4-SSSRR-B
5-in-1 Multi-Band Antenna for M2M Enclosure with Direct Mount. GPS, 2 x LTE, 2 x WiFi. 4 Ft Long Cables | RBDM-G44WW-4-SSSRR-B
More InfoDocumentsSpecifications ReviewsThis product is EOL... Click Here to Upgrade to RBDM-G55WW-2-SSSRR-B at no additional cost: this is the NEW revision with 5G/4G/LTE compatible antenna elements and better performance.

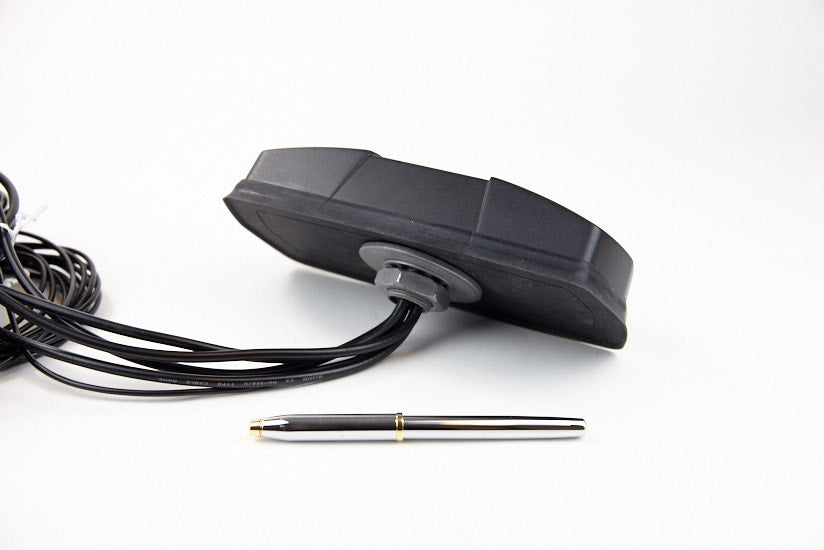

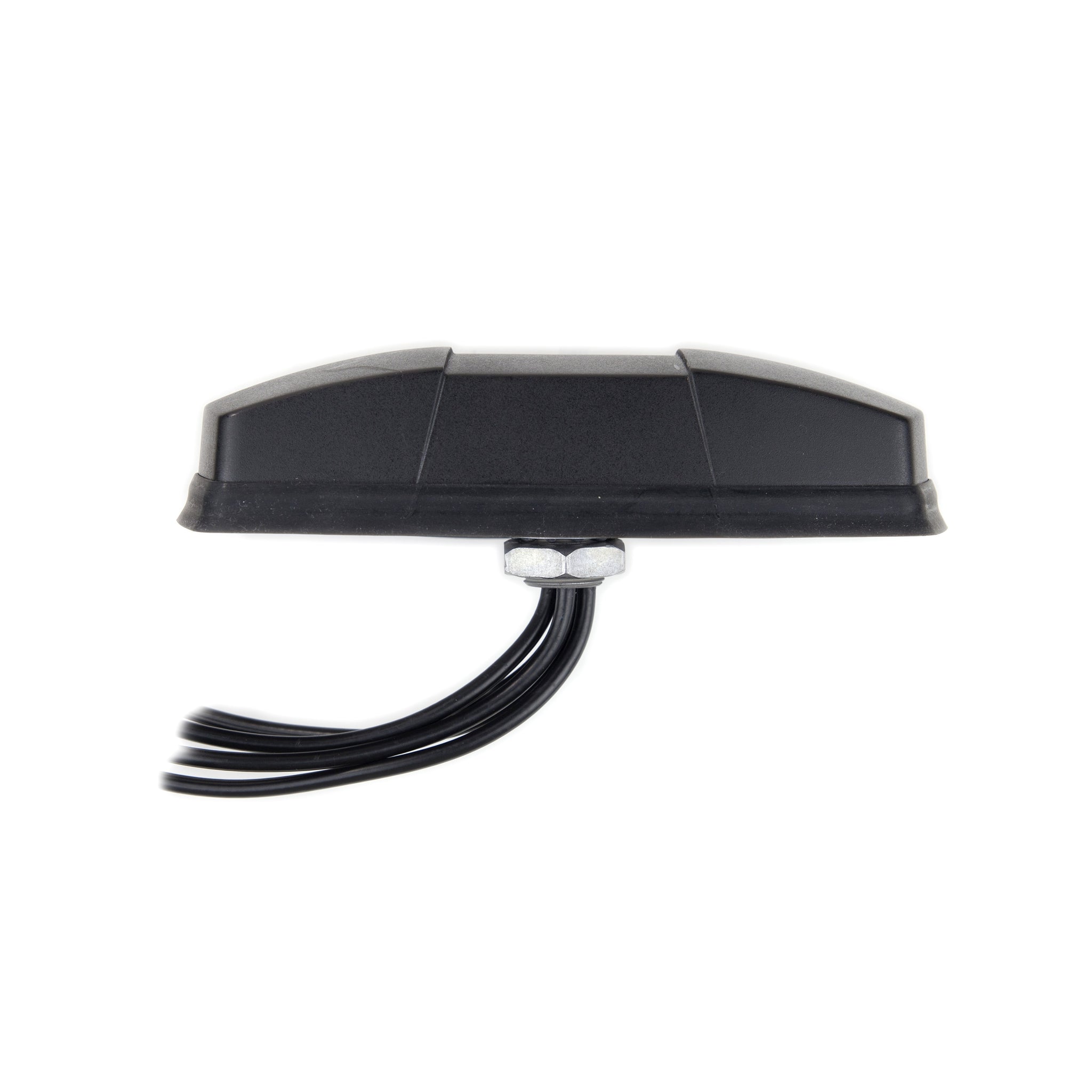

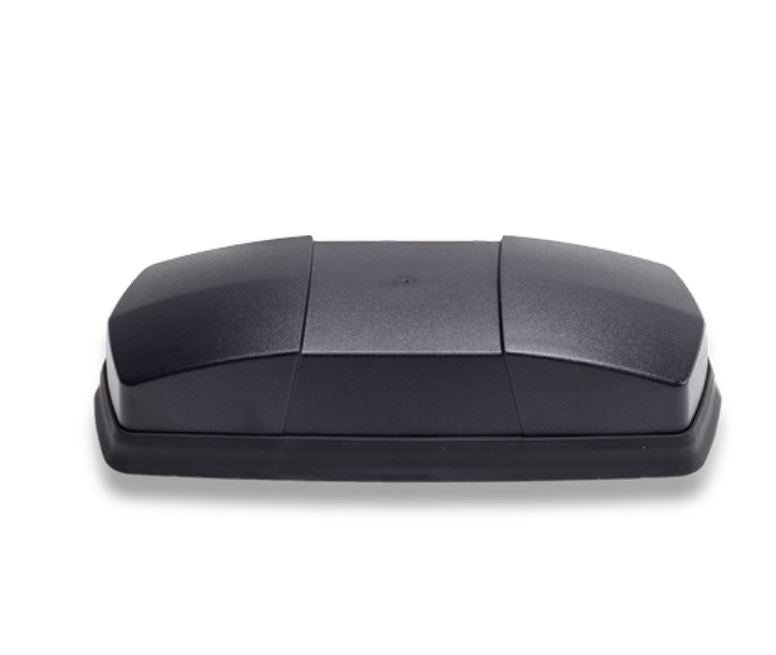

The RFMAX "Brick" antenna # RBDM-G44WW-4-SSSRR-B is a compact, Low profile, ultra-rugged direct-mount antenna designed for M2M machine-to-machine applications. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. This antenna was designed to exceed all 3G/4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. Optimized for Cradlepoint IBR1100 and IBR900

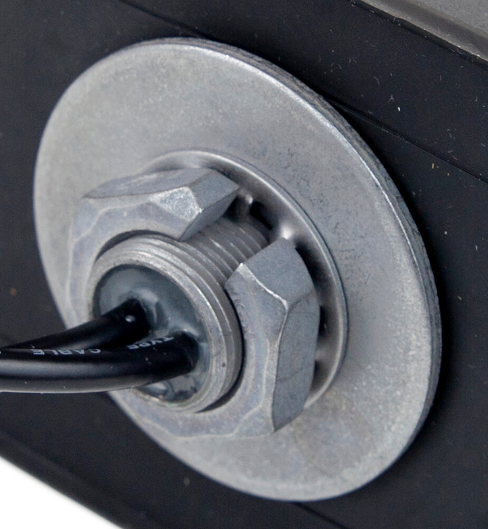

This unit was designed for use with, 1 x GPS, 2 x WiFi and 2 x 3G/4G or MiMo LTE cellular modem gateways from Cradlepoint, Sierra Wireless, PepLink, etc. Our "Brick" antenna is easy to install using the heavy-duty threaded stud mount which is 100% vandal proof and IP67 rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. The antenna includes five 4 foot long, low loss cables with 3 x SMA male connectors and 2 x RP-SMA Connector.
Compatible with Cradlepoint IBR100 and IBR900, Sierra Wireless GX450, PepLink Max BR1 Pro and Max TST, Motorolla VML 750, Netcom Wireless NTC-1410W, and Maestro Wireless E220.
More Information
- RFMAX "Brick" Low profile, Antenna

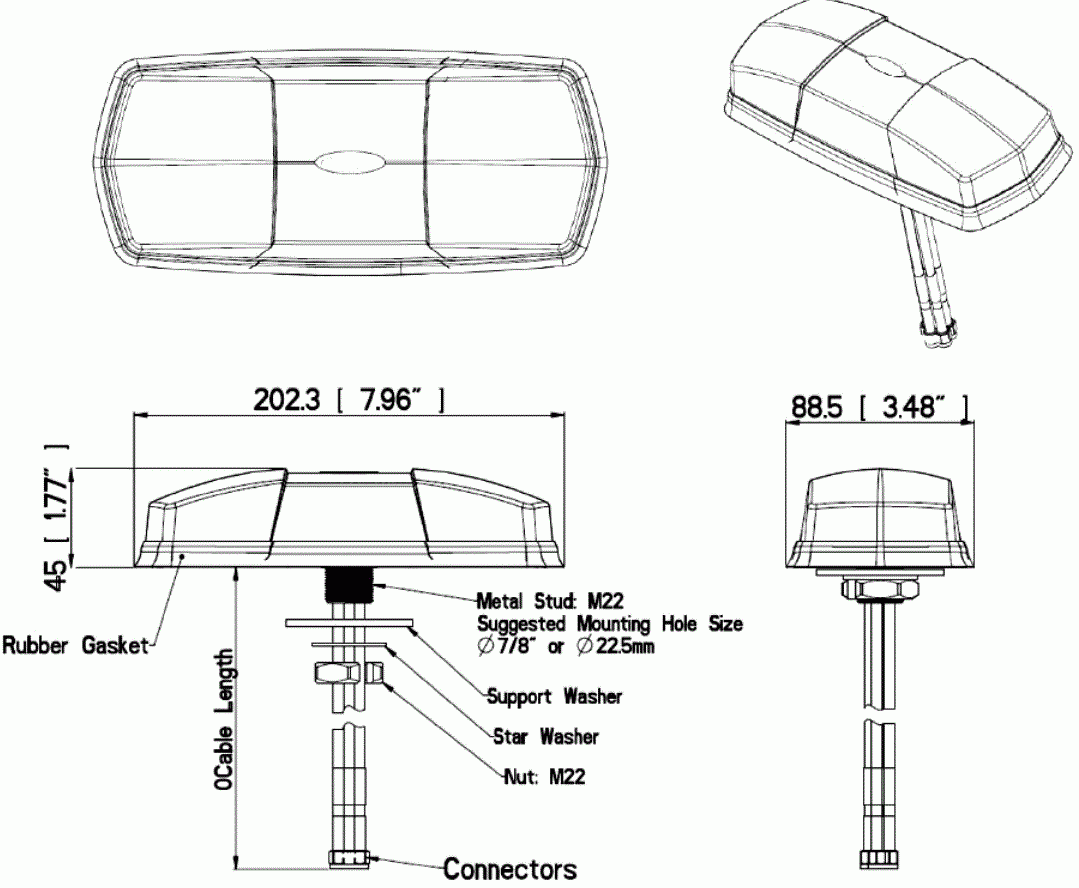

- Size: 7.9 x 3.4 x 1.8 Inches
- Same footprint as Antenna Plus, but lower profile
- Elements: Dual 3G-4G Cellular / MiMo LTE, 1 GPS and 2 WiFi
- High Gain at all frequencies for maximum connection speeds
- Designed for Indoor or Outdoor Installations (IP67 rated)
- Easy to install, Rugged & 100% Vandal Proof
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Optimized for Cradlepoint IBR1100 and IBR900
Compatible with Cradlepoint IBR100 and IBR900, Sierra Wireless GX450, PepLink Max BR1 Pro and Max TST, Motorolla VML 750, Netcom Wireless NTC-1410W, and Maestro Wireless E220.
Documents
We Also Recommend
Specifications
| SKU | RBDMG44WW4SSSRRB |
|---|---|
| Manufacturer Part Number | RBDM-G44WW-4-SSSRR-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-960 MHz |
| Gain | 2.5 dBi |
| Working Frequency 2 | 1710-2690 MHz |
| Gain 2 | 3.1 dBi |
| Working Frequency 3 | 2400-2500 MHz |
| Gain 3 | 3.2 dBi |
| Working Frequency 4 | 5150-5925 MHz |
| Gain 4 | 3.1 dBi |
| Working Frequency 5 | 1561-1602 GPS/GNSS |
| Gain 5 | 30 dB |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| VSWR: < X: 1 | <2:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Plenum/Fire Rating | UV Stable, UL94 Radome |
| No Of Elements | 5 |
| Height/Length (inches) | 7.9 |
| Height/Length (mm) | 202 |
| Width (inches) | 3.4 |
| Width (mm) | 88 |
| Thickness/Diameter (inches) | 1.8 |
| Thickness/Diameter (mm) | 45 |
| Weight (lbs) | 2 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -20 to +70 C |
| Mount Style | Direct Mount |
| Color | Black |
| Number of Cables | 5 |
| Cable Length (inches) | 48 |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | No |
| Product Condition | New |
