PSQ24495-91NM: 4-Port Directional MIMO Antenna 2400-2490 / 4900-6000 MHz with N-Male Connector

$155.08
Unit price per

PSQ24495-91NM

Quantity:

0 in stock. Subject to factory lead time

Volume Price Breaks
Quantity:	Unit Price:
10	$143.68
25	$137.61
100	$131.14
250	$129.42
500	$128.55

Lead time: Ships in 6-8 Weeks

Shipping calculated at checkout.

PSQ24495-91NM: 4-Port Directional MIMO Antenna 2400-2490 / 4900-6000 MHz with N-Male Connector

More Info Specifications Reviews

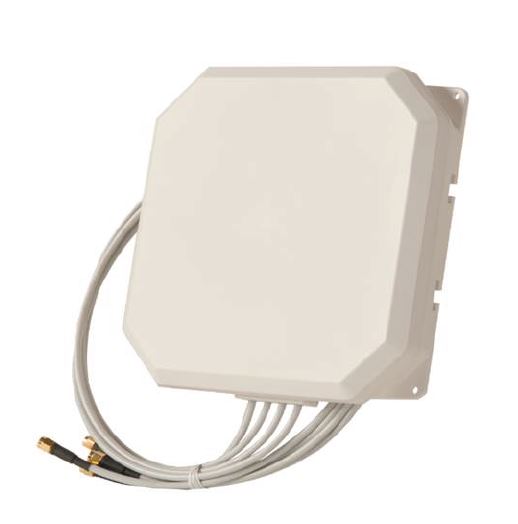

PSQ24495-91NM is a multi-band 4-port directional MIMO antenna that operates within 2400-2490 MHz and 4900-6000 MHz with a maximum gain of 7.7 dBi. This antenna includes four 3 ft cables with N-Male connectors.

Features:

Frequency: 2400-2490 / 4900-6000 MHz
Gain: 6.6 / 7.7 dBi
Polarization: Slant (Linear)
IP67 Rated for Outdoor Use
Connector: N-Male

***This item is subject to an MOQ of 4 pcs***

More Information

Features:

Frequency: 2400-2490 / 4900-6000 MHz
Gain: 6.6 / 7.7 dBi
Polarization: Slant (Linear)
IP67 Rated for Outdoor Use
Connector: N-Male

Specifications

SKU	PSQ2449591NM
Manufacturer Part Number	PSQ24495-91NM
Manufacturer	Laird
Antenna Category	WiFi (2.4 & 5.0 GHz)
Working Frequency	2400-2490 MHz
Gain	6.6 dBi
Working Frequency 2	4900-6000 MHz
Gain 2	7.7 dBi
Antenna Style	4-Port Antenna
Polarity	Linear
Bands	Multi
SISO or MIMO	MIMO
Directional or Omni	Directional
Impedance	50 ohm
Max Input Power (W)	10 W
VSWR: < X: 1	2.0:1
Front/Back Ratio (Db)	> 13 / 20 dB
Horizontal/Azimuth Beamwidth	85 / 90
Vertical/Elevation Beamwidth	110 / 85
Height/Length (inches)	7.96
Height/Length (mm)	202
Width (inches)	7.87
Width (mm)	200
Thickness/Diameter (inches)	1.6
Thickness/Diameter (mm)	40
Weight (lbs)	1.54
Weight (grams)	698
Material	ASA LURAN S778T
Operating Temp (celsius)	-30 to +70 C

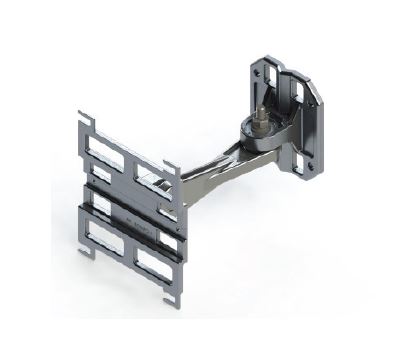

Mount Style	Articulating Mast / Wall
Color	White
Connector Type	Cable - Bottom Entry
Number of Cables	4
Cable Length (inches)	36
Cable Length (mm)	914
Connector 1	N-Male
IP Rating	IP67
OK for Outdoor Use	Yes
Product Condition	New
