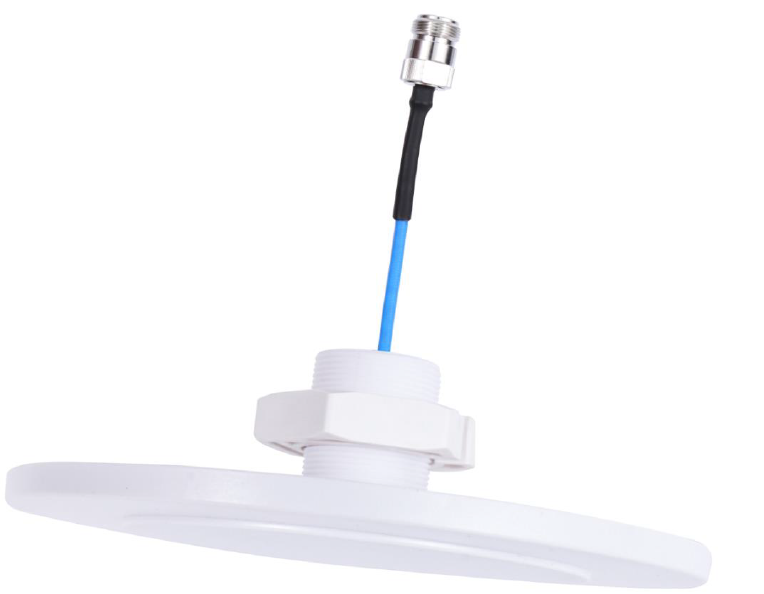

PSDASLPNF: P-Thinty 698-960MHz Ceiling Mount antenna with N-Female Connector

  • $61.40
    Unit price per

PSDASLPNF


55 Can ship immediately
Lead time for qty above 55:  Ships in 10-12 Weeks

Shipping calculated at checkout.

PSDASLPNF: P-Thinty 698-960MHz Ceiling Mount antenna with N-Female Connector

More InfoDocumentsSpecifications Reviews

Features:
•Frequency 698-960MHz
•Gain 2dBi
•Size ?179x10mm(7.047x0.394”)
•Connector N-female
•Direct mounting with nut

Applications:
•In building
•Public Safety DAS system
•Ceiling mounting



More Information

Features:
•Frequency 698-960MHz
•Gain 2dBi
•Size Φ179x10mm(7.047x0.394”)

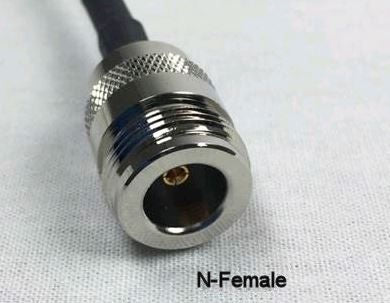

•Connector N-female
•Direct mounting with nut

Applications:
•In building
•Public Safety DAS system
•Ceiling mounting


Documents


Specifications

SKU PSDASLPNF
Manufacturer Part Number PSDASLPNF
Manufacturer Pulse
Antenna Category iDAS
Working Frequency 698-960 MHz
Gain 2.3 dBi
Antenna Style Ceiling iDAS Antenna
Polarity Horizontal
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Max Input Power (W) 50 W
VSWR: < X: 1 1.5
Height/Length (inches) 7.047
Height/Length (mm) 179
Width (inches) 0.0394
Width (mm) 10
Weight (lbs) 0.485
Weight (grams) 220
Color White
Number of Cables 1
Cable Length (inches) 11.811
Cable Length (mm) 300
Connector 1 N-Female
IP Rating IP30
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
Product Condition New
