PDQ244915-91NM: Laird 4-Port Dual-band Directional Antenna for 2400-2500 MHz and 4900-5950 MHz with N-Male Connector
PDQ244915-91NM
PDQ244915-91NM: Laird 4-Port Dual-band Directional Antenna for 2400-2500 MHz and 4900-5950 MHz with N-Male Connector

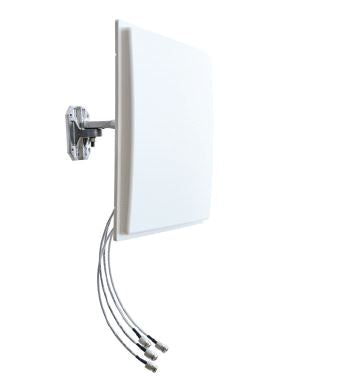

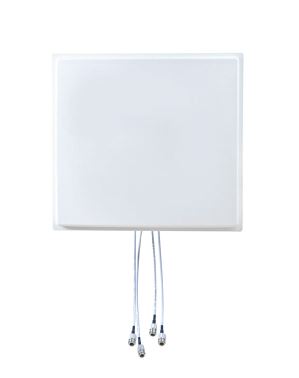

More InfoDocumentsSpecifications ReviewsPDQ244915-91NM is a Laird 4-port dual-band directional antenna operating within 2400-2500 MHz and 4900-5950 MHz frequency ranges with an N-Male connector. This antenna is designed with both horizontal and vertical polarization and an articulating arm mount for optimal signal. It is commonly used for high density WIFI applications, stadiums and arenas, hotels, casinos, retail stores, and transportation.
***This item is subject to an MOQ of 2 pcs***
More Information
PDQ244915-91NM is a Laird 4-port dual-band directional antenna operating within 2400-2500 MHz and 4900-5950 MHz frequency ranges with an N-Male connector. This antenna is designed with both horizontal and vertical polarization and an articulating arm mount for optimal signal. It is commonly used for high density WIFI applications, stadiums and arenas, hotels, casinos, retail stores, and transportation.
Features:
- Frequency: 2400-2500 MHz and 4900-5950 MHz
- Gain: 11.1 dBi and 15 dBi
- Environmental Rating: Outdoor - IP67
- Power: 10 Watts Max Input
- Connector: N-Male
- Articulating Arm Mount
Documents
Specifications
| SKU | PDQ24491591NM |
|---|---|
| Manufacturer Part Number | PDQ244915-91NM |
| Manufacturer | Laird |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 11.1 dBi |
| Working Frequency 2 | 4900-5950 MHz |
| Gain 2 | 15 dBi |
| Antenna Style | Panel Antenna |
| Polarity | Dual Polarity |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Directional or Omni | Directional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2.0:1 |
| Front/Back Ratio (Db) | 25 dB |
| Horizontal/Azimuth Beamwidth | See Datasheet |
| Vertical/Elevation Beamwidth | See Datasheet |
| Height/Length (inches) | 14.7 |
| Height/Length (mm) | 373.3 |
| Width (inches) | 16.2 |
| Width (mm) | 411.4 |
| Thickness/Diameter (inches) | 1.4 |
| Thickness/Diameter (mm) | 35.8 |
| Weight (lbs) | 5 |
| Number of Cables | 4 |
| Cable Length (inches) | 36 |
| Cable Length (mm) | 914.4 |
| Connector 1 | N-Male |
| Includes | Articulating arm mount |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Product Condition | New |
