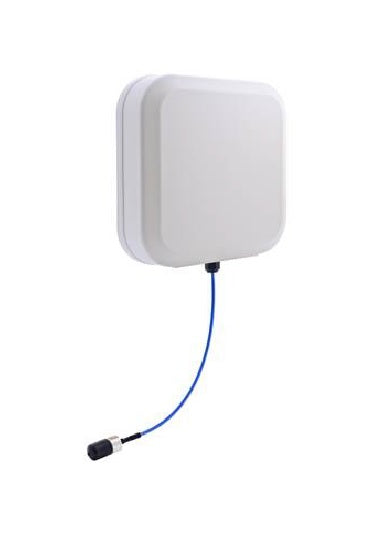

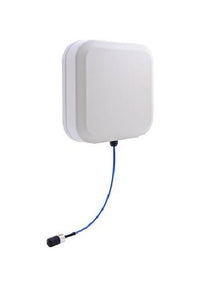

PAV69278PO-30NF: Laird Multiband Directional Panel Antenna 698-2700 MHz LTE with N-Female Connector
PAV69278PO-30NF
Shipping calculated at checkout.
PAV69278PO-30NF: Laird Multiband Directional Panel Antenna 698-2700 MHz LTE with N-Female Connector
More InfoDocumentsSpecifications Reviews
PAV69278PO30NF is an LTE, multiband, low PIM, directional panel antenna operating in 698-2700 MHz frequency range with an N-Female connector. This antenna is designed to provide high level LTE performance in defined coverage zones. This is commonly used for indoor and outdoor networks, wireless machines, automatic meter reading, and security.
***This item is subject to an MOQ of 5 pcs***
More Information
PAV69278PO30NF is an LTE, multiband, low PIM, directional panel antenna operating in 698-2700 MHz frequency range with an N-Female connector. This antenna is designed to provide high level LTE performance in defined coverage zones. This is commonly used for indoor and outdoor networks, wireless machines, automatic meter reading, and security.
Features:
- Frequency: 698-2700 MHz
- Gain: 8.8 dBi
- Environmental Rating: Outdoor - IP67
- Power: 50 Watts Max Input
- Wind Load: 136 MPH
- ESD Protection: DC Grounded
- Connector: N-Female
Documents
Specifications
| SKU | PAV69278PO30NF |
|---|---|
| Manufacturer Part Number | PAV69278PO-30NF |
| Manufacturer | Laird |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-806 MHz |
| Gain | 7.6 dBi |
| Working Frequency 2 | 824-960 MHz |
| Gain 2 | 7.8 dBi |
| Working Frequency 3 | 1710-1880 MHz, 1850-1990 MHz, 1910-2170 MHz |
| Gain 3 | 8.8 dBi |
| Working Frequency 4 | 2300-2500 MHz |
| Gain 4 | 8.7 dBi |
| Working Frequency 5 | 2500-2700 MHz |
| Gain 5 | 7.8 dBi |
| Antenna Style | Panel Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Impedance | 50 Ohm |
| Max Input Power (W) | 50 |
| VSWR: < X: 1 | 2.0:1 |
| Front/Back Ratio (Db) | 10/25 dB |
| Horizontal/Azimuth Beamwidth | 75/63 |
| Vertical/Elevation Beamwidth | 64/51 |
| Height/Length (inches) | 9.82 |
| Height/Length (mm) | 249.4 |
| Width (inches) | 9.8 |
| Width (mm) | 248.5 |
| Thickness/Diameter (inches) | 2.41 |
| Thickness/Diameter (mm) | 61.3 |
| Weight (lbs) | 1.35 |
| Weight (grams) | 620 |
| Color | White |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 300 |
| Connector 1 | N-Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Product Condition | New |
