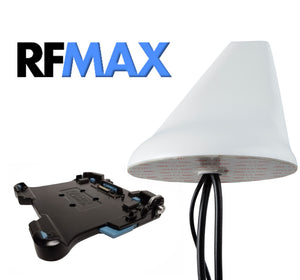

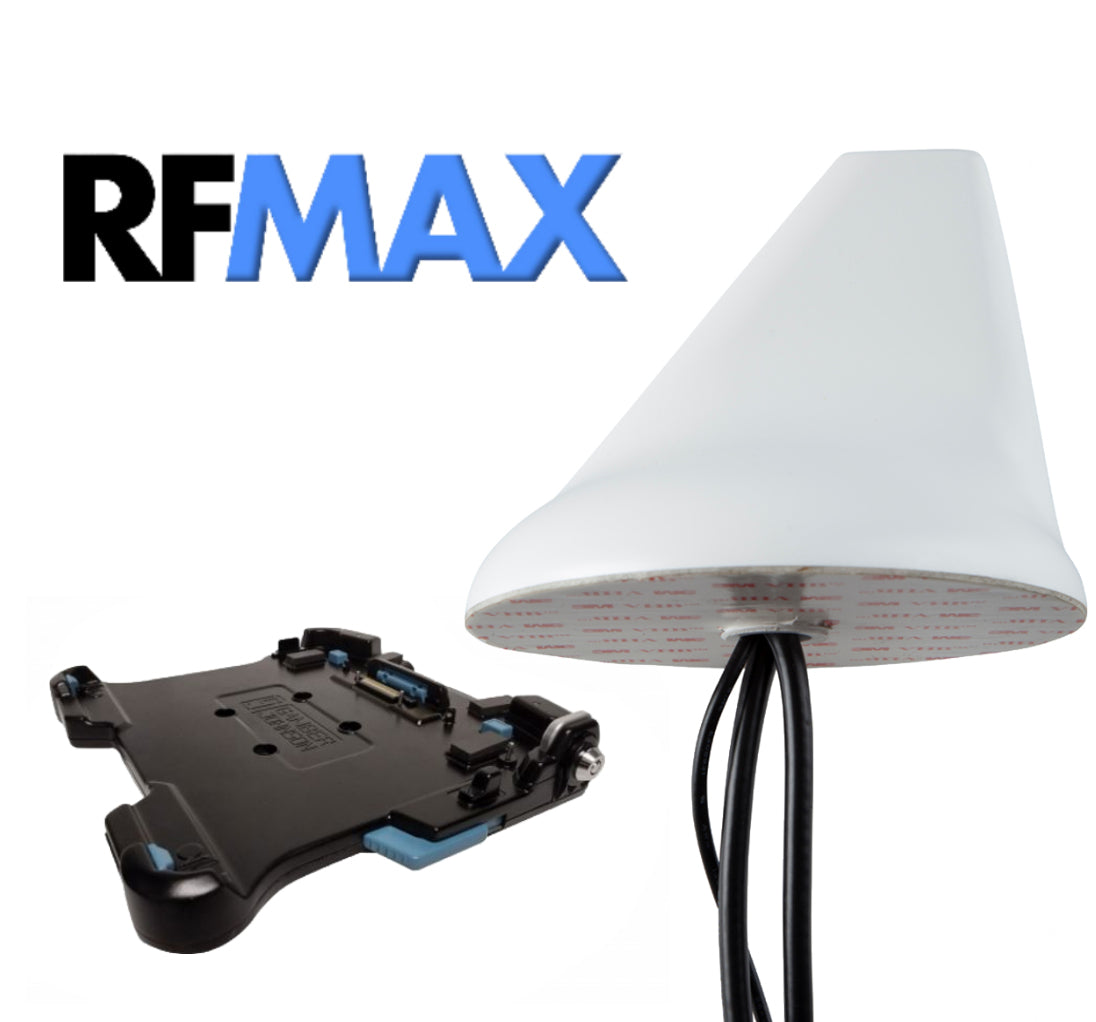

Panasonic Toughbook - Gamber Johnson Docking Station - White Vehicular Antenna. GPS + 3G/4G/LTE Cellular + WiFi

  • $118.00
    Unit price per

GJ-RSF-AW-G4W-TTT


131 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

Panasonic Toughbook - Gamber Johnson Docking Station - White Vehicular Antenna. GPS + 3G/4G/LTE Cellular + WiFi

More InfoDocumentsSpecifications Reviews

The RFMAX GJW-RSF-DB-G4W-TTT is a white, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems, with customized 17 foot long cables with TNC connectors. The antenna is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. These parts are NCNR / Non Cancellable - Non Returnable.

Optimized for use with Panasonic Toughbook Gamber Johnson Docking Stations



More Information

The RFMAX GJW-RSF-DB-G4W-TTT is a white, 3-in-1, roof mounted, SharkFin style antenna for use with the industry leading In-Vehicle modems.  This vehicular multi-band antenna is customized with 17 foot long cables and TNC connectors, and is ideal for combining 1575 MHz GPS, 698-2700 3G/4G/LTE cellular data communication and 2.4 / 5 GHz WIFI/WLAN in one, small, covert package. The GJW-RSF-DB-G4W-TTT has 3 cables to optimally support the different technologies: 3G/4G/ LTE data communication is supported on a low-loss RG-58 cable with TNC connector.  WIFi/ WLAN operates on a separate RG-58 cable. The 26 dB gain GPS antenna has its own RG-174 cable.

FEATURES

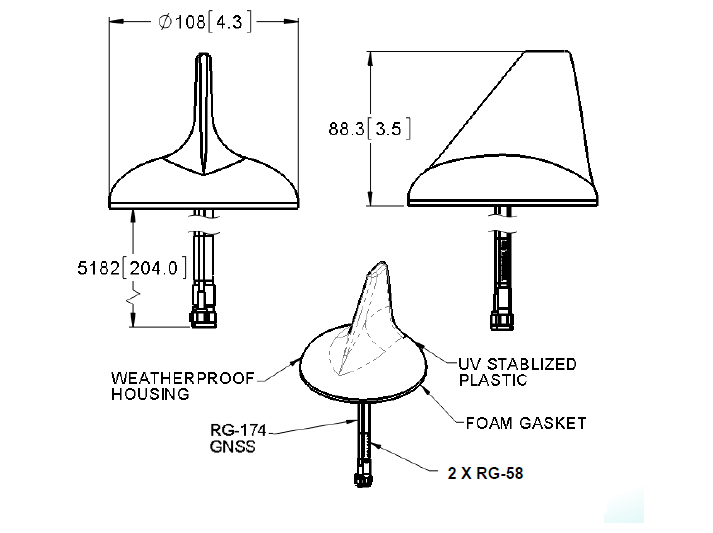

  • Single antenna: 3.5" tall x 4" diameter supports all 3 signals (GPS,Cellular,WIFI)
  • Combines 3 high performance elements: GPS + WIFI + 3G/4G/LTE
  • 3 Separate 17 ft. cables with TNC connectors offer installation flexibility
  • Easily mounted through a single 3/4” hole
  • Note: These parts are NCNR / Non Cancellable - Non Returnable
  • Optimized for use with Panasonic Toughbook Gamber Johnson Docking Stations

Documents


Specifications

SKU GJRSFAWG4WTTT
Manufacturer Part Number GJ-RSF-AW-G4W-TTT
Manufacturer RFMAX
Product Condition New
Antenna Style SharkFin 3-in-1
Antenna Style SharkFin 3-in-1
Antenna Category M2M 698-2700 MHz 3G / 4G LTE + GPS
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-960 / 1710-2170 / 2300-2700 MHz (3G/4G/LTE Celllular )
Gain 1 4.5 dBi
Frequency 2 2400-2485 / 5150-5875 MHz (WiFI/WLAN)
Gain 2 6.5 dBi
Frequency 3 1575.42 MHz (3.3 and/or 5V GPS)
Gain 3 28-30 dBi - Active GPS
Impedance 50 ohms
Max Input Power (W) 20
VSWR: < X: 1 2:01
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 3.5
Height/Length (mm) 89
Width (inches) 4.26
Width (mm) 108
Weight (lbs) 0.94
Weight (grams) 470
Operating Temp (celsius) -40 to +85
Mount Style Direct 3/4" hole
Color White
Connector Type Cable - Bottom Entry
Cable Type RG-58
Number of Cables 3
Cable Length (inches) 17 feet / 204 inches
Connector 1 TNC-Male
IP Rating IP65
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
