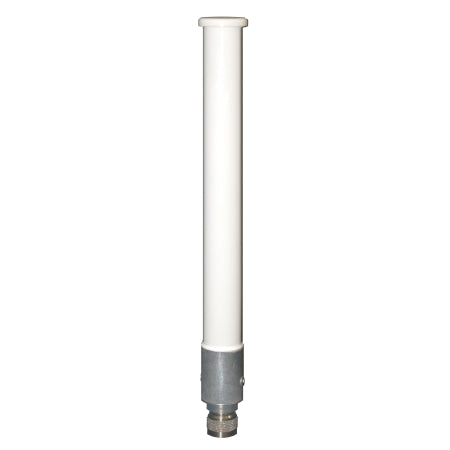

OC24527-FNF: Dual-Band Vertically Polarized Omni Directional Antenna, 2.4-2.5 GHz / 5.150-5.875GHz with N Female connector
OC24527-FNF
Shipping calculated at checkout.
OC24527-FNF: Dual-Band Vertically Polarized Omni Directional Antenna, 2.4-2.5 GHz / 5.150-5.875GHz with N Female connector
More InfoDocumentsSpecifications Reviews
The OC24527-FNF antenna offers full-band coverage for 802.11b/a/g/n and includes all hardware required to mount indoors or outdoors. The antenna provides the “no compromise” performance expected from a single-band radio system in a dual-band radio.
***This item is subject to an MOQ of 4 pcs***
More Information
While many dual-band antennas are a compromise between the two operating bands, the OC24527-FNM provides fullband coverage and omnidirectional coverage over both bands.
Documents
Specifications
| SKU | OC24527FNF |
|---|---|
| Manufacturer Part Number | OC24527-FNF |
| Manufacturer | Laird |
| Antenna Category | WiFi (2.4 & 5.0 GHz) |
| Working Frequency | 2400-2500 MHz |
| Gain | 4.5 dBi |
| Working Frequency 2 | 5150-5875 MHz |
| Gain 2 | 7.5 dBi |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50Ω |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2.0:1 Typical |
| Color | White |
| OK for Outdoor Use | Yes |
| Product Condition | New |
