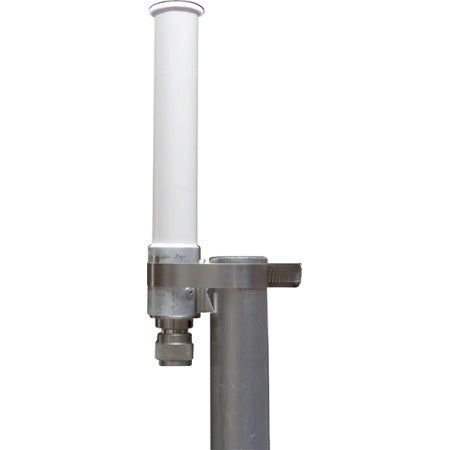

OC24005-FNF: Vertically Polarized Omni Antenna, 2400-2500 MHz, 5 dBi Gain with N Female connector

  • $38.53
    Unit price per

OC24005-FNF


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $35.73
25 $32.75
100 $30.71
250 $28.90
500 $26.92
Factory lead time:  Ships in 8-10 Weeks

OC24005-FNF: Vertically Polarized Omni Antenna, 2400-2500 MHz, 5 dBi Gain with N Female connector

OC24005-FNF: Vertically Polarized Omni Antenna, 2400-2500 MHz, 5 dBi Gain with N Female connector

More InfoDocumentsSpecifications Reviews

OC24005-FNF is a 2400-2500 MHz omnidirectional, collinear, vertically polarized array especially designed to compliment interior or exterior mounted wireless network systems.


More Information

An integrated RF connector is imbedded in the antenna base cap for direct AP mounting. Special venting permits either upright or inverted orientation in outdoor locations. The antenna may also be pole mounted when separation from the AP is required for optimum positioning.

Documents


Specifications

SKU OC24005FNF
Manufacturer Part Number OC24005-FNF
Manufacturer Laird
Product Condition New
Directional or Omni Omnidirectional
Frequency 1 2400-2500 MHz
Gain 1 5 dBi
Impedance 50Ω
Max Input Power (W) 50
VSWR: < X: 1 1.7:1
Material Polycarbonate, UV White
Operating Temp (celsius) -30°C to +70°C
Mount Style Connector Fixed or Mast Mount Kit (Upright/Inverted Orientations)
Color White
Ground Plane Required No
