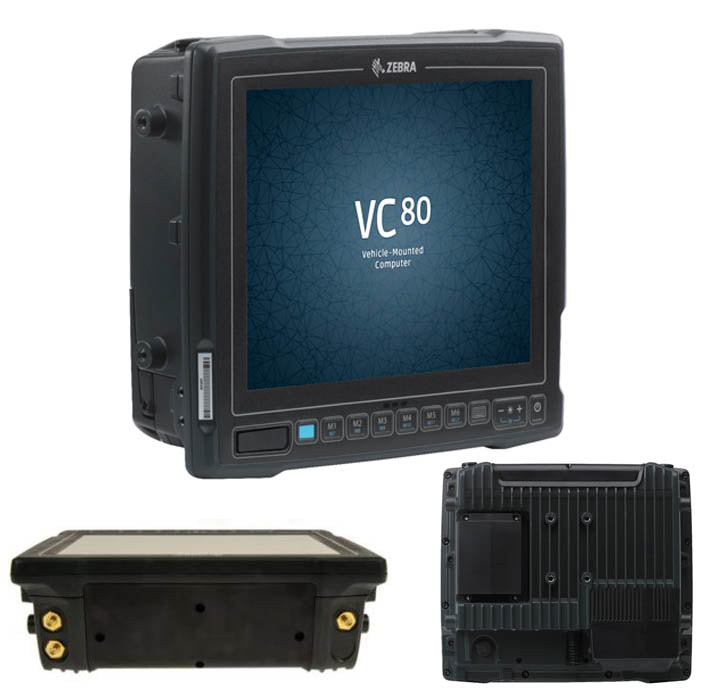

VC80 External WIFI/WLAN + GPS Antenna Range Extender Kit- Mag Mount Antenna Kit For Motorola Zebra VC80 Mobile Computers

  • $199.00
    Unit price per

VC80-WLAN-GPS-KIT


8 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $175.00
Factory lead time:  Ships in 2-4 Weeks

VC80 External WIFI/WLAN + GPS Antenna Range Extender Kit- Mag Mount Antenna Kit For Motorola Zebra VC80 Mobile Computers

More InfoSpecifications Reviews

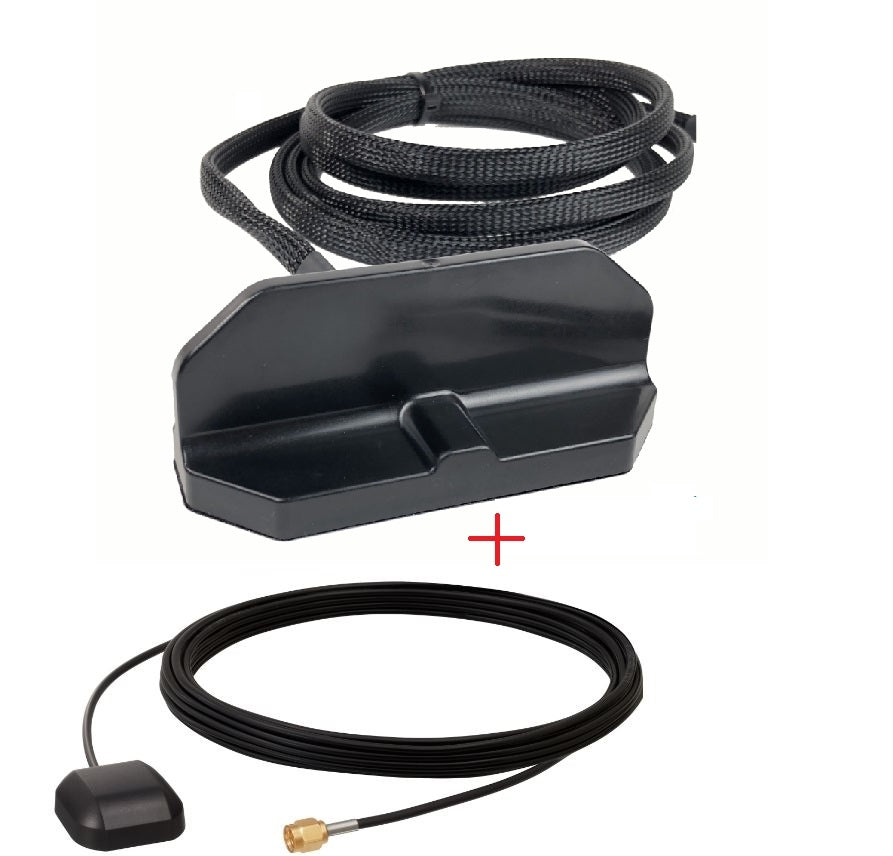

This RFMAX antenna range Extender Kit for the Motorola Zebra VC80 rugged Vehicle-Mounted Mobile Computers consists of TWO antennas for WiFi/WLAN plus a magnetic mount GPS antenna included. These kits are typically used as external mounted Forklift Antennas to boost the range of your VC80's Wi-Fi connectivity by allowing you to install the antennas using the magnetic mounts on top of your forklift so as to eliminate any interference caused by the overhead guard. The kit includes TWO 2.4/5 Ghz antennas, one GPS antenna, magnetic mounts, cables and connectors. During installation, you *MUST* set your computer's settings to default to the external antennas.



More Information

This RFMAX Range Extender Kit for the Motorola VC80 Vehicle-Mounted Mobile Computers provides a significant boost in RF / Wi-Fi connectivity from the VC80, which is typically used as a Forklift Antenna or truck mounted, to the wireless network in the warehouse or distribution center.  In addition, this kit ads a GPS antenna.

This kit consists of TWO antennas for MiMo WiFi/WLAN connectivity operating in the dual bands of 2.4 and 5.0 GHz with a gain of 4.5/5.5 dBi, plus one GPS antenna to track positioning.  All three antennas include a powerful magnetic mount and are designed to mount outside the vehicle to eliminate RF interference and maximize performance.

This kit is equivalent to Zebra antenna kits AN2010 & AN2020, plus 8508851K59


Specifications

SKU VC80WLANGPSKIT
Manufacturer Part Number VC80-WLAN-GPS-KIT
Manufacturer RFMAX
Product Condition New
Antenna Category WiFi (2.4 & 5.0 GHz)
Polarity Vertical
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Frequency 1 2.4 - 2.5 GHz
Gain 1 4.5 dBi
Frequency 2 4.9 - 5.9 GHz
Gain 2 5.5 dBi
Frequency 3 1575 GPS
Gain 3 27 dBi
VSWR: < X: 1 2.0:1
Height/Length (inches) 2.5
Mount Style 3/4 inch NMO High Frequency Mount
Color Black
Connector Type Cable - Side Entry
Cable Type RG-58
Number of Cables 1
Cable Length (inches) 12 feet
Connector 1 RP SMA-Male
Connector 2 SMA-Male
Connector 3 RP SMA-Male
Includes antenna, mag mount, cable and connector
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
