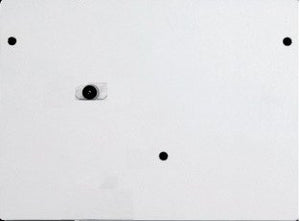

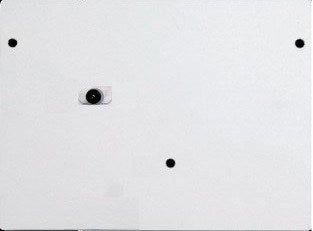

Microsphere Small Form Factor Multi-Band 3G/4G/LTE Patch Antenna - SMA-Female

  • $53.47
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $49.82
25 $46.67
100 $43.25
250 $40.84
500 $38.68
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

Microsphere Small Form Factor Multi-Band 3G/4G/LTE Patch Antenna - SMA-Female

More InfoDocumentsSpecifications Reviews

Microsphere small form factor multi-band 3G/4G/LTE patch antenna for in building wireless with fixed SMA-female connector.

***This item is subject to an MOQ of 11 pcs***

More Information


The widespread use of cellular phones and wireless network applications inside buildings has increased the need for antenna systems that can provide considerable gain over traditional dipole antennas. Laird Technologies’ in-building wireless antennas are particularly applicable in environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. Their surprisingly small size and low profile allow the antennas to be hidden almost anywhere, providing an invisible solution for most applications.


• Applicable for both 3G and 4G solutions
• Global LTE 2600 band
• WiMax 2100/2300/2500
• Domestic Cellular and Global GSM
• Surface Mount Connector
• Conformance to RoHS

• Broadband wireless access service provider
• Campus, healthcare, or transportation terminals
• Indoor Stadium, industrial plants, and processing stations
• Public Safety Radio BENEFITS • Surprisingly small size allows it to be hidden almost anywhere, providing an invisible solution for many applications
• The field pattern is toroidal, providing omnidirectional coverage in any plane around the long axis of the antenna, and two lobes in any plane parallel to the long axis.



Manufacturer Part Number CFS69271-FSMAF
Manufacturer Laird
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 1.5
Working Frequency 2 1710-2170 MHz
Gain 2 3
Working Frequency 3 2500-2700 MHz
Gain 3 4.5
Antenna Style Ceiling iDas Antenna
Polarity Linear
Bands Multi
Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 50
VSWR: < X: 1 2.1
Horizontal/Azimuth Beamwidth 360
Cable Length - PT195 6 Foot
Height/Length (inches) 3.9
Height/Length (mm) 100
Width (inches) 6.45
Width (mm) 164
Thickness/Diameter (inches) 0.63
Thickness/Diameter (mm) 1.6
Operating Temp (celsius) -40 TO +70
Mount Style Flush
Color White
Connector Type Connector - Rear
Cable Type LMR195
Connector 1 SMA-Female
Product Condition New
