YS1505: 150-174 MHz, 5 element, 11 dBi, Aluminum Yagi with Fixed N-Female Connector
YS1505: 150-174 MHz, 5 element, 11 dBi, Aluminum Yagi with Fixed N-Female ConnectorMore InfoSpecifications Reviews

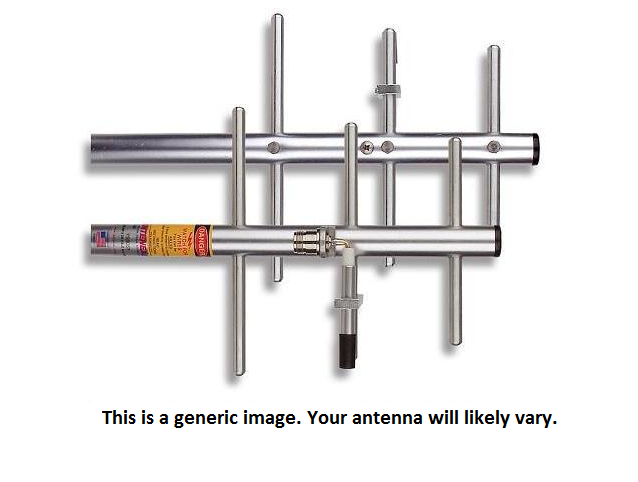

The YS1505 from Laird (formerly Antenex) is a heavy duty, directional Yagi antenna with 5 elements, operating at 150-174 MHz, providing 11 dBi of linear gain.
***This part is subject to an MOQ of 3 pcs***
Laird – Antenex Aluminum Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis Are Gamma Matched for Best Performance. Every antenna Is Covered By A Five-Year Factory Warranty.
The YS1505 from Laird (formerly Antenex) is made from heavy duty aluminum, terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.
FEATURES AND BENEFITS:
- Frequency: 150-174 MHz
- Number of elements: 5
- Gain: 11 dBi
- Fixed N-Female Connector
- Die Cast Mounting Bracket Included
- Five Year Factory Warranty
*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.
|Manufacturer Part Number||YS1505|
|Antenna Category||VHF (132-220 MHz)|
|Working Frequency||150-174 MHz|
|Antenna Style||Yagi Antenna|
|SISO or MIMO||SISO|
|Directional or Omni||Directional|
|VSWR: < X: 1||1.5:1|
|Front/Back Ratio (Db)||17|
|No Of Elements||5|
|Operating Temp (celsius)||(-30 to 70) C|
|OK for Outdoor Use||Yes|
|Ground Plane Required||No|
