YS1503: 150-174 MHz, 3 element, 9 dBi, Aluminum Yagi with Fixed N-Female Connector

  • $159.43
    Unit price per

YS1503


13 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $147.70
25 $141.47
100 $134.82
250 $133.03
500 $132.15
Lead time for qty above 13:  Ships in 4-6 Weeks

Shipping calculated at checkout.

YS1503: 150-174 MHz, 3 element, 9 dBi, Aluminum Yagi with Fixed N-Female Connector

More InfoSpecifications Reviews

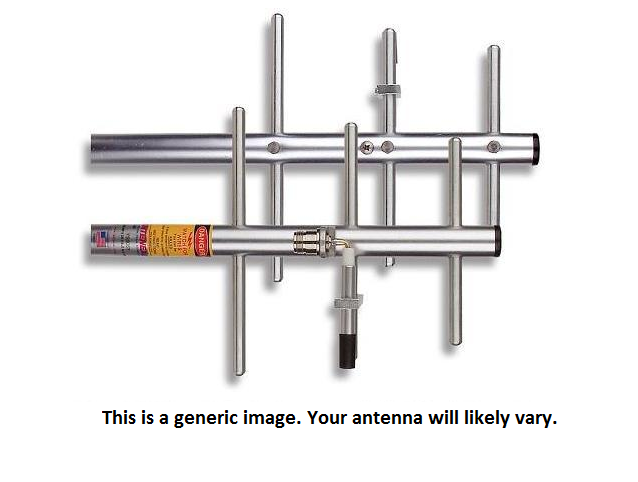

The YS1503 from Laird (formerly Antenex) is a heavy duty, directional Yagi antenna with 3 elements, operating at 150-174 MHz, providing 9 dBi of linear gain.


More Information

Laird – Antenex Aluminum Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis Are Gamma Matched for Best Performance. Every antenna Is Covered By A Five-Year Factory Warranty.

The YS1503 from Laird (formerly Antenex) is made from heavy duty aluminum, terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.

FEATURES AND BENEFITS:

•Frequency: 150-174 MHz •Number of elements: 3 •Gain: 9 dBi •Fixed N-Female Connector •Die Cast Mounting Bracket Included •Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.


Specifications

SKU YS1503
Manufacturer Part Number YS1503
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 150-174 MHz
Gain 9 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 17
Horizontal/Azimuth Beamwidth 72
Vertical/Elevation Beamwidth 57
No Of Elements 3
Height/Length (inches) 72
Height/Length (mm) 1828.8
Weight (lbs) 3
Weight (grams) 1360.8
Operating Temp (celsius) (-30 to 70) C
Color Chrome
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
