Laird – Antenex Fully Welded, Black Anodized Yagi Antennas Are Simply The Best Choice for High Performance And Long Service Life. These Yagis Are Made With a 7/8 Inch Aluminum Boom To hold up to the elements.  Every antenna Is Covered By A Five-Year Factory Warranty.

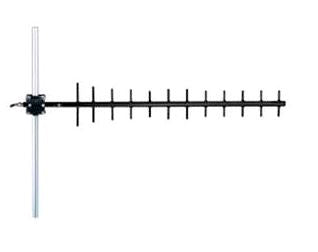

The YB4506  from Laird (formerly Antenex) is made from heavy duty aluminum, then Black anodized and have their elements fully welded to the boom.  Each unit is terminated with a fixed N-Female connector, and includes a basic mounting bracket kit.

FEATURES AND BENEFITS:

• Black Anodized to prevent icing of the elements
• Frequency: 450-470 MHz
• Number of elements: 6
• Gain: 12 dBi
• Length: 44 inches
• Power Handling: 300 Watts
• Fixed N-Female Connector
• Die Cast Mount Bracket Included
• Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.
