S9028PCL12NF: 10x10 Inch IP54 LHCP RFID Antenna - With 4 Mounting Studs.

  • $140.07
    Unit price per

S9028PCL12NF


4 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

S9028PCL12NF: 10x10 Inch IP54 LHCP RFID Antenna - With 4 Mounting Studs.

More InfoDocumentsSpecifications Reviews

Laird S9028PLR12NF 10x10 inch (RH) circularly polarized RFID panel antenna for 902-928 MHz (FCC) with 12 inch cable, N-female connector and 4 mounting studs.



More Information

902-928 MHz 9 dBic CIRCULAR POLARITY PANEL

The Laird S9028PCL12NF antenna is a circularly polarized panel that provides reception and transmission of signals in the 902-928 MHz frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band. Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type.

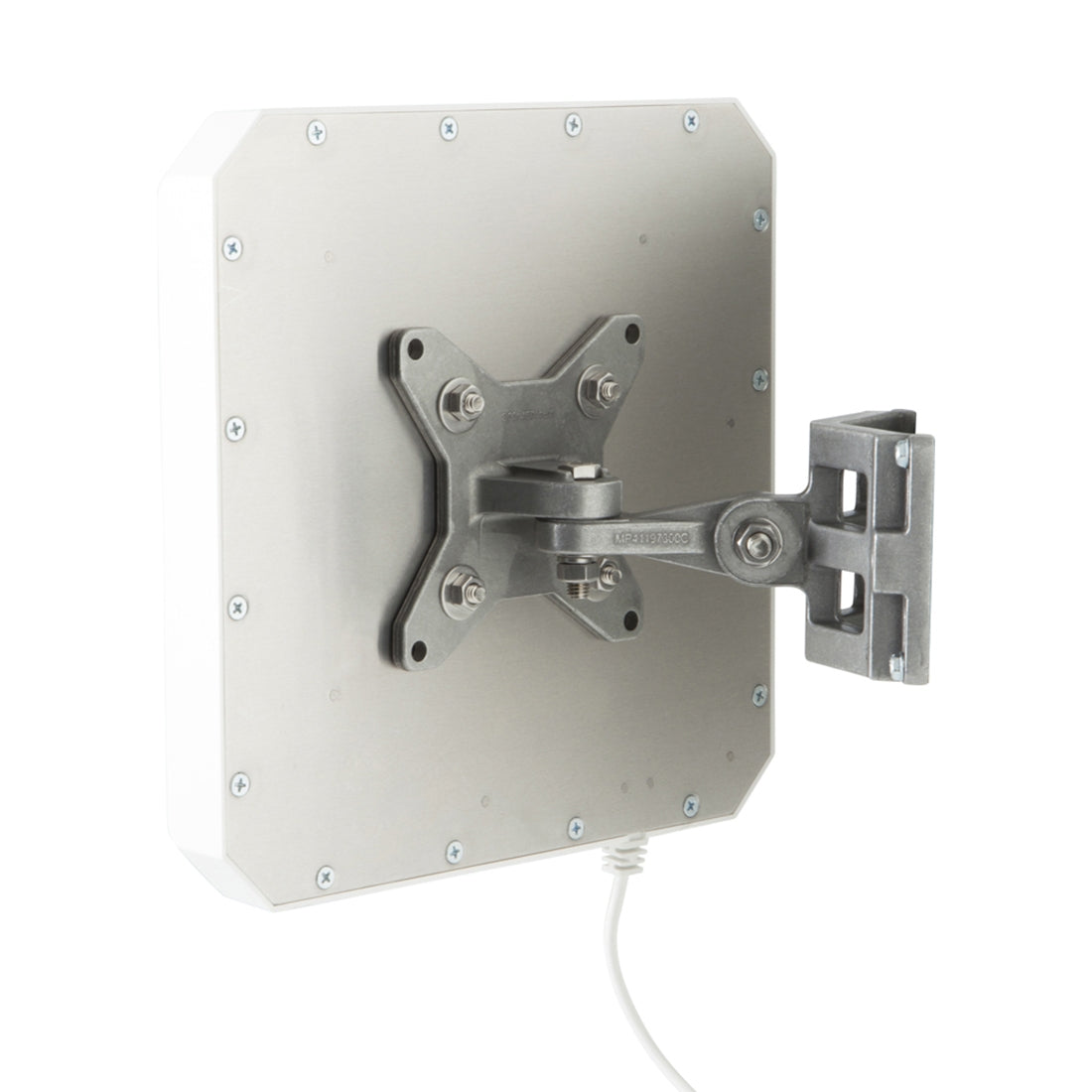

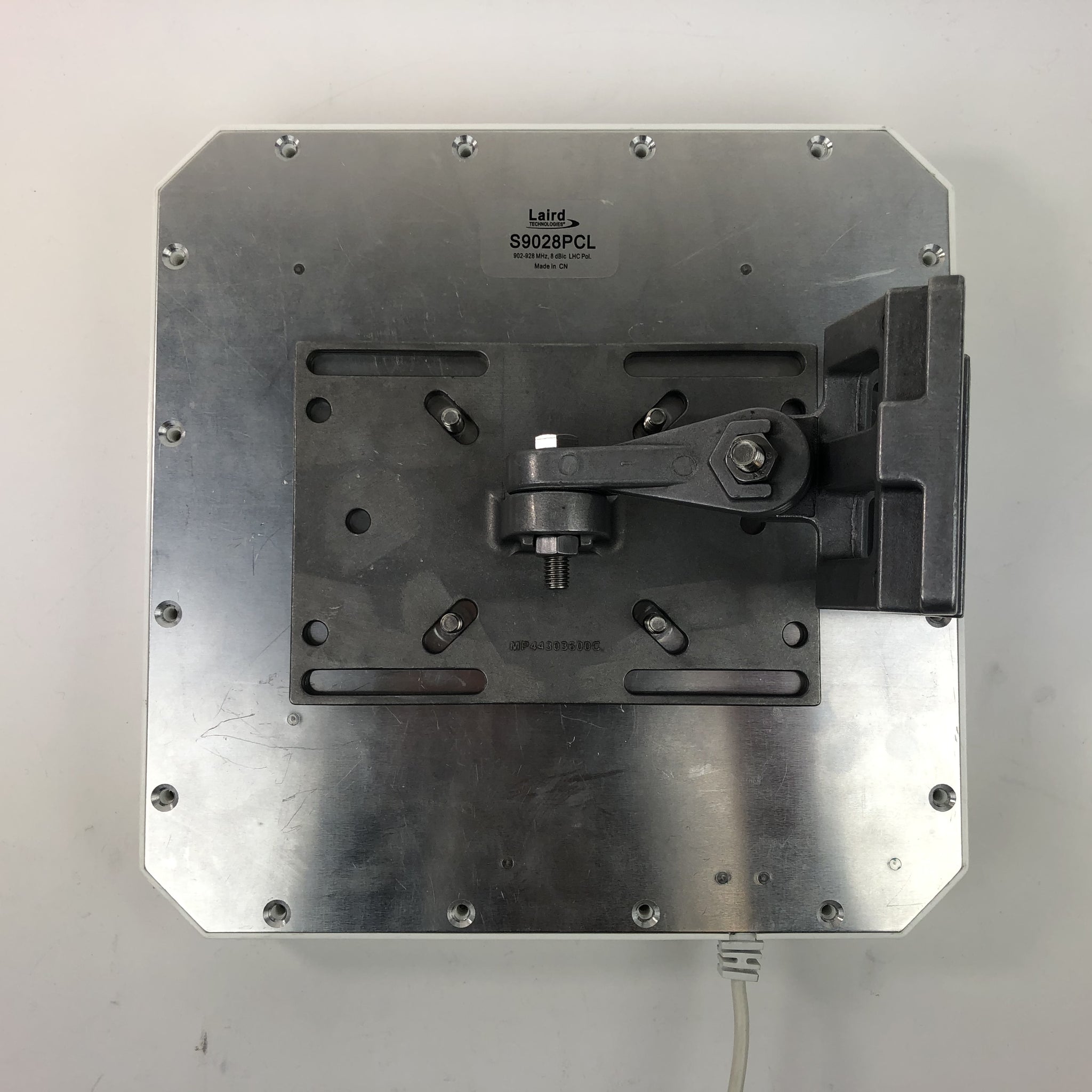

The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted with (4) threaded mounting studs. An optional articulating mount allows either wall or mast mounting.

8 dBi gain 10x10 inch (LH) circularly polarized RFID panel antenna for 902-928 MHz. 12 inch cable & N-female connector. 4 mounting studs


Documents


Specifications

SKU S9028PCL12NF
Manufacturer Part Number S9028PCL12NF
Manufacturer Laird
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Left Hand Circular
Gain 9
Horizontal/Azimuth Beamwidth 70 degree
Vertical/Elevation Beamwidth 70 degree
Connector Type Cable - Bottom Entry
Connector 1 N-Female
Cable Type LMR195
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 10.2
Height/Length (mm) 259.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.13
Weight (grams) 514
Material Polycarbonate
Color White
Mount Style (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing
Includes 4 each: flat washers, lock washers & hex nuts
