• $139.00
    Unit price per

S8655PLNF


20 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

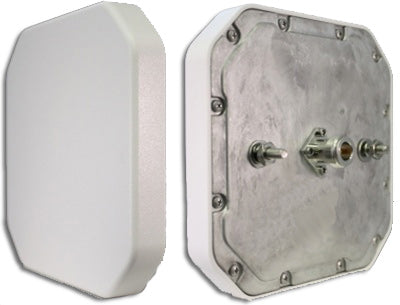

S8655PLNF 5x5 Inch Left Hand Circular Polarity RFID Panel Antenna - N Female Connector

More InfoDocumentsSpecifications Reviews

The Laird S8655PLNF is the latest addition to the Laird RFID antenna lineup, and offers no- compromise performance in a compact and rugged package. This 5x5 inch antenna has a fixed right angle SMA female connector. Equivalent to ETSI version of Zebra AN720


More Information

The Laird S8655PLNF is the latest addition to the RFMAX RFID antenna lineup, and offers no- compromise performance in a compact and rugged package. At only 5.2” square the antenna offers a gain specification of 5.5 dBic and axial ratio better than 2 dB. In effect the antenna is providing the performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage because of its reduced size.

FEATURES

• Low profile
• Extremely low VSWR and axial ratio
• IP 67 Rated • Weather and UV resistant radome
• Wide range of connector options
• Left hand and right hand CP versions


Documents


Specifications

SKU S8655PLNF
Manufacturer Part Number S8655PLNF
Manufacturer Laird
Product Condition New
Antenna Category RFID 865-868 MHZ ETSI
Bands Single
IP Rating IP67
Polarity Left Hand Circular
Gain 5.5
Horizontal/Azimuth Beamwidth 100 degree
Vertical/Elevation Beamwidth 100 degree
Connector Type Connector - Rear
Connector 1 N-Female
Height/Length (inches) 5.2
Height/Length (mm) 132.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 0.71
Thickness/Diameter (mm) 18
Width (inches) 5.2
Width (mm) 132
Weight (lbs) 0.8
Weight (grams) 364
Material Polycarbonate
Mount Style Threaded Stud 2x #10-32
