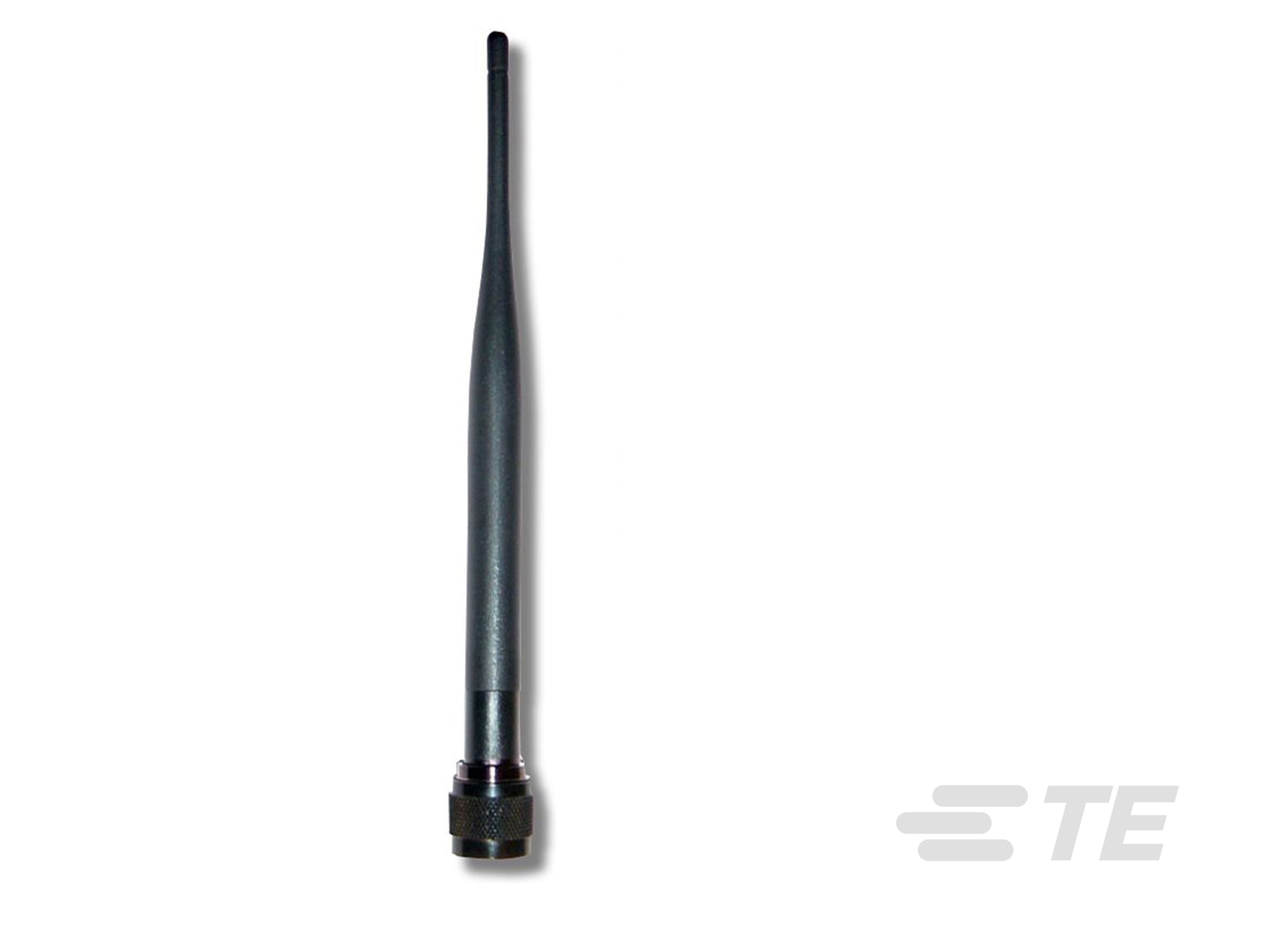

7.6 Inch Tri-Band 2.4 / 5.3 / 5.8 GHz Hi Gain Omni Antenna with Knuckle - N-Male

  • $19.63
    Unit price per

RD2458-5-NM


10 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $18.20
25 $16.68
100 $15.64
250 $14.72
500 $13.71
Factory lead time:  Ships in 4-6 Weeks

7.6 Inch Tri-Band 2.4 / 5.3 / 5.8 GHz Hi Gain Omni Antenna with Knuckle - N-Male

More InfoDocumentsSpecifications Reviews

The Laird RD2458 tri-band omni antenna features a fully articulating knuckle, N male connector and operates in the 2.4 / 5.3 / 5.8 GHz frequencies for WIFI / WiMAX applications.


More Information

The Laird tri-band RD2458-5 series of antennas are high-gain (3 dB @ 2.4 GHz and 5 dBi @ 5 GHz) omnidirectional antennas designed for indoor use. Rugged and reliable, the heavy duty knuckle of the antenna gives angular detents at 0, 45, and 90°. The antenna features a 360° horizontal transmission pattern and a 90° vertical transmission pattern. These antennas offer a choice of connector options for maximum design flexibility (SMA, RPSMA, RPTNC and N male).

FEATURES

  • Tri-band operation: 2.4 GHz, 5.3 GHz, 5.8 GHz
  • 0, 45, and 90° knuckle detents (N-male not applicable)
  • Extends range of wireless access points or wireless bridges
  • N-male style connector
  • Also available with SMA, RPSMA, RPTNC connectors

APPLICATIONS

  • 802.11a/b/g wireless equipment
  • OEM equipment
  • Amplified antennas
  • 802.11a/b/g applications
  • WiMAX

Documents


Specifications

SKU RD24585NM
Manufacturer Part Number RD2458-5-NM
Manufacturer RFMAX
Product Condition New
Antenna Style External N Male Connector with Elbow
Antenna Style External N Male Connector with Elbow
Antenna Category M2M 2.4 and 5.0 GHz WIFI / WLAN
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 2400 MHz
Gain 1 2.2dBi
Frequency 2 5150 MHz
Gain 2 4dBi
Frequency 3 5725 MHz
Gain 3 5dBi
Impedance 50 ohms
Max Input Power (W) 10
VSWR: < X: 1 1.5:1
Height/Length (inches) 10.75
Height/Length (mm) 229
Width (inches) 10.75
Width (mm) 229
Thickness/Diameter (inches) 2.6
Thickness/Diameter (mm) 67
Weight (lbs) 0.8
Weight (grams) 22
Operating Temp (celsius) (-10°C) to 70°C
Color Black
Connector Type Connector - Rear
Connector 1 N-Male
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
