YA911: 860-960 MHz, 11 element, 11 dBi NLOS Yagi with 18 Inch Pigtail & N-Female Connector

  • $74.13
    Unit price per


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $70.57
25 $65.38
100 $62.64
250 $59.68
500 $58.91
Lead time:  Ships in 10-12 Weeks

Shipping calculated at checkout.

YA911: 860-960 MHz, 11 element, 11 dBi NLOS Yagi with 18 Inch Pigtail & N-Female Connector

More InfoDocumentsSpecifications Reviews

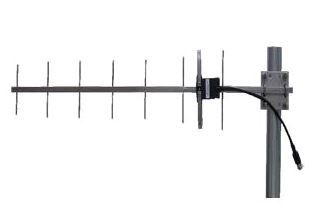

The YA911 (formerly Pacific Wireless) is a stainless steel directional Yagi antenna with 11 elements, operating at 860-960 MHz, providing 11 dBi of linear gain.

***This item is subject to an MOQ of 7 pcs***

More Information

Fully Stainless Steel Yagi Antennas Are An Economical Choice for High Performance And Long Service Life. These Yagis optimized for use in the 900 MHz ISM band.  Every antenna Is Covered By A Five-Year Factory Warranty.

The YA911 (formerly Pacific Wireless) is made from stainless steel, terminated with an 18 inch cable and N-Female connector, and includes a basic mounting bracket kit.


  • Frequency: 860-960 MHz
  • Number of elements: 11
  • Gain: 11 dBi
  • 18 inch pigtail & N-Female Connector
  • Mounting Bracket Included
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.



Manufacturer Part Number YA9-11
Manufacturer Laird
Antenna Category 900 MHz
Working Frequency 860-960 MHz
Gain 11 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
No Of Elements 11
Height/Length (inches) 35
Height/Length (mm) 889
Weight (lbs) 4.6
Weight (grams) 2086.5
Operating Temp (celsius) (-30 to 70) C
Color Chrome
Cable Length (inches) 18
Cable Length (mm) 457
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Ground Plane Required No
Product Condition New
