PA24-19: 15x15 inch High Gain Linear Panel Antenna for WiFi / WLAN 2.4 GHz

PA24-19

0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $153.57
25 $147.09
100 $140.18
250 $138.31
500 $137.40
Lead time for additional Qty:  Ships in 12-14 Weeks
PA24-19: 15x15 inch High Gain Linear Panel Antenna for WiFi / WLAN 2.4 GHz

PA24-19: 15x15 inch High Gain Linear Panel Antenna for WiFi / WLAN 2.4 GHz

More InfoDocumentsSpecifications Reviews

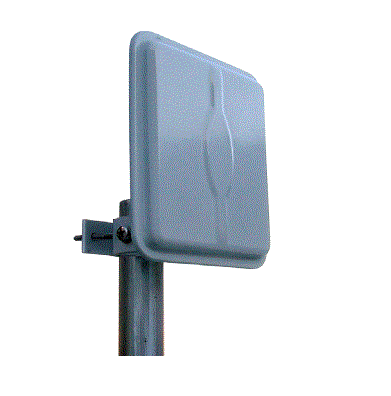

The PA24-19 flat panel directional antenna by Laird offers high-gain in a thin, low- profile package. The antenna is 15x15 inches, and offers 19 dBiL gain.  Unit is constructed of an off white color UV resistant ASA plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization. The included heavy duty pole mount bracket allows up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be wall or pole mounted. The PA24-19 comes with an integrated N female connector standard.


More Information

The PA24-19 flat panel directional antenna by Laird offers high-gain in a thin, low- profile package. The antenna is constructed of an off white color UV resistant ASA plastic radome with an aluminum backplate. The antenna can be used in horizontal or vertical polarization. The included heavy duty pole mount bracket allows up or down tilt adjustment and the stainless steel hardware assures a long service life. The antenna can be wall or pole mounted. The PA24-19 comes with an integrated N female connector standard.

FEATURES

  • Size 15.3x14.6x0.8 inches
  • High gain: 19 dBiL
  • 3 db beamwidth (H&V) 17.5 degrees
  • Input Power - rated to 100 watts
  • Weight ~ 6 lbs.

Documents

PA24-19

We Also Recommend

Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
In Stock
RF MAX - RFID POWER MAPPER
Handheld 865-928 MHz RFID Antenna Power Field Mapper for FCC & ETSI
View Details
FG9023 Fiberglas Omni Base Antenna
FG9023
FG9023: Laird / Antenex Outdoor 900mhz Fiberglass Base Station Omni Antenna With Fixed N-Female Connector, 5 dBi
View Details
R9029-WHP-RTF: High Performance - Wideband 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI
In Stock
R9029-WHP-RTF
R9029-WHP-RTF: High Performance - Wideband 12x12 inch IP-67 Circularly Polarized RFID Antenna - FCC & ETSI

View Details
R9028-LPV-SSF: RFID Antenna for Impinj-Zebra-Alien-ThingMagic RFID Readers. Low Profile,10x10 Inch with 100mm VESA Mount
In Stock
R9028-LPV-SSF
R9028-LPV-SSF: RFID Antenna for Impinj-Zebra-Alien-ThingMagic RFID Readers. Low Profile,10x10 Inch with 100mm VESA Mount
View Details
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
In Stock
R9029-XL-12SSF
R9029-XL-12SSF: 902-928 MHz Extra Large, 30x12 inch Circularly Polarized RFID Antenna - FCC
View Details

Specifications

SKU PA2419
Manufacturer Part Number PA24-19
Manufacturer Laird
Antenna Category WiFi (2.4 & 5.0 GHz)
Bands Single
IP Rating Weatherproof
Polarity Vertical
Gain 19
Horizontal/Azimuth Beamwidth 17.5
Vertical/Elevation Beamwidth 17.5
Connector Type Connector - Rear
Connector 1 N-Female
Height/Length (inches) 15.3
Height/Length (mm) 389
Operating Temp (celsius) -40 to +70C
Thickness/Diameter (inches) 0.8
Thickness/Diameter (mm) 20
Width (inches) 14.6
Width (mm) 368
Weight (lbs) 6
Weight (grams) 1700
Material ABS Housing
Color White
Mount Style Mast or Wall
Includes Basic Wall / Mast Mount
Product Condition New
