S9028PCL12NF: HERO Certified 10x10 Inch Monostatic RFID Panel Antenna

  • $136.00
    Unit price per

S9028PCL12NF-HERO Certified


4 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

S9028PCL12NF: HERO Certified 10x10 Inch Monostatic RFID Panel Antenna

More InfoDocumentsSpecifications Reviews

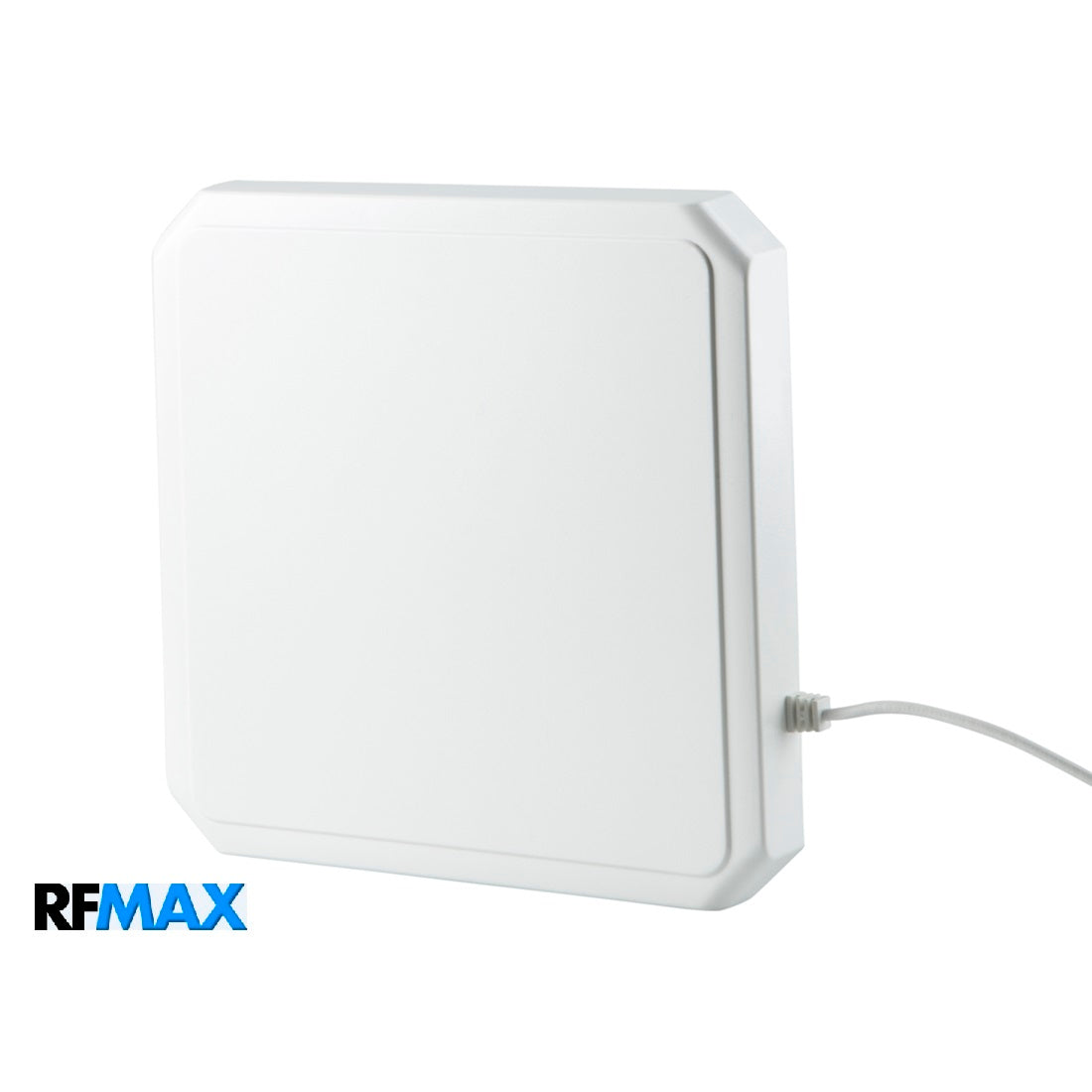

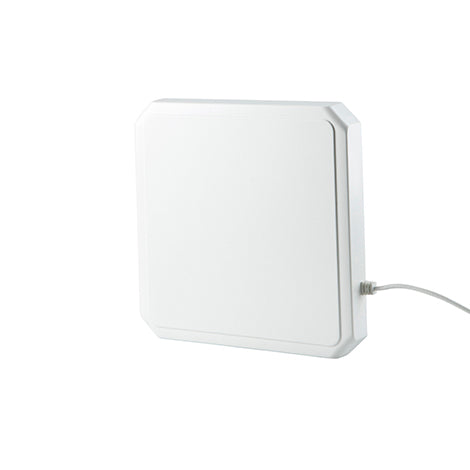

The Laird / RFMAX S9028PLR12NF is HERO Certified by the US Navy for use around ordance.  This is a mono-static circular polarity 10x10 inch panel antenna for UHF RFID operating at 902-928 MHz (FCC) This model is fully compatible with the Impinj R420 reader..

Features:

  • Hero Certified by US Navy
  • Frequency: 902-928 MHz, Monostatic
  • Beamwidth: 70 degrees
  • Compatible with Impinj R420 reader
  • Polarity: Circular Polarity
  • Flammability Rating: UL94-V2
  • Gain: 9.0 dBic
  • Axial Ratio: 1.0 db typical
  • Input Impedance: 50 ohms
  • Connector: N Type Female
  • Suggested Antenna Bracket: EZ-M6-COMBO


More Information

902-928 MHz 9 dBic CIRCULAR POLARITY PANEL

The RFMAX S9028PCL12NF antenna is a circularly polarized panel that provides reception and transmission of signals in the 902-928 MHz frequency band. The antenna achieves maximum efficiency and performance across the entire frequency band. Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type.

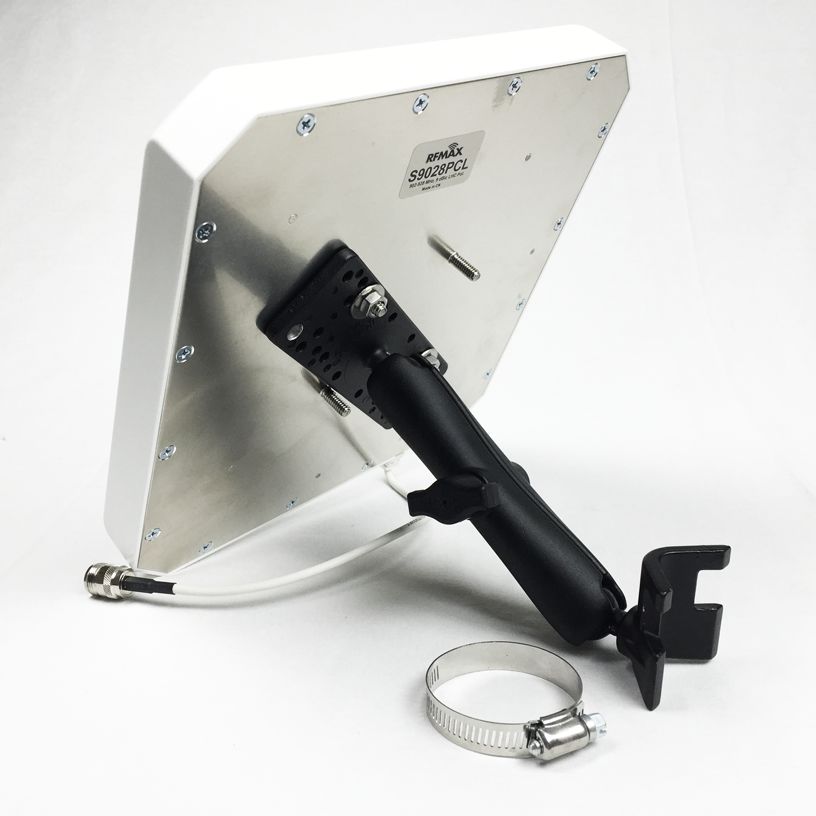

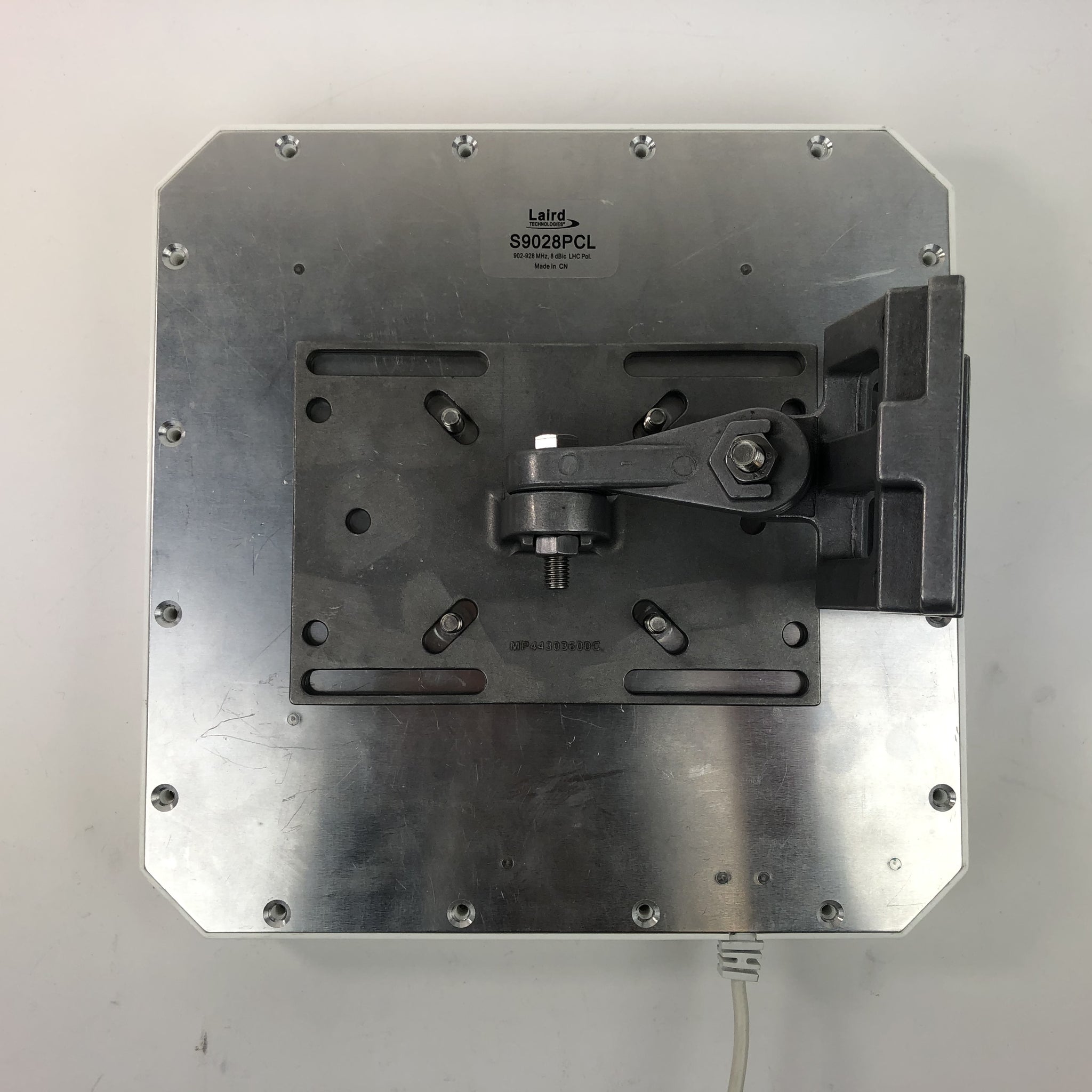

The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted with (4) threaded mounting studs. An optional articulating mount allows either wall or mast mounting.

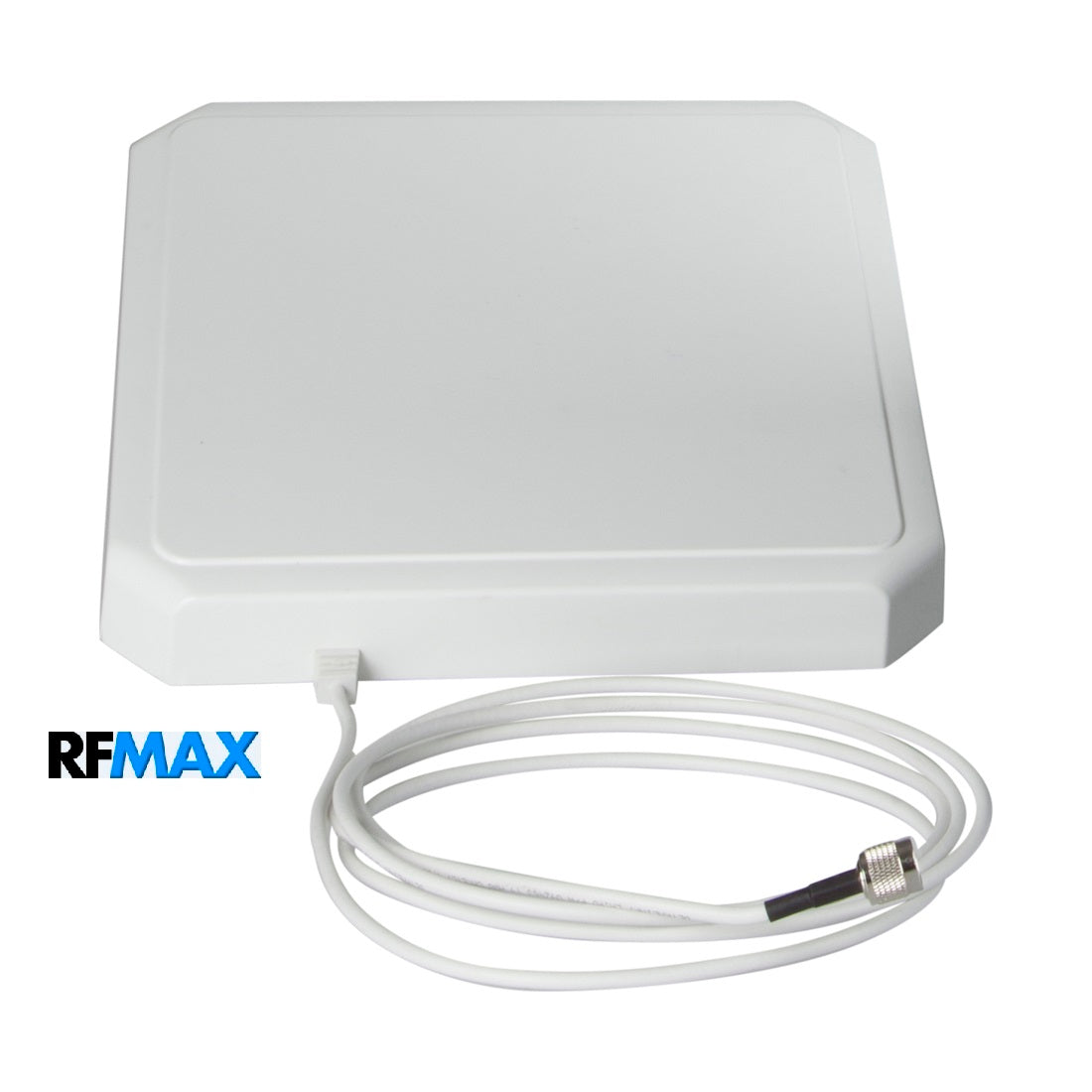

8 dBi gain 10x10 inch (LH) circularly polarized RFID panel antenna for 902-928 MHz. 12 inch cable & N-female connector. 4 mounting studs.

100% Electrically equivalent to Zebra # AN480 - FCC, with 4 stud mounting package.


Documents


Specifications

SKU S9028PCL12NFHERO
Manufacturer Part Number S9028PCL12NF-HERO Certified
Manufacturer RFMAX
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Left Hand Circular
Gain 9
Horizontal/Azimuth Beamwidth 70 degree
Vertical/Elevation Beamwidth 70 degree
Connector Type Cable - Bottom Entry
Connector 1 N-Female
Cable Type LMR195
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 10.2
Height/Length (mm) 259.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.13
Weight (grams) 514
Material Polycarbonate
Color White
Mount Style (4) 1/4-20 Threaded Studs at 63.5 mm / 2.5 inch spacing
Includes 4 each: flat washers, lock washers & hex nuts
