PLC1669N: 166-174 MHz, 9 element, 13 dBi Heavy-Duty welded, Yagis with Pigtail cable & N-Female Connector

  • $578.00
    Unit price per


0 in stock. Subject to factory lead time
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

PLC1669N: 166-174 MHz, 9 element, 13 dBi Heavy-Duty welded, Yagis with Pigtail cable & N-Female Connector

More InfoDocumentsSpecifications Reviews

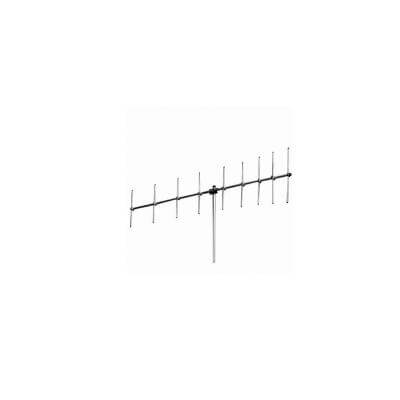

The PLC1669N from Laird (formerly Cushcraft) is heavy duty, fully welded, directional Yagi antenna with 9 elements, operating at 166-174 MHz, providing 13 dBi of linear gain.

*Made in the USA*

More Information

Laird – Cushcraft’s PLC series of Heavy-Duty Fully Welded, Outdoor Rated Yagi Antennas Are Designed To hold up to the elements.  Every antenna Is Covered By A Five-Year Factory Warranty.

The PLC1669N  from Laird (formerly Cushcraft) is a heavy duty, all-welded, directional Yagi antenna capable of handling up to 250 watts of input power.  All of the PLC Yagis, have their elements fully welded to the boom. These welds are on the inside of the boom to eliminate noise and enhance electrical performance.  Complete weatherability is ensured by enclosing the feed system in a potted PVC radome that will stand up to your most demanding requirements. The pigtail feed will withstand a 50 pound pull, and makes connector weatherproofing simple. There are no moveable components, so you never have to worry about adjustments or loose parts. All hardware is stainless steel for long life.


  • Frequency: 166-174 MHz
  • Number of elements: 9
  • Gain: 13 dBi
  • Length: 131 inches
  • Power Handling: 250 Watts
  • Five Year Factory Warranty

*Please note: Yagi antennas are able to be mounted in either the vertical or horizontal plane. The waves leave Yagi antennas in the same plane as the elements. If the elements are up and down, the polarity (or polarization) is vertical. It is necessary to have antennas at both ends of the communications link of the same polarity. Mobile systems traditionally have all antennas vertically polarized. For dedicated Yagi-to-Yagi links either polarization may be selected but be sure to choose the same for both ends of the path.



Manufacturer Part Number PLC1669N
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 166-174 MHz
Gain 13 dBi
Antenna Style Yagi Antenna
Polarity Linear
Bands Single
Directional or Omni Directional
Impedance 50 Ohm
VSWR: < X: 1 1.5:1
Front/Back Ratio (Db) 20
Horizontal/Azimuth Beamwidth 45
Vertical/Elevation Beamwidth 35
No Of Elements 9
Height/Length (inches) 131
Height/Length (mm) 3327.4
Weight (lbs) 10
Weight (grams) 4535.9
Operating Temp (celsius) (-30 to 70) C
Color Chrome
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Product Condition New
