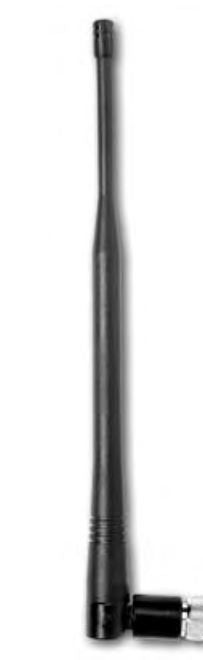

EXR902BN: 902-960 MHz, 1/2 Wave for ISM/Trunking Tuf Duck Antenna with BNC-Male Connector
EXR902BN
EXR902BN: 902-960 MHz, 1/2 Wave for ISM/Trunking Tuf Duck Antenna with BNC-Male Connector
More InfoSpecifications Reviews***This item is subject to an MOQ of 19 pcs***
More Information
Since their introduction by Centurion Wireless (now Laird Technologies) in 1980, the "Tuf Duck" line of portable radio antennas have become the industry standard for two-way radio applications. These antennas have earned a reputation for rugged reliability in hazardous situations and harsh environments. As the industry leader in two-way radio antenna products for OEM and aftermarket applications, Laird Technologies produces these antennas in a diverse number of styles including: quarter wave, 1/4 wave whip, 1/4 wave helical, 1/4 wave stubby, 1/2 wave, Right angle helical, and Right angle whip.
The various Tuf Duck models include Low-Mid Band, UHF, VHF, Trunking and Cellular antennas and are approved for use with radios from Bendix King, EF Johnson, Itron, MaCom, Kenwood, Maxon, Vertex/Standard, Motorola, Midland and Tait. Join the ranks of leading police departments and wireless communications companies that rely on Tuf Duck antenna technology and engineering innovation.
Features for this EXR902BN antenna:
- Style: EXR. ½ Wave for ISM/Trunking
- Injection Molded with Adjustable 90 Degree Elbow.
- Frequency Range: 902-960 MHz
- Gain: High gain
- Average Length: 8.85 – 9.5 inches
- Connector Type: BNC-Male
- Polarization: Vertical
- Impedance: 50 ohms
- VSWR: 1.5:1 at resonance
- RF Power Handling: 50 watts
- Temperature Range: -40 to +85C
- Drop Test: 1 Meter
Specifications
SKU | EXR902BN |
---|---|
Manufacturer Part Number | EXR902BN |
Manufacturer | Laird |
Antenna Category | 900 MHz |
Working Frequency | 902-960 MHz |
Gain | High gain |
Polarity | Vertical |
Bands | Single |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 ohm |
Max Input Power (W) | 50 Watts |
VSWR: < X: 1 | 1.5 : 1 |
Horizontal/Azimuth Beamwidth | 360 |
Height/Length (inches) | 9.25" - 9.5" |
Operating Temp (celsius) | (-40) to 85 C |
Connector Type | Connector - Bottom |
Connector 1 | BNC-Male |
Product Condition | New |
