QWB8063: 806-866 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.

$21.93
Unit price per

QWB8063

Quantity:

0 in stock. Subject to factory lead time

Volume Price Breaks
Quantity:	Unit Price:
10	$20.01
25	$18.55
100	$17.00
250	$15.48
500	$14.18

Lead time: Ships in 4-6 Weeks

Shipping calculated at checkout.

QWB8063: 806-866 MHz Black Quarter Wave Whip Antenna with NMO Base. Metallic Ground Plane Required.

More Info Specifications Reviews

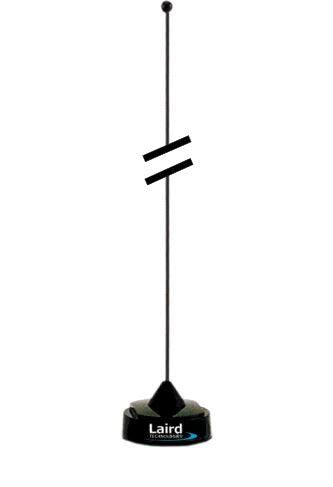

The Laird/Antenex QWB8063 is a(n) 16.25 inch long, stainless steel quarter wave omnidirectional whip antenna with black finish for operation in the 806-866 MHz frequency range, with NMO base. Metal ground plane is required.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

***This item is subject to an MOQ of 36 pcs***

More Information

The Laird / Antenex QWB8063 is an 16.25 inch long, chrome, ¼ wave whip antenna with NMO base. This antenna requires a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 200 watts max power and operates in the 806-866 MHz MHz range.

Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.

FEATURES:

Frequency Range: 806-866 MHz MHz
Gain: Unity: 5.15 dBi
Length: 16.25 inches
FIVE YEAR FACTORY WARRANTY

Specifications

SKU	QWB8063
Manufacturer Part Number	QWB8063
Manufacturer	Laird
Antenna Category	700/800 MHz
Working Frequency	806-866 MHz
Gain	5.15 dBi
Antenna Style	Quarter Wave Whip
Polarity	Vertical
Bands	Single
SISO or MIMO	SISO
Directional or Omni	Omnidirectional
Impedance	50 Ohm
VSWR: < X: 1	2.0:1
Height/Length (inches)	16.25
Height/Length (mm)	412.75
Material	Stainless Steel
Color	Black
Connector 1	NMO
OK for Outdoor Use	Yes
Vehicular	Yes
Ground Plane Required	Yes
Product Condition	New
