Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions.  Every Antenna Is Covered By A Five-Year Factory Warranty.

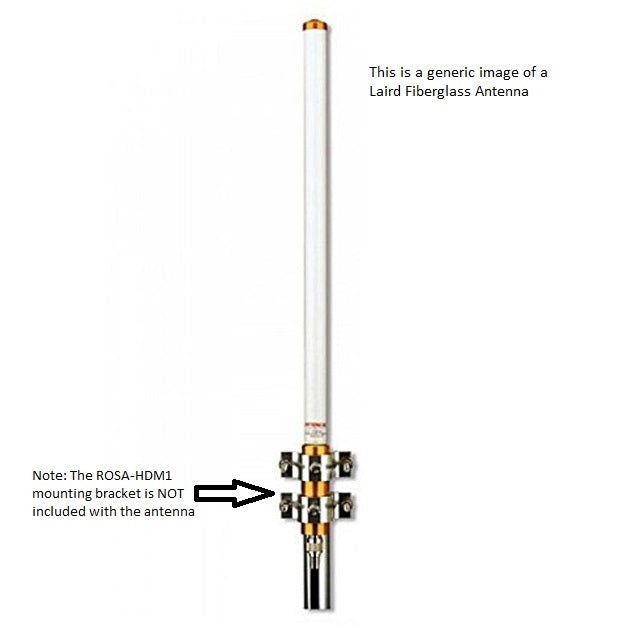

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*

The FG4700 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna.  It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are tuned for the 470-490 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.

FEATURES AND BENEFITS:

• Frequency: 470-490 MHz
• Gain: Unity/ 2.15 dBi
• Length: 25 inches
• 100% tested on a network analyzer before shipping to assure the best performance.
• Special UV Treated - stands up to the sun over years of service.
• Durable gold anodized sleeve and cap with N Female connector.
• Five Year Factory Warranty.
