ETRAB82118503: 821-896 Mhz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

$56.92
Unit price per

ETRAB821/18503

Shipping calculated at checkout.

ETRAB82118503: 821-896 Mhz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required

More Info Specifications Reviews

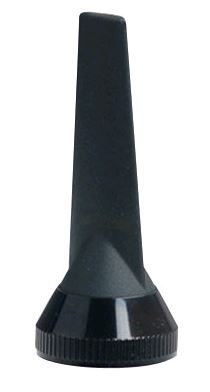

The Laird/Antenex ETRAB82118503 is a 2.7 inch high Black low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna requires a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 100 watts max power input and operates in 821-896 Mhz frequency range.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

More Information

The Laird / Antenex ETRAB821/18503 is an 2.7 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna does require a metal ground plane, is omnidirectional, offers 5.15 dBi dBi gain and accepts up to 100 watts max input power and operates in the 821-896 Mhz range.

Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.

FEATURES:

Frequency Range: 821-896 Mhz
Gain: 5.15 dBi
Polarization: Dual – Horizontal & Vertical
NMO - Mobile Mount
FIVE YEAR FACTORY WARRANTY

Specifications

SKU	ETRAB82118503
Manufacturer Part Number	ETRAB821/18503
Manufacturer	Laird
Antenna Category	3G/4G/LTE (698-2700 MHz)
Working Frequency	821-896 Mhz
Gain	5.15 dBi
Working Frequency 2	1850-1990 MHz
Antenna Style	Phantom Elite
Polarity	Dual Polarity
Bands	Multi
SISO or MIMO	SISO
Directional or Omni	Omnidirectional
Impedance	50 Ohm
VSWR: < X: 1	2.0:1
Height/Length (inches)	2.7
Height/Length (mm)	68.58
Operating Temp (celsius)	(-40 to 85)
Mount Style	NMO - Mobile Mount
Color	Black
Connector 1	NMO
OK for Outdoor Use	Yes
Vehicular	Yes
Ground Plane Required	Yes
Product Condition	New
