ETRAB4063: 406-430 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required
ETRAB4063
Shipping calculated at checkout.
ETRAB4063: 406-430 MHz Phantom Elite Antenna with NMO - Mobile Mount Metallic Ground Plane is Required
More InfoSpecifications Reviews

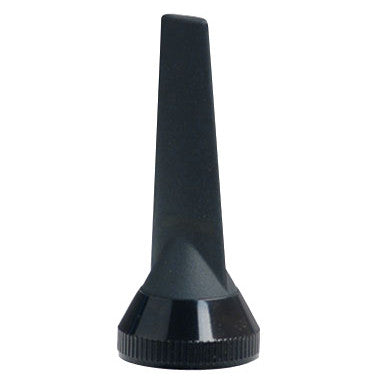

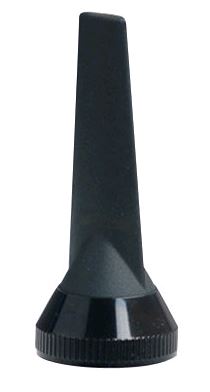

The Laird/Antenex ETRAB4063 is a 3.4 inch high Black low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna requires a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 150 watts max power input and operates in 406-430 MHz frequency range.
*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.
***This item is subject to an MOQ of 20 pcs***
More Information
The Laird / Antenex ETRAB4063 is an 3.4 inch high, Black, low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna does require a metal ground plane, is omnidirectional, offers 5.15 dBi dBi gain and accepts up to 150 watts max input power and operates in the 406-430 MHz range.
Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.
FEATURES:
- Frequency Range: 406-430 MHz
- Gain: 5.15 dBi
- Polarization: Dual – Horizontal & Vertical
- NMO - Mobile Mount
- FIVE YEAR FACTORY WARRANTY
We Also Recommend
G8XTI
G8XTI: Magnetic NMO Mount with 12 Ft. RG8X Cable & TNC-Male Installed Connector
$54.04
$54.04
$50.98
$50.98
View Details
LBT3400LS
NMO antenna mount bracket / Conductive Trunk Groove / Fender Bracket Mount - Stainless Steel to mount NMO kits. 3/4. Does not include screws.
$8.58
$8.58
View Details
Specifications
| SKU | ETRAB4063 |
|---|---|
| Manufacturer Part Number | ETRAB4063 |
| Manufacturer | Laird |
| Antenna Category | UHF (380-600 MHz) |
| Working Frequency | 406-430 MHz |
| Gain | 5.15 dBi |
| Center Tuned Frequency 1 | 415 MHz |
| Antenna Style | Phantom Elite |
| Polarity | Dual Polarity |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohm |
| Max Input Power (W) | 150 Watts |
| VSWR: < X: 1 | 2.0:1 |
| Height/Length (inches) | 3.4 |
| Height/Length (mm) | 86.36 |
| Thickness/Diameter (inches) | 1.44 inches |
| Thickness/Diameter (mm) | 36.5 mm |
| Weight (lbs) | 0.3 |
| Material | High Heat ABS |
| Operating Temp (celsius) | (-40 to 85) |
| Mount Style | NMO - Mobile Mount |
| Color | Black |
| Connector Type | Connector - Bottom |
| Connector 1 | NMO |
| OK for Outdoor Use | Yes |
| Vehicular | Yes |
| Ground Plane Required | Yes |
| Product Condition | New |
