B4505CNR: 450-470-MHz Mobile Base Coil NMO Mount Antenna-No Metalic Ground Plane Required

  • $86.09
    Unit price per

B4505CNR


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
25 $82.30
100 $78.81
250 $75.11
500 $74.13
Lead time:  Ships in 6-8 Weeks

Shipping calculated at checkout.

B4505CNR: 450-470-MHz Mobile Base Coil NMO Mount Antenna-No Metalic Ground Plane Required

More InfoSpecifications Reviews

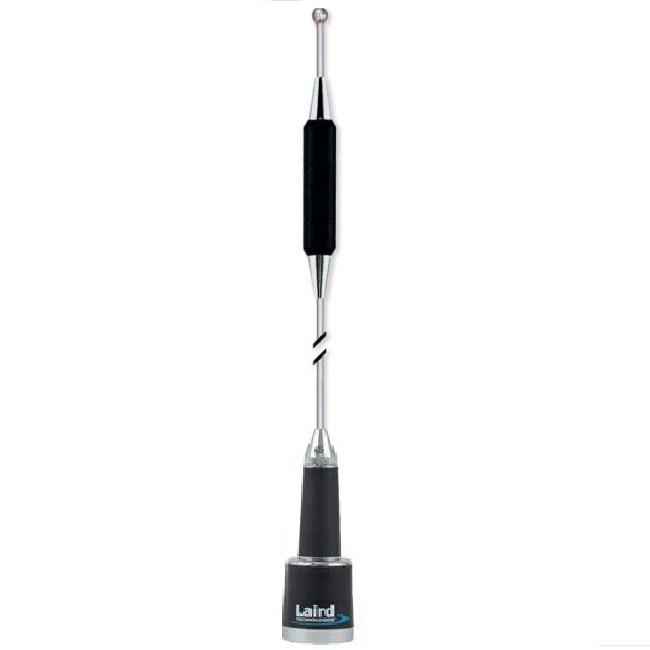

The Laird / Antenex B4505CNR is a 33 inch long, Chrome base coil, omnidirectional whip antenna for operation in the 450-470-MHz UHF band, with NMO base. No metal ground plane required.

Please note: This item has a minimum order qty of 8 pcs.

*This Antenna Requires a NMO Mount. Please click here to find all Thru-Hole NMO mounts or Magnetic NMO Mounts we carry.

This Antennas has Black Elastomer Spring.

***This item is subject to an MOQ of 5 pcs***



More Information

The Laird / Antenex B4505CNR is a 33 inch long, Chrome, base loaded mobile UHF whip antenna with NMO base and Rubber Boot. This antenna does NOT require a metal ground plane. It is omnidirectional and offers 5 dBi gain and accepts up to 100-200 watts max power and operates in the 450-470-MHz range.

Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long lasting value for demanding mobile radio communications.

FEATURES:

  • Frequency Range: 450-470-MHz
  • Gain: 5 dBi
  • Length: 33 inches
  • 100% tested on a network analyzer
  • FIVE YEAR FACTORY WARRANTY

Specifications

SKU B4505CNR
Manufacturer Part Number B4505CNR
Manufacturer Laird
Antenna Category UHF (380-600 MHz)
Working Frequency 450-470-MHz
Gain 5 dBi
Antenna Style Base Coil Antennas
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Horizontal/Azimuth Beamwidth 360
Spring Loaded No
Height/Length (inches) 33
Height/Length (mm) 838.2
Thickness/Diameter (inches) 1.375
Thickness/Diameter (mm) 34.93
Operating Temp (celsius) (-45 to 85)
Color Chrome
Connector Type Connector - Bottom
Connector 1 NMO
Includes Rubber Boot
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required No
Product Condition New
