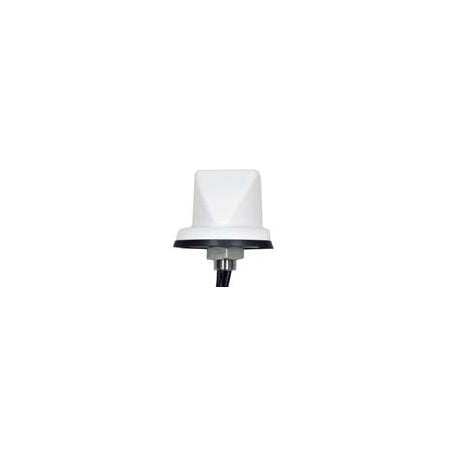

GPSHPMIMO-LTW: 4G LTE Element GPS MultiBand Transit Antenna

  • $187.89
    Unit price per

GPSHPMIMO-LTW


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $186.42
25 $182.83
100 $178.71
250 $169.77
500 $165.06
1000 $161.69
2500 $158.45
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

GPSHPMIMO-LTW: 4G LTE Element GPS MultiBand Transit Antenna

More InfoSpecifications Reviews

The Multiband GPS High Peformance Platform from PCTEL offers no tune, multi-band coverage in 700/800 MHz Public Safety, 800 MHz Cellular/SMR, 900 MHz GSM/ISM, 1800-2100 MHz GSM/PCS, 3G, 4G, 2.4/5.8 GHz WiFi and 2.3-5.8 GHz Public Safety and WiMAX broadband wireless frequencies. Manufactured with a metal 3/4-inch stud mount with slotted jam nut to provide single cable exit for easier installation and/or antenna replacement. The attractive low profile design allows for maximum installation flexibility without antenna orientation restrictions. The IP67 compliant design with custom overmolded gasket provides maximum protection against water or dust ingress under severe environmental conditions when installed on the roof of a vehicle. A UV resistant black or white housing options complement most vehicular aesthetic requirements while high performance, low loss cable and high quality connectors are utilized for maximum RF system efficiency.



More Information

The Multiband GPS High Peformance Platform from PCTEL offers no tune, multi-band coverage in 700/800 MHz Public Safety, 800 MHz Cellular/SMR, 900 MHz GSM/ISM, 1800-2100 MHz GSM/PCS, 3G, 4G, 2.4/5.8 GHz WiFi and 2.3-5.8 GHz Public Safety and WiMAX broadband wireless frequencies. Manufactured with a metal 3/4-inch stud mount with slotted jam nut to provide single cable exit for easier installation and/or antenna replacement. The attractive low profile design allows for maximum installation flexibility without antenna orientation restrictions. The IP67 compliant design with custom overmolded gasket provides maximum protection against water or dust ingress under severe environmental conditions when installed on the roof of a vehicle. A UV resistant black or white housing options complement most vehicular aesthetic requirements while high performance, low loss cable and high quality connectors are utilized for maximum RF system efficiency.


Specifications

SKU GPSHPMIMOLTW
Manufacturer Part Number GPSHPMIMO-LTW
Manufacturer PCTEL
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 MHz
Gain 2 dBi
Working Frequency 2 1710-2700 MHz
Gain 2 3 dBi
Working Frequency 3 2300-2700 MHz
Gain 3 4 dBi
Antenna Style Multi Element/Band Antenna
Bands Multi
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 50 W
Height/Length (inches) 2.8 in
Height/Length (mm) 71.12 mm
Width (inches) 5.2 in
Width (mm) 132.08 mm
Thickness/Diameter (inches) 5.2 in
Thickness/Diameter (mm) 132.08 mm
Material Plastic
Operating Temp (celsius) -40 to 80
Mount Style Permanent
Color White
Cable Length (inches) 204
Connector 1 SMA-Male
Ground Plane Required No
Product Condition New
