FG24008: 2400-2500 MHz, 8 dBi Outdoor Fiberglass Omni Base Station Antenna with Fixed N-Female Connector

  • $68.01
    Unit price per

FG24008


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $63.89
25 $61.11
100 $58.57
250 $55.85
500 $55.48
Factory lead time:  Ships in 4-6 Weeks

FG24008: 2400-2500 MHz, 8 dBi Outdoor Fiberglass Omni Base Station Antenna with Fixed N-Female Connector

More InfoDocumentsSpecifications Reviews

We do not recommend for new projects as it has limited availability. We recommend using RO2408NF



More Information

Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions.  Every Antenna Is Covered By A Five-Year Factory Warranty.

*Note: This antenna DOES NOT ship with mounting hardware.  We recommend the ROSA-HDM1 mounting bracket*

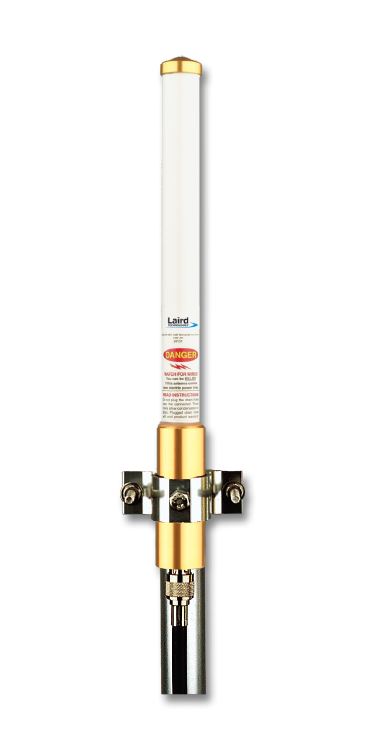

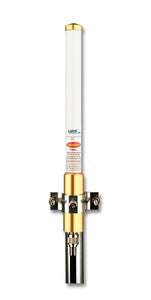

The FG24008 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna.  It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.

The radiating elements are tuned for the 2400-2500 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.

FEATURES AND BENEFITS:

  • Frequency: 2400-2500 MHz
  • Gain: 8 dBi
  • Length: 24.5 inches
  • 100% tested on a network analyzer before shipping to assure the best performance.
  • Special UV Treated - stands up to the sun over years of service.
  • Durable gold anodized sleeve and cap with N Female connector.
  • Five Year Factory Warranty.

Documents


Specifications

SKU FG24008
Manufacturer Part Number FG24008
Manufacturer Laird
Product Condition New
Antenna Style Laird Fiberglass
Antenna Style Laird Fiberglass
Antenna Category M2M 2.4-2.5 GHz WIFI / WLAN
Polarity Linear
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 2400-2500 MHz
Gain 1 8 dBi
Impedance 50
Max Input Power (W) 100
VSWR: < X: 1 2

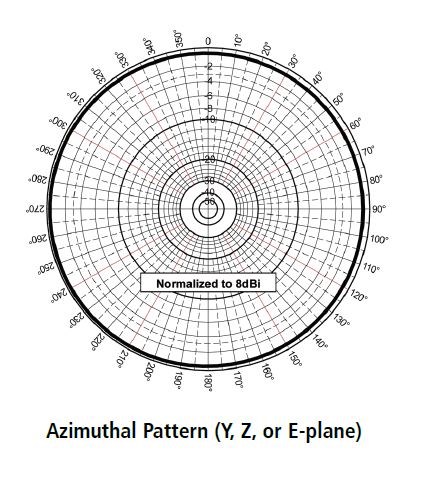

Horizontal/Azimuth Beamwidth 360

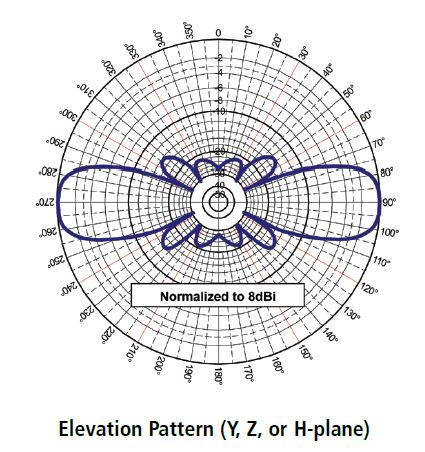

Vertical/Elevation Beamwidth 30
Height/Length (inches) 24.5
Height/Length (mm) 622
Weight (lbs) 0.5
Weight (grams) 227
Material Fiberglass
Operating Temp (celsius) (-40) to 85 C
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
IP Rating IP67
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
