CFS60383P-30NF: Low Pim Ceiling Mounted Omnidirectional antenna for 3G/4G/LTE 600-960 MHz and 1690-3800 MHz with N-Female Connector

  • $57.69
    Unit price per

CFS60383P-30NF


20 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $34.95
25 $32.04
100 $30.04
250 $28.27
500 $26.34
Factory lead time:  Ships in 8-10 Weeks

CFS60383P-30NF: Low Pim Ceiling Mounted Omnidirectional antenna for 3G/4G/LTE 600-960 MHz and 1690-3800 MHz with N-Female Connector

More InfoDocumentsSpecifications Reviews

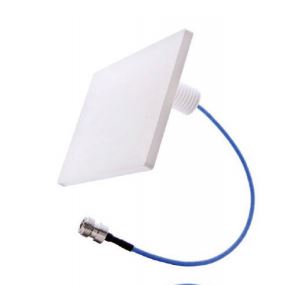

The CFS60383P-30NF is an ultra-low profile in-building ceiling mounted omni antenna for 700/800 MHz public safety bands, as well as all 3G/4G/LTE channels.  This unit is only 4.5 x 7 inches and less than 0.3 inches thick.  It carries a Low-Pim rating of < -156-157 dBc to minimize passive intermodulation and is tested to operate at 600-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX .  This is perfect for all 3G/4G/LTE and 5G specs from all carriers, including Verizon, AT&T, T-Mobile, Sprint, etc.  12 inch cable and N-Female connector are pre-attached.



More Information

CFS60383P-30NF MULTI-BAND OMNIDIRECTIONAL IN-BUILDING ANTENNA

The CFS60383P-30NF is a Low PIM indoor wideband omnidirectional low profile ceiling mount antenna. It is designed to provide pattern coverage that is optimized for indoor coverage requirements at 600-960 MHz, and 1690-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX frequency bands. The CFS69383P is applicable for environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. The surprisingly small size and extreme low profile enables maximum mounting flexibility while maintaining desired in-building aesthetics.  Equivalent to HUBER+SUHNER Sencity Optima Antenna: 1399.17.0114

FEATURES

  • Low profile aesthetically neutral housing
  • Mounts directly and easily to ceiling tile
  • Performance optimized using Laird proprietary RF optimization tools
  • Supports AWS-3 Frequency Band
  • Low Pim Cable & N-Female

APPLICATIONS

  • Small Cells
  • iDAS
  • Meeting Rooms
  • Libraries
  • Offices
  • Retail Malls
  • Hotels
  • Bus Terminals & Train Stations
  • Museums
  • Other In-Building Areas

Documents


Specifications

SKU CFS60383P30NF
Manufacturer Part Number CFS60383P-30NF
Manufacturer Laird
Product Condition New
Antenna Style Ceiling Mount
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Frequency 1 698-960 MHz
Gain 1 3.6 dBi
Frequency 2 1350-1550 MHz
Gain 2 5.2 dBi
Frequency 3 1690-2170 MHz
Gain 3 3.8 dBi
Frequency 4 2300-2700 MHz
Gain 4 5.9 dBi
Frequency 5 3300-3800
Gain 5 4.1 dBi
Impedance 50 Ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2.1
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 7.1
Height/Length (mm) 180.3
Width (inches) 4.6
Width (mm) 117.2
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 7.6
Operating Temp (celsius) -40 TO +70
Mount Style Flush
Color White
Connector Type Connector - Rear
Connector 1 N-Female
OK for Outdoor Use No
Vehicular No
Ground Plane Required No
