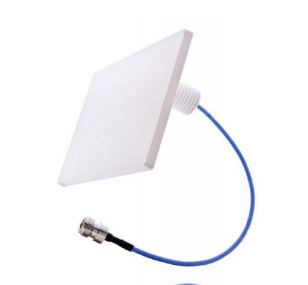

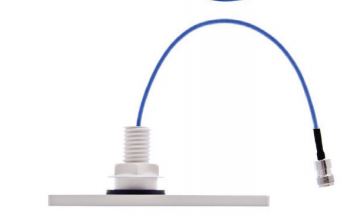

CFS60383P30D43F: Low Pim Ceiling Mounted Omnidirectional antenna with working Frequency 600-960 MHz and 1690-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX and 4.3-10 DIN female connector

  • $62.81
    Unit price per

CFS60383P-30D43F


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $58.54
25 $54.80
100 $50.77
Lead time:  Ships in 8-10 Weeks

Shipping calculated at checkout.

CFS60383P30D43F: Low Pim Ceiling Mounted Omnidirectional antenna with working Frequency 600-960 MHz and 1690-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX and 4.3-10 DIN female connector

More InfoDocumentsSpecifications Reviews

CFS60383P30D43F: Low Pim Ceiling Mounted Omnidirectional antenna with working Frequency 600-960 MHz and 1690-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX and 4.3-10 DIN female connector

***This item is subject to an MOQ of 10 pcs***



More Information

MULTI-BAND OMNIDIRECTIONAL IN-BUILDING ANTENNA

The widespread use of cellular phones and wireless network applications inside buildings has increased the need for antenna systems that can provide considerable gain over traditional dipole antennas. Laird Technologies’ in-building wireless antennas are particularly applicable in environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. Their surprisingly small size and low profile allow the antennas to be hidden almost anywhere, providing an invisible solution for most applications.

The CFS60383P is a Low PIM indoor wideband omnidirectional low profile ceiling mount antenna. It is designed to provide pattern coverage that is optimized for indoor coverage requirements at 600-960 MHz, and 1690-3800 MHz for the GSM, DCS, UMTS, AWS-3 and LTE/WiMAX frequency bands. The CFS69383P is applicable for environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. The surprisingly small size and extreme low profile enables maximum mounting flexibility while maintaining desired in-building aesthetics.

FEATURES

  • Low profile aesthetically neutral housing
  • Mounts directly and easily to ceiling tile
  • Performance optimized using Laird proprietary RF optimization tools
  • Supports AWS-3 Frequency Band



APPLICATIONS

  • Small Cells
  • iDAS
  • Meeting Rooms
  • Libraries
  • Offices
  • Retail Malls
  • Hotels
  • Bus Terminals & Train Stations
  • Museums
  • Other In-Building Areas

Documents


Specifications

SKU CFS60383P30D43F
Manufacturer Part Number CFS60383P-30D43F
Manufacturer Laird
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 698-960 MHz
Gain 3.6 dBi
Working Frequency 2 1350-1550 MHz
Gain 2 5.2 dBi
Working Frequency 3 1690-2170 MHz
Gain 3 3.8 dBi
Working Frequency 4 2300-2700 MHz
Gain 4 5.9 dBi
Working Frequency 5 3300-3800
Gain 5 4.1 dBi
Antenna Style Ceiling Mount
Polarity Linear
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
Max Input Power (W) 50 W
VSWR: < X: 1 2.1
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 7.1
Height/Length (mm) 180.3
Width (inches) 4.6
Width (mm) 117.2
Thickness/Diameter (inches) 0.3
Thickness/Diameter (mm) 7.6
Operating Temp (celsius) -40 TO +70
Mount Style Flush
Color White
Connector Type Connector - Rear
Connector 1 4.3-10 DIN Female
Product Condition New
