AWZ-PAV69278PO-30D43F: Laird Multiband Directional Panel Antenna 698-2700 MHz LTE with 4.3-10 DIN Female Connector
AWZ-PAV69278PO-30D43F
AWZ-PAV69278PO-30D43F: Laird Multiband Directional Panel Antenna 698-2700 MHz LTE with 4.3-10 DIN Female Connector
More InfoDocumentsSpecifications ReviewsAWZ-PAV69278PO-30D43F is an LTE, multiband, low PIM, directional panel antenna operating in 698-2700 MHz frequency range with a 4.3-10 DIN Female connector. This antenna is designed to provide high level LTE performance in defined coverage zones. This is commonly used for indoor and outdoor networks, wireless machines, automatic meter reading, and security.
More Information
AWZ-PAV69278PO-30D43F is an LTE, multiband, low PIM, directional panel antenna operating in 698-2700 MHz frequency range with a 4.3-10 DIN Female connector. This antenna is designed to provide high level LTE performance in defined coverage zones. This is commonly used for indoor and outdoor networks, wireless machines, automatic meter reading, and security.
Features:
- Frequency: 698-2700 MHz
- Gain: 8.8 dBi
- Environmental Rating: Outdoor - IP67
- Power: 50 Watts Max Input
- Wind Load: 136 MPH
- ESD Protection: DC Grounded

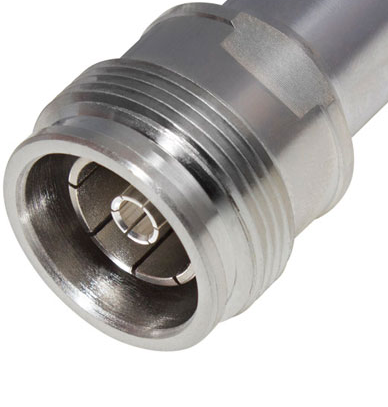

- Connector: 4.3-10 DIN Female
Documents
Specifications
| SKU | AWZPAV69278PO30D43 |
|---|---|
| Manufacturer Part Number | AWZ-PAV69278PO-30D43F |
| Manufacturer | Laird |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 698-806 MHz |
| Gain | 7.6 dBi |
| Working Frequency 2 | 824-960 MHz |
| Gain 2 | 7.8 dBi |
| Working Frequency 3 | 1710-1880 MHz, 1850-1990 MHz, 1910-2170 MHz |
| Gain 3 | 8.8 dBi |
| Working Frequency 4 | 2300-2500 MHz |
| Gain 4 | 8.7 dBi |
| Working Frequency 5 | 2500-2700 MHz |
| Gain 5 | 7.8 dBi |
| Antenna Style | Panel Antenna |
| Polarity | Vertical |
| Bands | Multi |
| SISO or MIMO | SISO |
| Impedance | 50 Ohm |
| Max Input Power (W) | 50 |
| VSWR: < X: 1 | 2.0:1 |
| Front/Back Ratio (Db) | 10/25 dB |
| Horizontal/Azimuth Beamwidth | 75/63 |
| Vertical/Elevation Beamwidth | 64/51 |
| Height/Length (inches) | 9.82 |
| Height/Length (mm) | 249.4 |
| Width (inches) | 9.8 |
| Width (mm) | 248.5 |
| Thickness/Diameter (inches) | 2.41 |
| Thickness/Diameter (mm) | 61.3 |
| Weight (lbs) | 1.35 |
| Weight (grams) | 620 |
| Color | White |
| Cable Length (inches) | 12 |
| Cable Length (mm) | 300 |
| Connector 1 | 4.3-10 DIN Female |
| IP Rating | IP67 |
| OK for Outdoor Use | Yes |
| Vehicular | No |
| Ground Plane Required | No |
| Product Condition | New |
