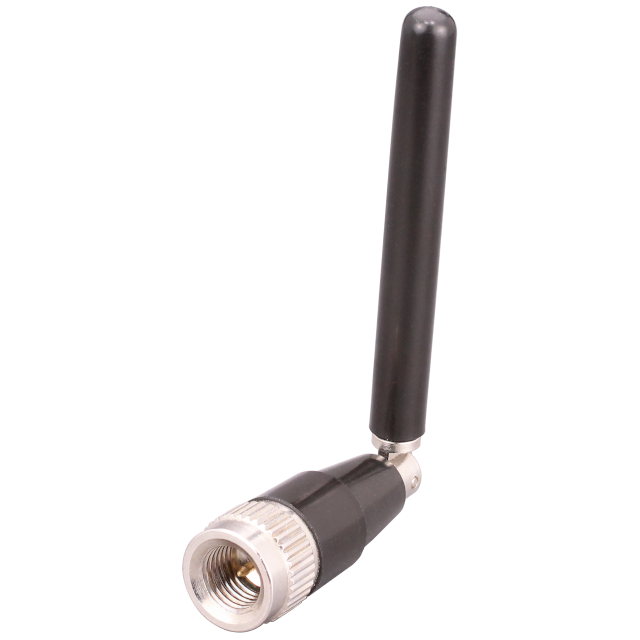

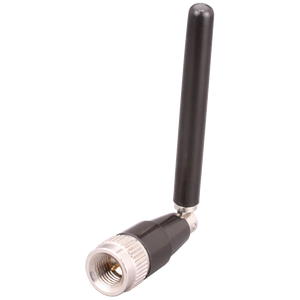

ANT-LTE-MON-SMA: 6-Band LTE Monopole, Antenna, SMA

  • $9.16
    Unit price per

ANT-LTE-MON-SMA


109 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
10 $8.67
25 $8.19
100 $7.78
250 $7.72
500 $7.64
1000 $7.36
Lead time for qty above 109:  Ships in 18-20 Weeks

Shipping calculated at checkout.

ANT-LTE-MON-SMA: 6-Band LTE Monopole, Antenna, SMA

More InfoDocumentsSpecifications Reviews

6-Band LTE Monopole, Antenna, SMA



More Information

The Linx MON Series LTE antenna is a high-end design that provides excellent performance in a tiny package. It offers higher efficiency at the lower frequency bands on a smaller ground plane than competitive products. This equates to a better range in smaller product size, saving valuable real estate in the design. The tilt and swivel joint design allows for the antenna to be positioned for optimum performance in the product or folded against the enclosure for shipping or transport. This durable and versatile design also reduces any damage from impact force compared to a fixed design.

This combination of high performance and small size makes the MON Series ideal for small devices, particularly when used for the Internet of Things (IoT) and with the CAT-M1 and NB-IoT standards. Also covering all major bands used by LTE, 3G and 4G cellular technologies, the MON Series is backed by the thorough testing and validation and rigorous quality control that Linx is known for.

Features

  • Covers all common 4G/3G/2G and LTE bands
  • Tilt / Swivel Joint for optimum positioning
  • Small, unobtrusive profile

Documents


Specifications

SKU ANTLTEMONSMA
Manufacturer Part Number ANT-LTE-MON-SMA
Manufacturer Linx Technologies
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 5.8 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 3.7dBi
Working Frequency 3 2300 – 2400 MHz
Gain 3 2.0 dBi
Working Frequency 4 2500 – 2700 MHz
Gain 4 1.4 dBi
Working Frequency 5 3400 – 3600 MHz
Gain 5 5.2 dBi
Working Frequency 6 3600 – 3800 MHz
Gain 6 6.1 dBi
Antenna Style Monopole Antenna
Polarity Linear
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 15
Height/Length (inches) 2.8
Height/Length (mm) 71.12
Width (inches) .39
Width (mm) 10
Thickness/Diameter (inches) 0.21
Thickness/Diameter (mm) 5.2
Weight (lbs) 0.017
Weight (grams) 8
Operating Temp (celsius) -40°C to +70°C
Mount Style Permanent
Color Black
Connector Type SMA-Male
Connector 1 SMA-Male
Ground Plane Required No
Product Condition New
