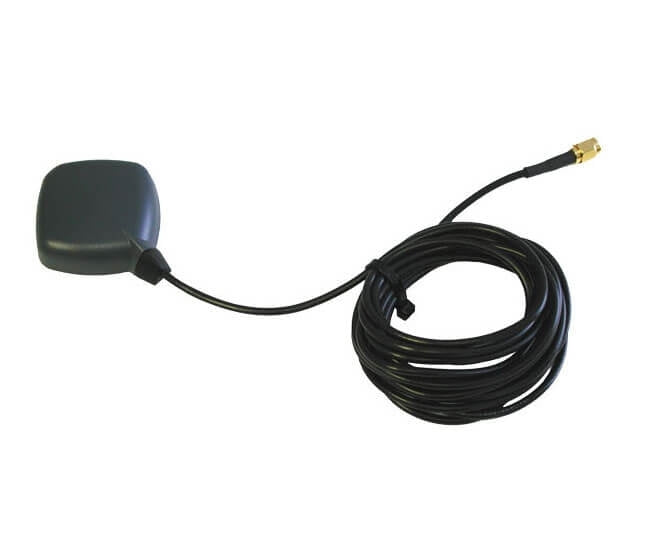

8117D-2.2M-FAKRA-C: PCTEL 8117D GPS/GLONASS, 2.2M RG-174 Size, FAKRA C Connector

  • $68.72
    Unit price per

8117D-2.2M-FAKRA-C


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $66.50
25 $63.43
100 $60.63
250 $57.26
500 $54.97
Lead time:  Ships in 6-8 Weeks

Shipping calculated at checkout.

8117D-2.2M-FAKRA-C: PCTEL 8117D GPS/GLONASS, 2.2M RG-174 Size, FAKRA C Connector

More InfoDocumentsSpecifications Reviews

The 8117D GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies. Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The 8117D antenna features 28 dB gain low noise amplifier and a SAW filter. With 2.7 to 5 volt operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systems available.

Features

  • GPS L1 & GLONASS L1 Frequencies
  • Voltage range 2.5 – 5 V
  • LNA 28 dB gain typical
  • Low noise figure 1.5 dB


More Information

The 8117D GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies. Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The 8117D antenna features 28 dB gain low noise amplifier and a SAW filter. With 2.7 to 5 volt operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systems available.

Features

  • GPS L1 & GLONASS L1 Frequencies
  • Voltage range 2.5 – 5 V
  • LNA 28 dB gain typical
  • Low noise figure 1.5 dB

Documents


Specifications

SKU 8117D22MFAKRAC
Manufacturer Part Number 8117D-2.2M-FAKRA-C
Manufacturer PCTEL
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Ground Plane Required No
Product Condition New
