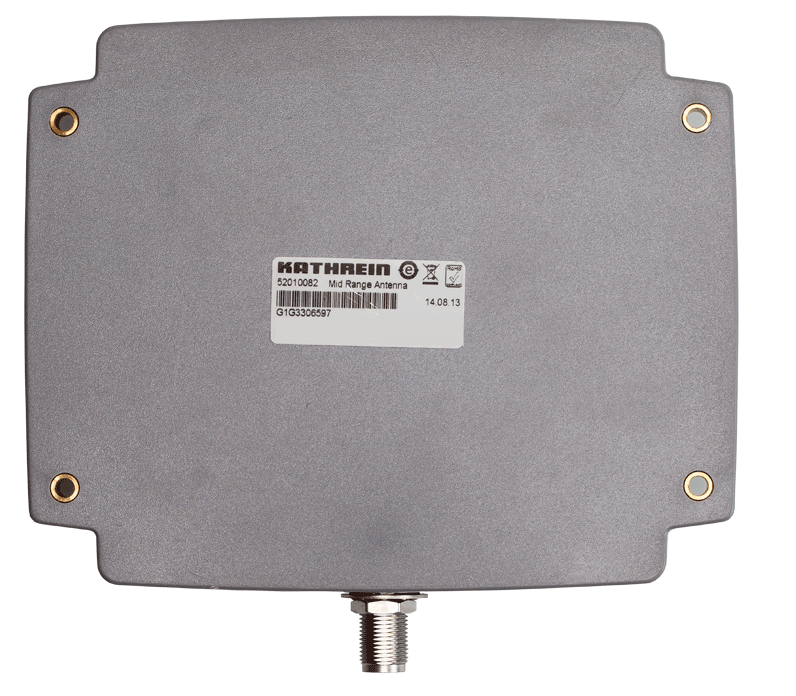

52010083: Mid Range RFID UHF Antenna: (FCC) with TNC-Female connector and 2.5 dBiC

  • $173.29
    Unit price per

52010083


8 Can ship immediately
Factory lead time:  Ships in 6-8 Weeks

52010083: Mid Range RFID UHF Antenna: (FCC) with TNC-Female connector and 2.5 dBiC

More InfoDocumentsSpecifications Reviews

The mid-range antenna (MIRA) was developed for applications in range between the near and far field. The focus of the compact design was for integration in space-critical applications. Reading distances of up to 5 m are still possible with dimensions of 143.8 x 156 mm. In this case, however, the reading range is very wide. In most cases the MIRA is used for reading distances up to 2 m, for which it features sufficient selectivity. Therefore, this antenna design is especially suitable for applications in the so-called transition area with different tag types.



More Information

Features:

  • Compact design and small dimensions
  • Typical read range*: up to 2 m (* depending on tag properties, environment and requirements)
  • Various transponder types possible to use
  • Integration possible in applications where space is limited
  • Use in transition range between near field and far field application
  • Suitable for use in industrial environments, suitable for bulk and single tag applications
  • High IP67 degree of protection, suitable for outdoor use

Documents


Specifications

SKU 52010083
Manufacturer Part Number 52010083
Manufacturer Kathrein
Product Condition New
Antenna Category RFID 902-928 MHZ FCC
Bands Single
IP Rating IP67
Polarity Circular
Gain 2.5 dBiC

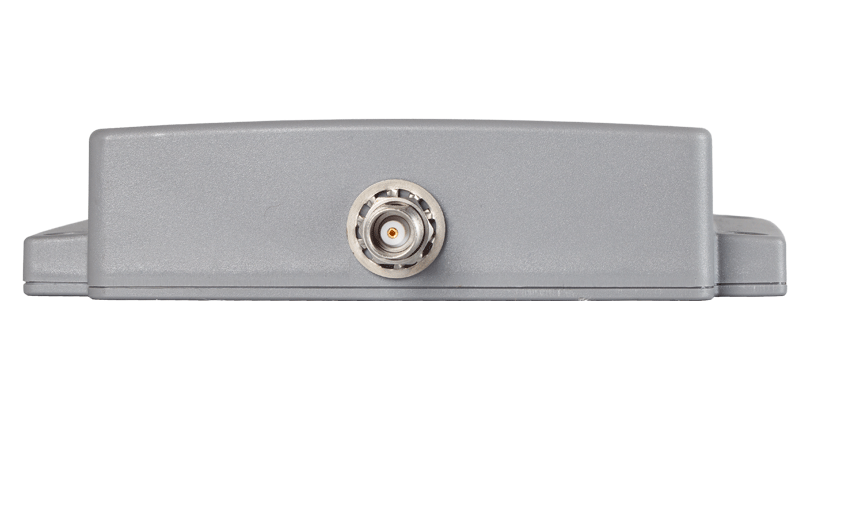

Connector 1 TNC-Female
Operating Temp (celsius) -20 to +55
