3951D-HR-45cm-N9: PCTEL 3951D-HR, 45cm RG-174, N female Bulkhead

  • $60.75
    Unit price per

3951D-HR-45CM-N9


0 in stock. Subject to factory lead time
Volume Price Breaks
Quantity: Unit Price:
10 $58.79
25 $56.08
100 $53.60
250 $50.63
500 $48.60
Lead time:  Ships in 6-8 Weeks

Shipping calculated at checkout.
3951D-HR-45cm-N9: PCTEL 3951D-HR, 45cm RG-174, N female Bulkhead

3951D-HR-45cm-N9: PCTEL 3951D-HR, 45cm RG-174, N female Bulkhead

More InfoDocumentsSpecifications Reviews

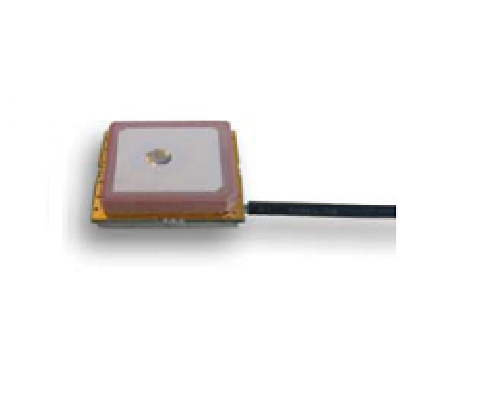

The 3951D-HR Embedded GPS Antenna provides 25 dB gain, superior out-of-band rejection performance and is the optimum choice for embedded GPS Tracking and Timing applications with high RF fields. It features a precision tuned custom ceramic patch element for maximum signal reception, 15 KV ESD circuit protection, a multi-stage LNA circuit and dual high rejection SAW filters. This enables the 3951D-HR to provide a reliable and clear GPS signal while minimizing loss-of-lock, even when conditions are less than ideal.

Features

• High out-of-band rejection for stand-alone or mobile applications where interference is a concern and performance is critical

• Innovative dual SAW filter design

• Low current draw: 7.5 mA @ 3.3 VDC

• 15 KV ESD circuit protection



More Information

The 3951D-HR Embedded GPS Antenna provides 25 dB gain, superior out-of-band rejection performance and is the optimum choice for embedded GPS Tracking and Timing applications with high RF fields. It features a precision tuned custom ceramic patch element for maximum signal reception, 15 KV ESD circuit protection, a multi-stage LNA circuit and dual high rejection SAW filters. This enables the 3951D-HR to provide a reliable and clear GPS signal while minimizing loss-of-lock, even when conditions are less than ideal.

Features

• High out-of-band rejection for stand-alone or mobile applications where interference is a concern and performance is critical

• Innovative dual SAW filter design

• Low current draw: 7.5 mA @ 3.3 VDC

• 15 KV ESD circuit protection


Documents


Specifications

SKU 3951DHR45CMN9
Manufacturer Part Number 3951D-HR-45CM-N9
Manufacturer PCTEL
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Ground Plane Required No
Product Condition New
