10x10 inch Circularly Polarized Flush Mount RFID Antenna - 12 inch Pigtail RPTNC-F - FCC

  • $135.00
    Unit price per

R9029F12RTF


178 Can ship immediately
Volume Price Breaks
Quantity: Unit Price:
100 $84.00
250 $78.00
Factory lead time:  Ships in 10-12 Weeks

10x10 inch Circularly Polarized Flush Mount RFID Antenna - 12 inch Pigtail RPTNC-F - FCC

More InfoDocumentsSpecifications Reviews

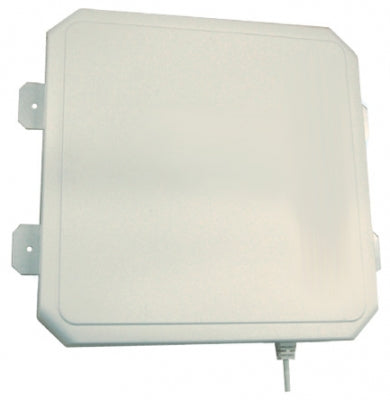

The R9029F12RTF is a 10x10 inch Circularly Polarized RFID panel Antenna that operates in the FCC band of 902-928 Mhz and offers 9 dBic gain., The unit has 4 side mounting flanges and thus is perfect for low-profile / flush mounting. The antenna is terminated with a 12 inch long bottom-entry Pigtail and RPTNC-Female Connector. Equivalent to ALR-8696-C.


More Information

Circularly Polarized RFID Antenna, 902-928 Mhz, 9 dBic, 10 x 10 inch, 12 inch Pigtail with RPTNC-Female Connector. (4) side mounting flanges for "flush" to the wall installation.

Documents


Specifications

SKU R9029F12RTF10PK
Manufacturer Part Number R9029F12RTF
Manufacturer RFMAX
Product Condition New
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating 54
Polarity Circular
Gain 9
Horizontal/Azimuth Beamwidth 70
Vertical/Elevation Beamwidth 70
Connector Type Cable - Bottom Entry
Connector 1 RP TNC-Female
Cable Type LMR195
Cable Length (inches) 12
Cable Length (mm) 305
Height/Length (inches) 10.2
Height/Length (mm) 259
Operating Temp (celsius) -30 to +70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.75
Weight (grams) 1130
Material ABS Housing
Color White
Mount Style Flush
