S8658WPL-T-01 10x10 Inch Circular Polarity RFID Panel Antenna - RPTNC-M - VESA Mount

  • $179.00
    Unit price per

S8658WPL-T-01


15 Can ship immediately
Factory lead time:  Ships in 8-10 Weeks

S8658WPL-T-01 10x10 Inch Circular Polarity RFID Panel Antenna - RPTNC-M - VESA Mount

More InfoDocumentsSpecifications Reviews

Laird S8658WPL-T-01 10x10 inch RFID panel antenna with VESA mount for ETSI 865-956 MHz with 6dBi gain and 72 inch side entry coax & RPTNC male connector.


More Information

The Laird S8658WPL-T-01 (ETSI) VESA mount antenna is a circularly polarized panel antenna that provides reception and transmission of signals in the 865-960 MHz frequency band. Laird's industry renowned design methodology achieves maximum efficiency and performance across the entire frequency band.

Both VSWR and axial ratios are both excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted. An optional articulating mount allows either wall or mast mounting.  A variety of connector types are also available.

FEATURES

Low profile / VESA mount
Extremely low VSWR and axial ratio
Wide band
Weather and UV resistant radome
Wide range of connector and cable options
Left hand and right hand circularly polarized versions

APPLICATIONS

Warehouses
Distribution centers
Airports and hospitals
Transit terminals
Conveyer belts




Documents


Specifications

SKU S8658WPLT01
Manufacturer Part Number S8658WPL-T-01
Manufacturer Laird
Product Condition New
Antenna Category RFID 865-928 MHZ Wideband
Bands Single
Polarity Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 65 degree
Vertical/Elevation Beamwidth 65 degree
Connector Type Cable - Bottom Entry

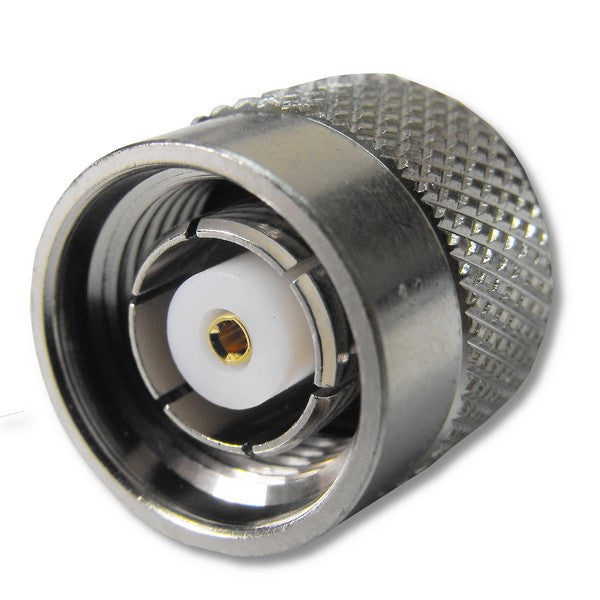

Connector 1 RP TNC-Male
Cable Length (inches) 72
Cable Length (mm) 1829
Height/Length (inches) 10.2
Height/Length (mm) 259.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 2.5
Weight (grams) 1136
Material Polycarbonate
Color White
Mount Style 4 x Threaded holes M5 at 100 mm VESA spacing
