White NMO shot-glass Antenna For P25 (700/800 Mhz) 900 Mhz, 4G/5G Cellular or WiFi. RSGW-600/71-3-NMO

RSGW-600/71-3-NMO
¡Solo 43 restantes!
Plazo de entrega para cantidades superiores a 43 :  Ships in 10-12 Weeks
Los gastos de envío se calculan en la pantalla de pagos.

White NMO shot-glass Antenna For P25 (700/800 Mhz) 900 Mhz, 4G/5G Cellular or WiFi. RSGW-600/71-3-NMO

More InfoDocumentsSpecifications Reviews

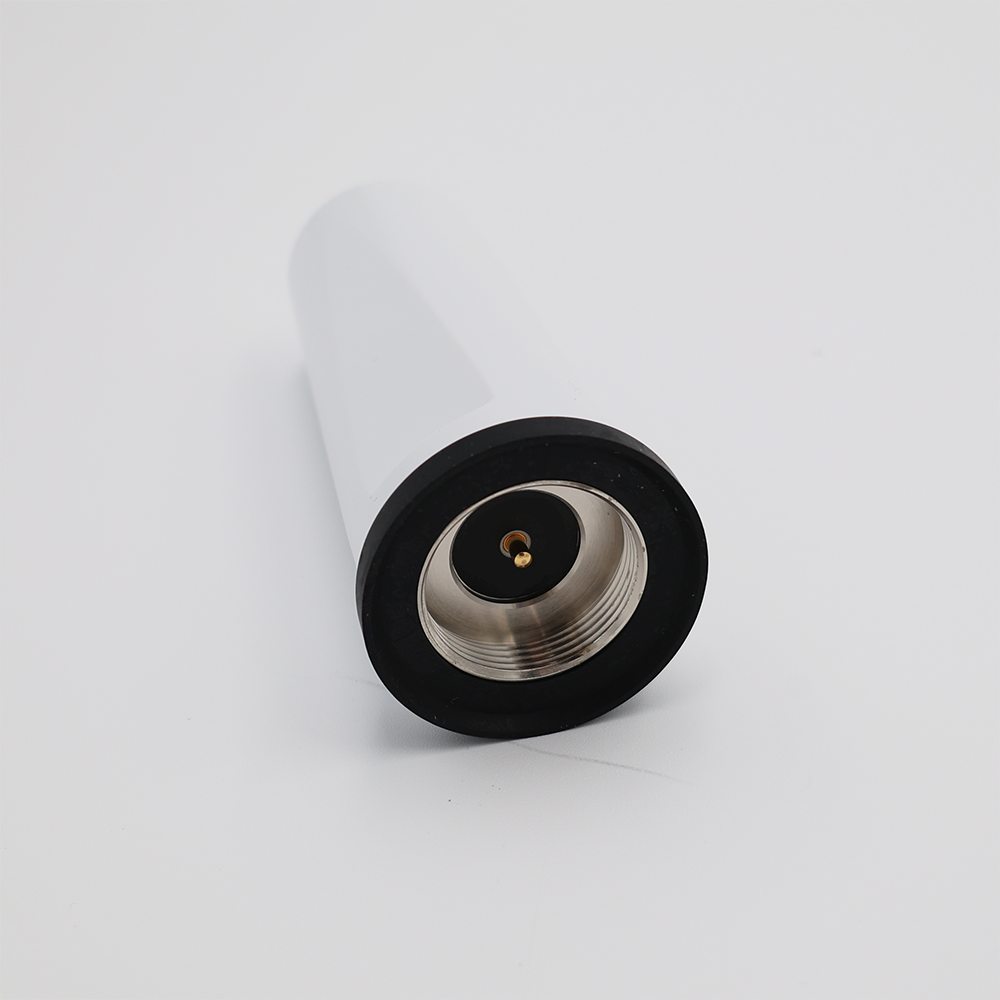

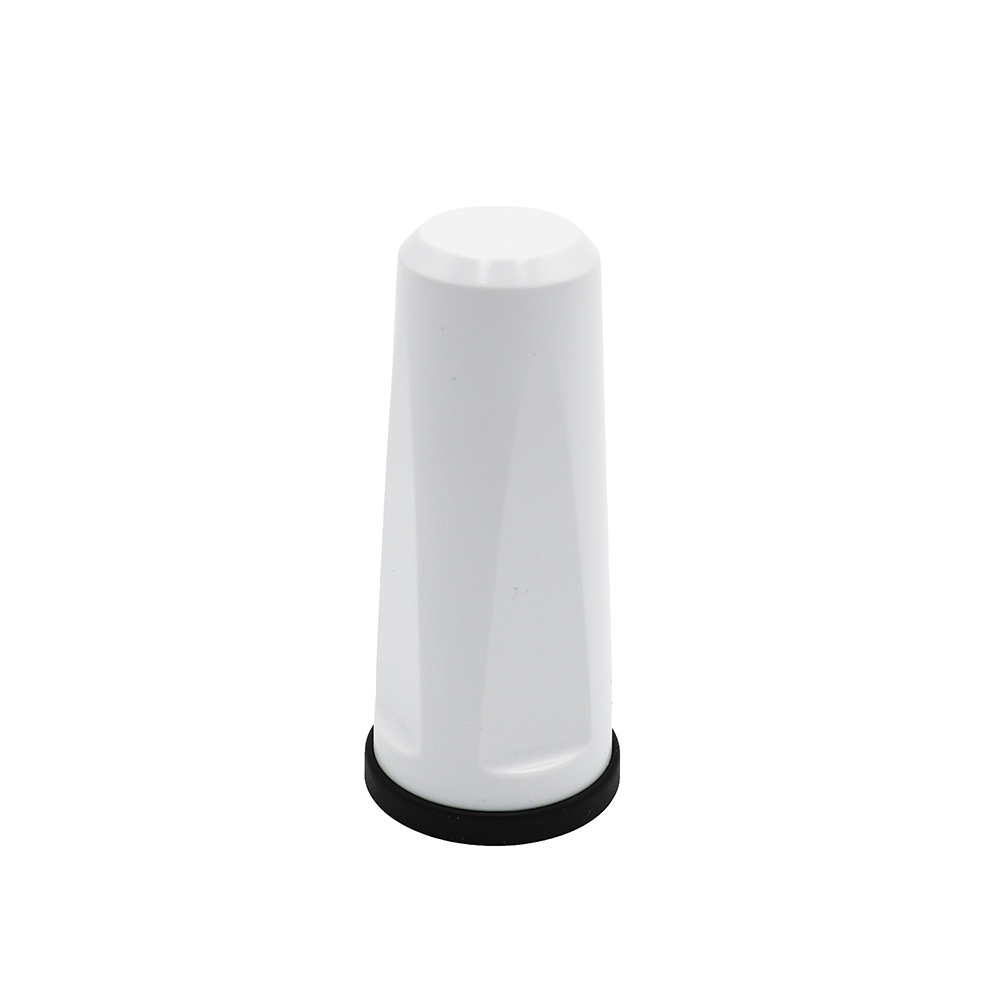

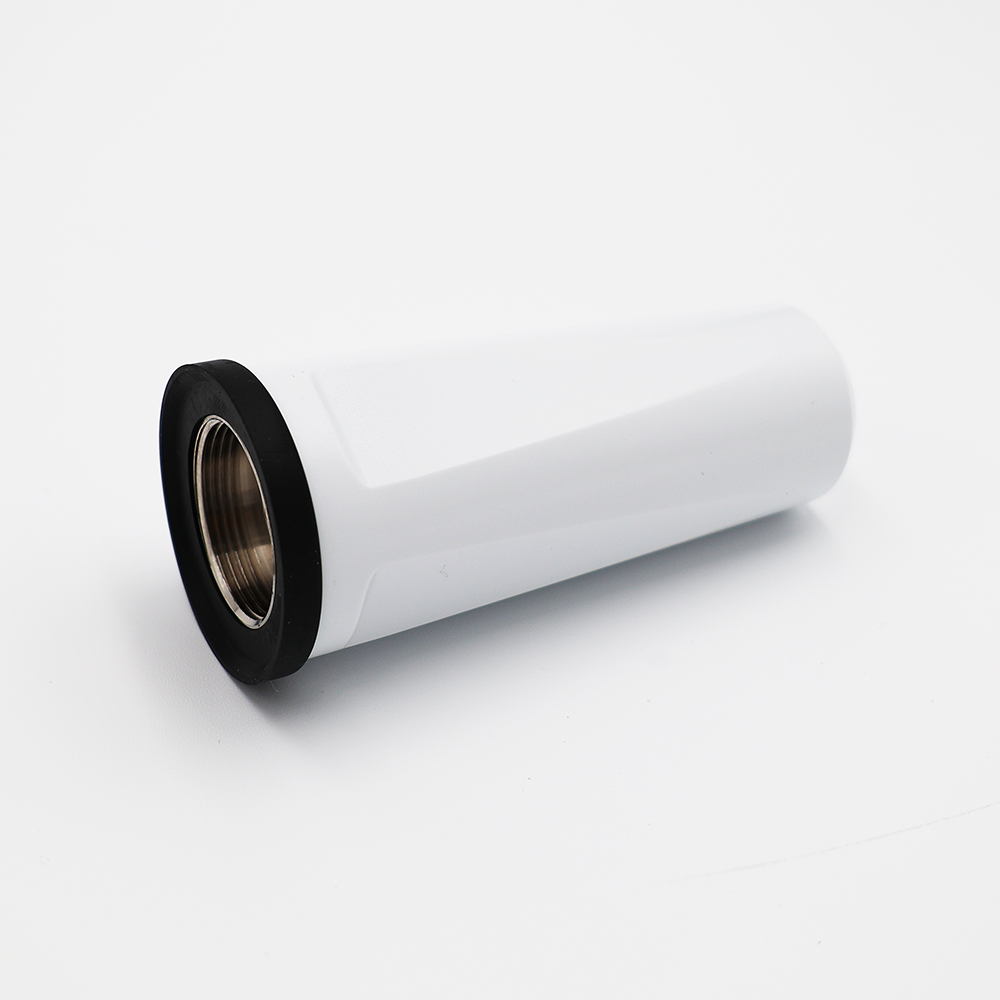

The RFMAX # RSGW-600/71-3-NMO is a WHITE shot-glass style NMO antenna that is tested and approved for use on the following frequency bands:

  • P25 Public Safety Band: 700/800 Mhz
  • ISM - Industrial Communication:  800/900 Mhz
  • FirstNet, 3G/4G/LTE & 5G Cellular: 600-6000 MHz
  • WiFi / WLAN: 2.4-5.9 GHz
  • IP67 Outdoor Rated with Omni-directional radiation pattern
  • Average peak gain: 617-960 MHz 2dBi, 695-5925 MHz 5.5dBi
  • Average power rating 45W
  • Size Dia. 1.61” (40.9mm) Height 3.77” (95.9mm)
  • White Radome

More Information

Applications

  • P25 Public Safety (700/800 Mhz) VSWR <2.3:1
  • ISM Industrial Comm (800/900 Mhz) VSWR <2.3:1
  • First Net & Cellular (600-6000 Mhz) VSWR 600-900: <2.3:1 & 1800-2700: <1.8:8
  • WiFi (2.4-5.9 Ghz) VSWR <1.8:8

Documents

RSGW4G5GNMO Datasheet

También recomendamos

Orificio pasante NMO de alta frecuencia, cable LMR195 de 17 pies, conector macho SMA instalado, orificio de ¾, cromado | RNMOT-195-SSM-C-17I
RNMOT-195-SSM-C-17I
Orificio pasante NMO de alta frecuencia, cable LMR195 de 17 pies, conector macho SMA instalado, orificio de ¾, cromado | RNMOT-195-SSM-C-17I
View Details
Soporte NMO magnético de alta resistencia para condiciones de alta vibración, cable 195 de 12 pies con conector macho SMA instalado, con PESTAÑA DE EXTRACCIÓN y alivio de tensión | RNMOM-195-SSM-B-12I-ST
In Stock
RNMOM-195-SSM-B-12I-ST
Soporte NMO magnético de alta resistencia para condiciones de alta vibración, cable 195 de 12 pies con conector macho SMA instalado, con PESTAÑA DE EXTRACCIÓN y alivio de tensión | RNMOM-195-SSM-B-12I-ST

View Details

Specifications

SKU RSGW600713NMO
Manufacturer Part Number RSGW-600/71-3-NMO
Manufacturer RFMAX
Antenna Category 4G/LTE/5G (600-7125 MHz)
Antenna Style Low Profile Antenna
Polarity Vertical
Max Input Power (W) 45 Watts
Weight (lbs) 0.17 Lbs
Weight (grams) 76 grams
Operating Temp (celsius) -40° to +85° C
Color White
Connector 1 NMO
IP Rating IP67
OK for Outdoor Use Yes
Vehicular Yes
Product Condition New
